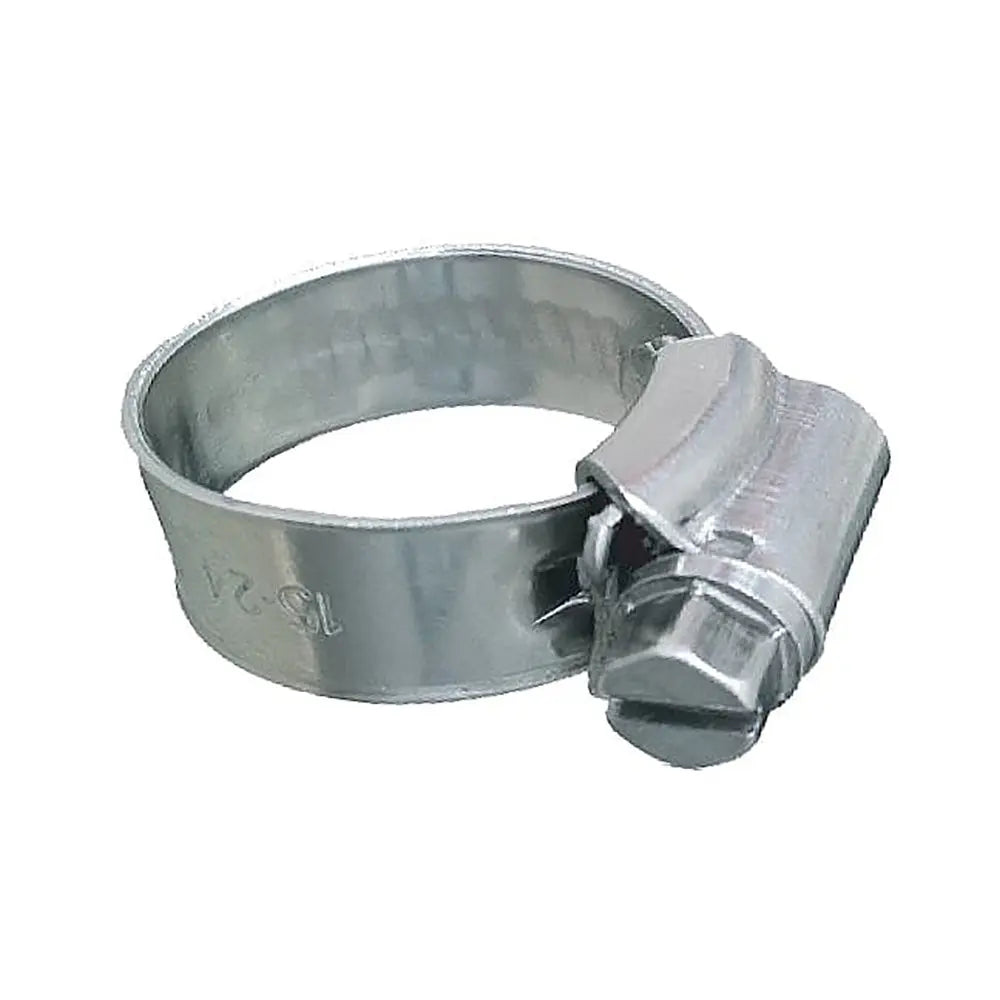

Trident Marine 316 Stainless Steel Non-Perforated Worm Gear Hose Clamp - SAE Size 8, 3/8 Inch Band, 5/8 to 15/16 Inch Clamping Range, Pack of 10

316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 5/8"15/16" Clamping Range - 10-Pack - SAE Size 8

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact HD NON-PERF Worm Gear Hose Clamp. The 9.7 mm (0.382) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

• The screw head is 7mm
• Long service life and safety for most general-purpose hose applications and connections

Recommendations:

• Measure hose O.D. before selecting clamp size for proper fit
• Double clamp on each hose end for critical applications

Construction:

• Band Housing: 316 Stainless Steel 9.7 mm wide band 0.8mm thick
• Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

• SAE Size: 8
• Hose Inner Diameter: (inch) 3/8" 1/2"
• Clamping Range: (inch) 5/8" 15/16" / (mm) 15-24
• Recommended Torque Inch lbs: 25-35

The Trident Marine 316 Stainless Steel Non-Perforated Worm Gear Hose Clamp is designed for high-performance marine and industrial applications. Crafted from premium AISI 316 stainless steel, this clamp offers exceptional tensile strength and corrosion resistance, making it ideal for demanding environments. Its 3/8 inch wide band is smooth and non-perforated, with rolled edges that help prevent hose damage while providing secure clamping force. The clamp's compact, one-piece housing measures approximately 0.55 inches wide, delivering a high clamping force rating that ensures reliable connections across various hose sizes.

This clamp features a 7mm screw head, allowing for easy tightening and adjustment using standard tools. Its design emphasizes durability and long service life, making it suitable for most general-purpose hose applications where safety and reliability are paramount. For critical connections, it is recommended to double clamp to ensure maximum security. Proper hose measurement prior to installation ensures optimal fit and performance, reducing the risk of leaks or disconnections during operation.

Constructed with a 316 stainless steel band housing and screw drive, this clamp combines strength with corrosion resistance, ideal for marine environments, automotive, and industrial uses. The clamping range spans from 5/8 inch to 15/16 inch, accommodating hoses with an inner diameter of approximately 3/8 inch to 1/2 inch, with recommended torque settings between 25 and 35 inch-pounds. Each pack includes ten clamps, providing a cost-effective solution for multiple applications. Whether used for marine hoses, fuel lines, or other fluid transfer systems, the Trident Marine 316 SS Worm Gear Clamp offers dependable performance and long-lasting durability.

Features:

• Band Width: 9.7 mm (0.382 inches), smooth with rolled edges to prevent hose damage

• Housing: Compact, one-piece design measuring approximately 0.55 inches wide for high clamping force

• Screw Head: 7mm for easy tightening and adjustment

• Material: Marine-grade AISI 316 stainless steel for corrosion resistance and high tensile strength

• Clamping Range: 5/8 inch to 15/16 inch (15-24 mm), suitable for hoses with inner diameters of 3/8 to 1/2 inch

• Recommended Torque: 25-35 inch-pounds for secure and safe installation

• Pack Size: Includes ten clamps for versatile use across multiple applications
