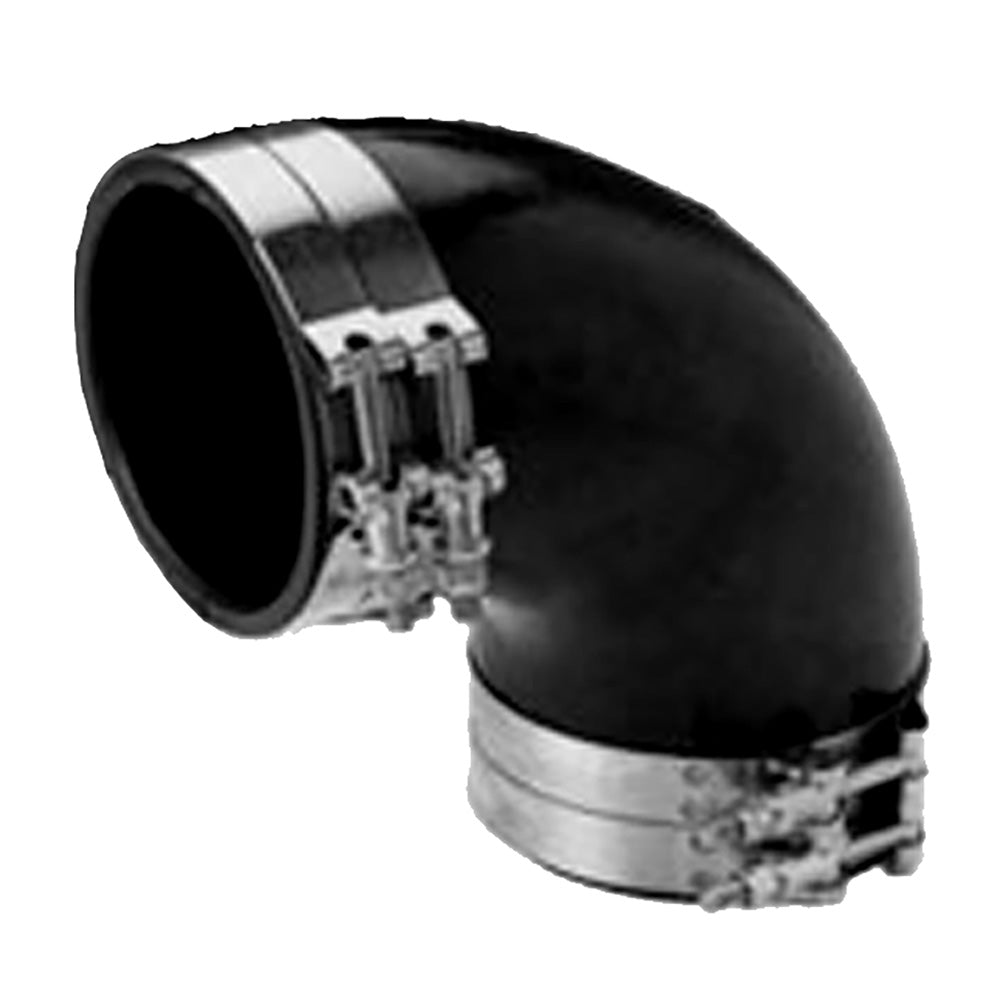

Trident Marine 4-inch ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with T-Bolt Clamps

4" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6 I.D. or bigger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel clamps are included
• This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC NMMA P-1 exhaust standards)
• Black high-temp EDPM rubber

Construction:

• Color: Black
• Reinforcement: Reinforcing ribs on 6 I.D. and above
• Temperature Range: up to 250F (121C)

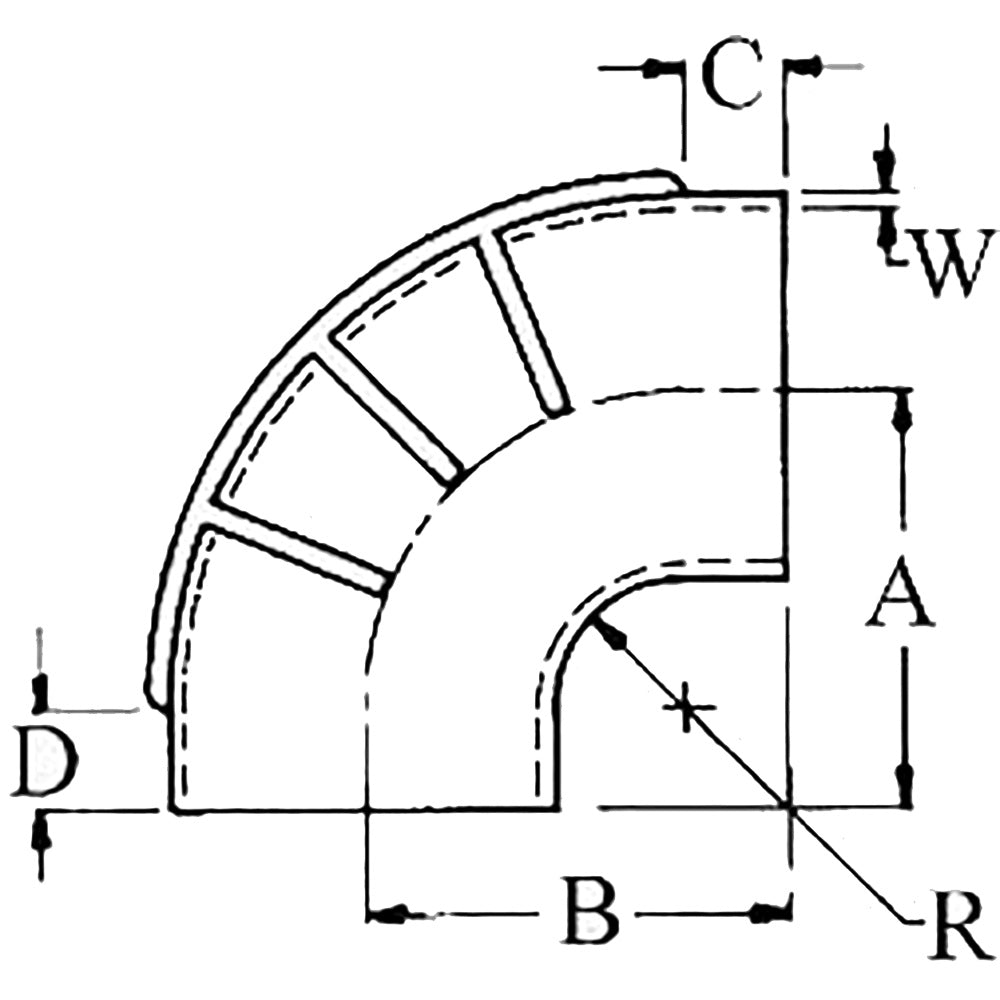

Specifications:

• Inner Diameter: (inch) 4 / (mm) 101.6
• A: (inch) 5.75" / (mm) 146
• B: (inch) 5.75 / (mm) 146
• C: (inch) 1.75 / (mm) 44.4
• D: (inch) 1.75 / (mm) 44.4
• R: (inch) 2 / (mm) 50.8
• W: (inch) 0.25 / (mm) 6.4
• Elbow Degree: 90 degrees

The Trident Marine TRL-490-S/S 4-inch ID 90-degree EPDM black rubber molded wet exhaust elbow is designed for reliable marine exhaust systems. Constructed from high-temperature EPDM rubber, this elbow features a smooth bore for optimal flow and durability, with molded reinforcing ribs on the outside for pipes of 6 inches or larger. The black high-temp EPDM rubber provides excellent resistance to ozone, salt water, diesel fumes, splashes, and aging, ensuring long-lasting performance in harsh marine environments. This elbow can withstand temperatures up to 250°F (121°C), making it suitable for demanding exhaust applications.
Included with the elbow are four stainless steel T-bolt clamps that facilitate secure installation and a tight seal. The design exceeds industry standards such as SAE J2006-R1 and ABYC NMMA P-1, providing confidence in its safety and durability for marine use. Its compact size and reinforced construction make it a dependable choice for replacing or upgrading exhaust connections in boats, ensuring optimal exhaust flow and system integrity.
The dimensions of this 90-degree elbow are optimized to fit standard marine exhaust setups, with an inner diameter of 4 inches (101.6 mm) and other critical measurements that support easy installation and compatibility. Whether used in new installations or repairs, this molded rubber elbow offers a robust, corrosion-resistant solution for marine exhaust systems. Trust Trident Marine for quality marine components built to withstand the rigors of marine environments and to deliver reliable performance over time.

Features:

• Includes four stainless steel T-bolt clamps for secure installation

• High-temperature EPDM rubber construction provides excellent ozone, salt water, and diesel fume resistance

• Reinforcing ribs on elbows of 6 inches or larger for added durability

• Exceeds SAE J2006-R1 and ABYC NMMA P-1 exhaust standards for safety and performance

• Temperature resistant up to 250°F (121°C) for demanding marine applications
