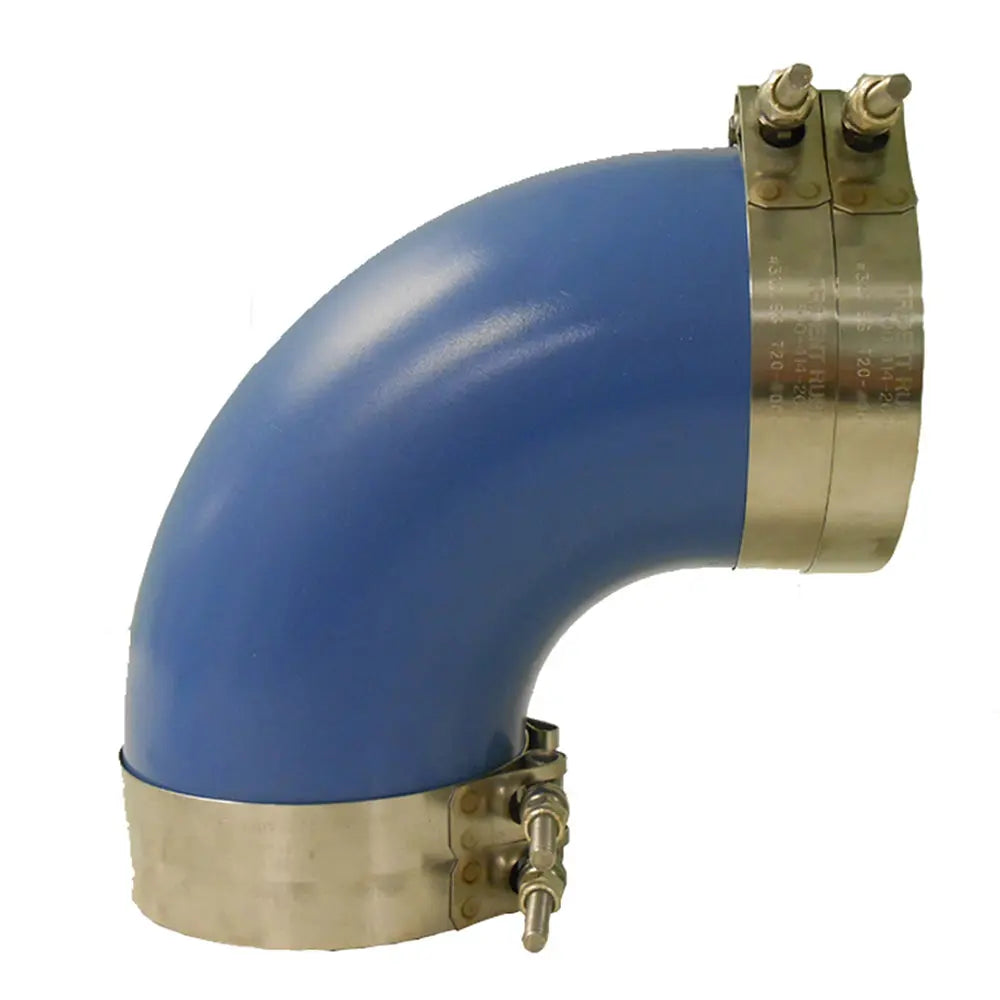

Trident Marine 4 inch ID Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

4" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover.

Features:

• Four stainless steel t-bolt clamps
• Very high temp silicone/EDPM blend rubber - molded
• This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC NMMA P-1) exhaust standards
• Blue very high-temperature silicone blended with EDPM rubber at 350F (177C) max continuous

Construction:

• Color: Blue
• Temperature Range: up to 350F (177C)

Specifications:

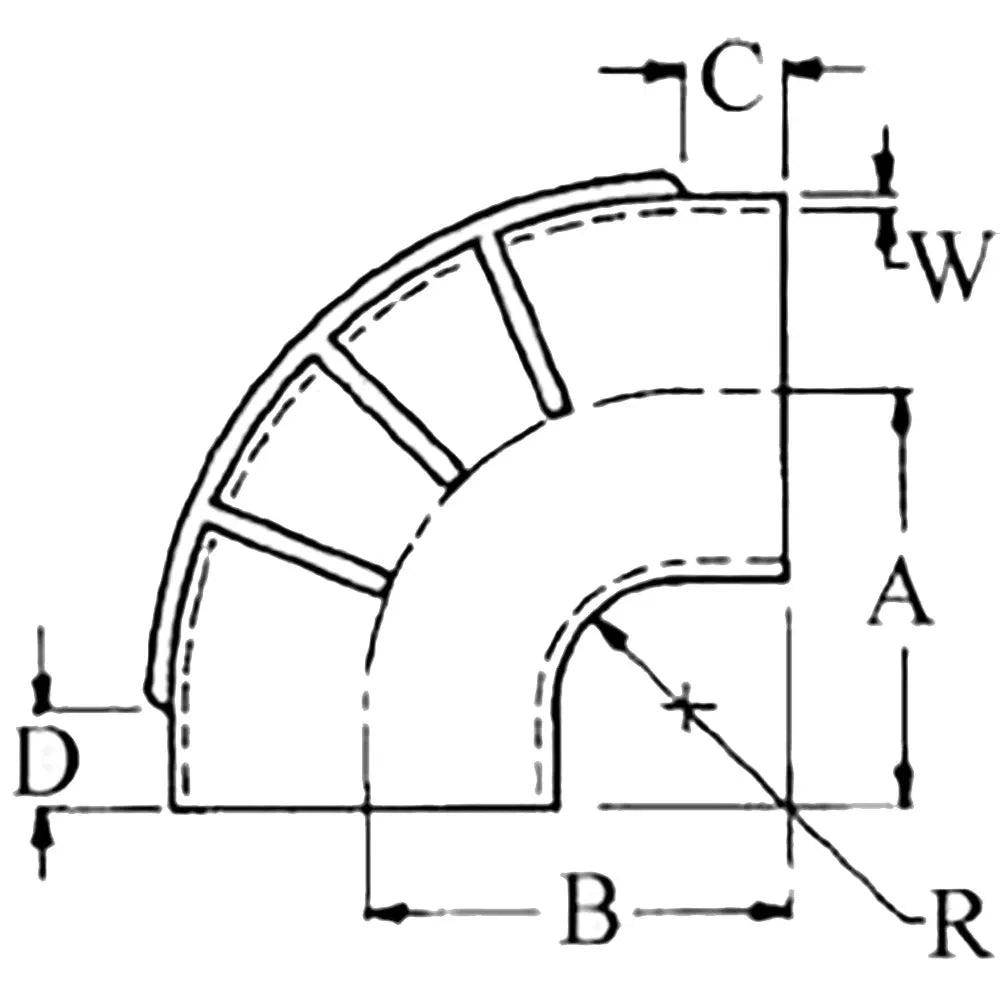

• Inner Diameter: (inch) 4 / (mm) 101.6
• A: (inch) 5.75 / (mm) 146
• B: (inch) 5.75 / (mm) 146
• C: (inch) 1.75 / (mm) 44.4
• D: (inch) 1.50" / (mm) 38.1
• R: (inch) 2 / (mm) 50.8
• W: (inch) 0.25" / (mm) 6.4
• Elbow Degree: 90 degrees

The Trident Marine 4 inch ID blue silicone molded wet exhaust elbow offers a reliable and high-performance solution for marine exhaust systems. Crafted from a high-temperature silicone-EPDM blend rubber, this elbow is designed to withstand harsh marine environments, including exposure to salt water, ozone, diesel fumes, and temperature extremes. The smooth bore construction ensures optimal flow, while the vibrant blue color provides a durable and corrosion-resistant finish. Suitable for demanding marine applications, this elbow exceeds SAE J2006-R1 and ABYC NMMA P-1 standards, ensuring safety and reliability under continuous operation up to 350°F (177°C). Its robust construction includes four stainless steel T-bolt clamps that provide secure attachment and ease of installation, making it an ideal choice for professional marine exhaust systems that require durability and high-temperature resistance. The design features a 90-degree bend, facilitating flexible routing in tight engine compartments and exhaust setups. The dimensions of this elbow include an inner diameter of 4 inches, with specified measurements for mounting and clearance, ensuring compatibility with a range of marine engine configurations. Engineered for longevity and performance, this silicone molded exhaust elbow is perfect for boat builders, marine technicians, and DIY enthusiasts seeking a dependable component that can endure the rigors of marine environments without compromise. Whether replacing worn-out parts or customizing a new exhaust system, the Trident Marine 4-inch blue silicone elbow provides peace of mind with its high-quality materials and proven standards compliance. Its ease of installation, combined with exceptional resistance properties, makes it a versatile and essential component for maintaining optimal engine performance and durability in marine applications.

Features:

• Four stainless steel T-bolt clamps for secure attachment

• High-temperature silicone-EPDM blend rubber for durability

• Excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging

• Exceeds SAE J2006-R1 and ABYC NMMA P-1 exhaust standards

• Blue color provides corrosion resistance and visibility

• Maximum continuous temperature resistance up to 350°F (177°C)

• 90-degree molded elbow for flexible routing in engine compartments
