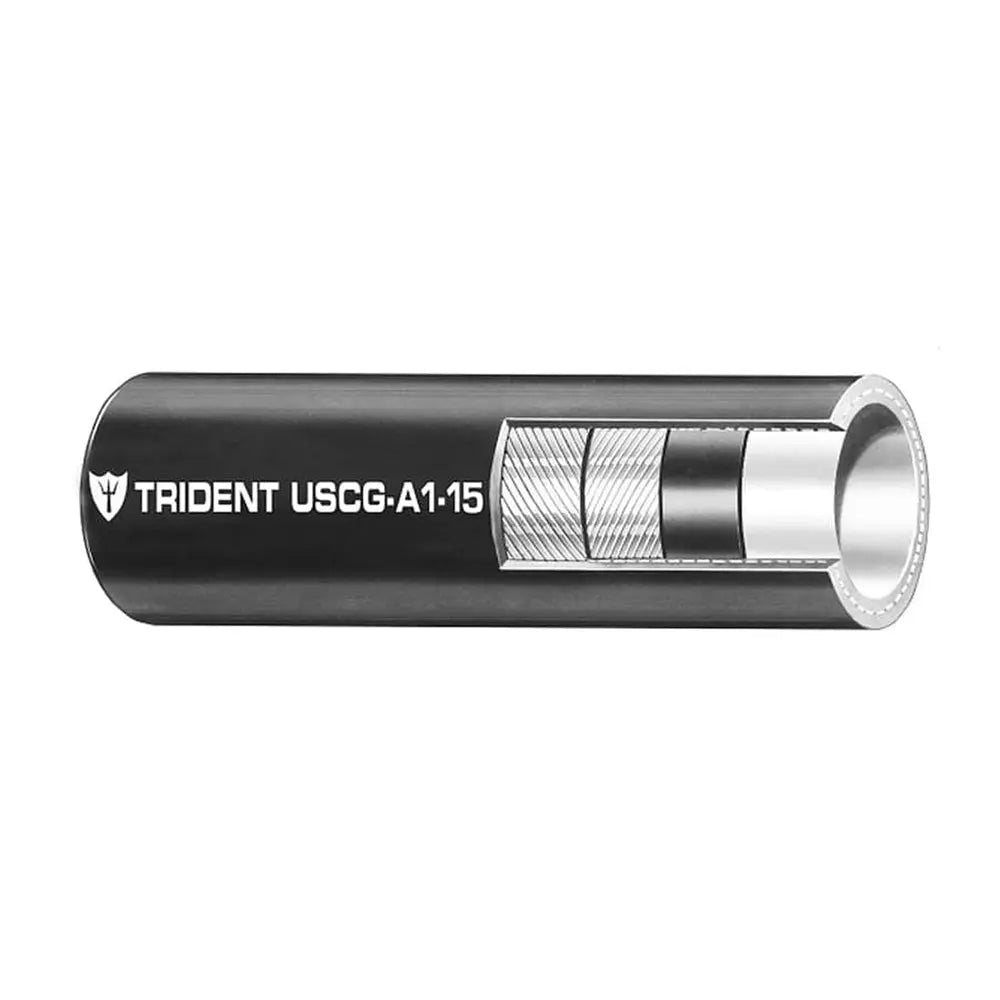

Trident Marine 5/16 inch A1-15 Low Permeation Fuel Line Hose - Black, Sold by the Foot

5/16" A1-15 Reel Low Permeation Fuel Line Hose - Black - Sold by the Foot

Trident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation and a unique "Barrier Liner" on the inside surface of the tube, so the fuel is not in direct contact with rubber.

Features:

• Sold by the foot
• Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone
• Also provides excellent bend-ability
• NMMA Type Accepted CE certified

Application:

• Marine Fuel Hose for distribution, return, vent and transfer
• For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

Construction:

• Tube: Nylon Internal Barrier, NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20F to 212F (-28C to 100C)
• Length: 250 ft. reel (sold by the foot)

Specifications:

• Inner Diameter: (inch) 5/16" / (mm) 7.92
• Outer Diameter: (inch) 0.611 / (mm) 15.5
• Burst Pressure: (psi) 400 / (mpa) 2.76
• Working Pressure: (psi) 100 / (mpa) 0.69
• Bend Radius: (inch) 1.75" / (mm) 44.5
• Weight: (lb/100 ft.) 13.3 / (kg/m) 0.198
• Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

*The #365 series exceeds ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10

The Trident Marine 5/16 inch A1-15 Reel Low Permeation Fuel Line Hose is designed for demanding marine fuel transfer applications. This high-quality fuel hose features a barrier-lined tube that prevents direct contact between fuel and rubber, greatly reducing permeation and ensuring compliance with industry standards. Built with a nylon internal barrier and reinforced with polyester spirals, it offers exceptional durability and resistance to fuel, fire, heat, cold, and ozone. Its flexibility allows for easy installation and routing in tight spaces, making it ideal for marine distribution, return, vent, and transfer lines for gasoline, ethanol blends up to 85%, diesel, and biodiesel fuels. The hose's temperature range from -20°F to 212°F ensures reliable performance across varying environmental conditions, while its robust construction supports a burst pressure of 400 psi and a working pressure of 100 psi. Sold by the foot on a 250-foot reel, this hose provides cost-effective, long-lasting performance for marine fuel systems. Certified and compliant with standards including ABYC H-24, H-33, SAE J1527, ISO 7840, USCG Type A1-15, and EPA low permeation requirements, it is suitable for professional marine applications. The hose's outer cover is a blend of NBR and PVC, offering additional protection against harsh elements, while its inner diameter measures approximately 5/16 inch. Whether used for distribution, return, or venting, the Trident Marine fuel hose ensures safe, reliable fuel handling aboard vessels, helping prevent leaks and fuel permeation while maintaining flexibility and ease of installation in marine environments.

Features:

• Sold by the foot for customizable lengths

• Barrier-lined tube reduces fuel permeation and aging

• Exceptional resistance to fire, heat, cold, and ozone

• Flexible and easy to bend for installation

• NMMA Type Accepted and CE certified for marine use

• Suitable for gasoline, ethanol blends, diesel, and biodiesel fuels

• Reinforced with polyester spirals for durability

• Temperature range from -20°F to 212°F

• Supports burst pressure of 400 psi and working pressure of 100 psi

• Outer cover made from NBR/PVC blend for added protection
