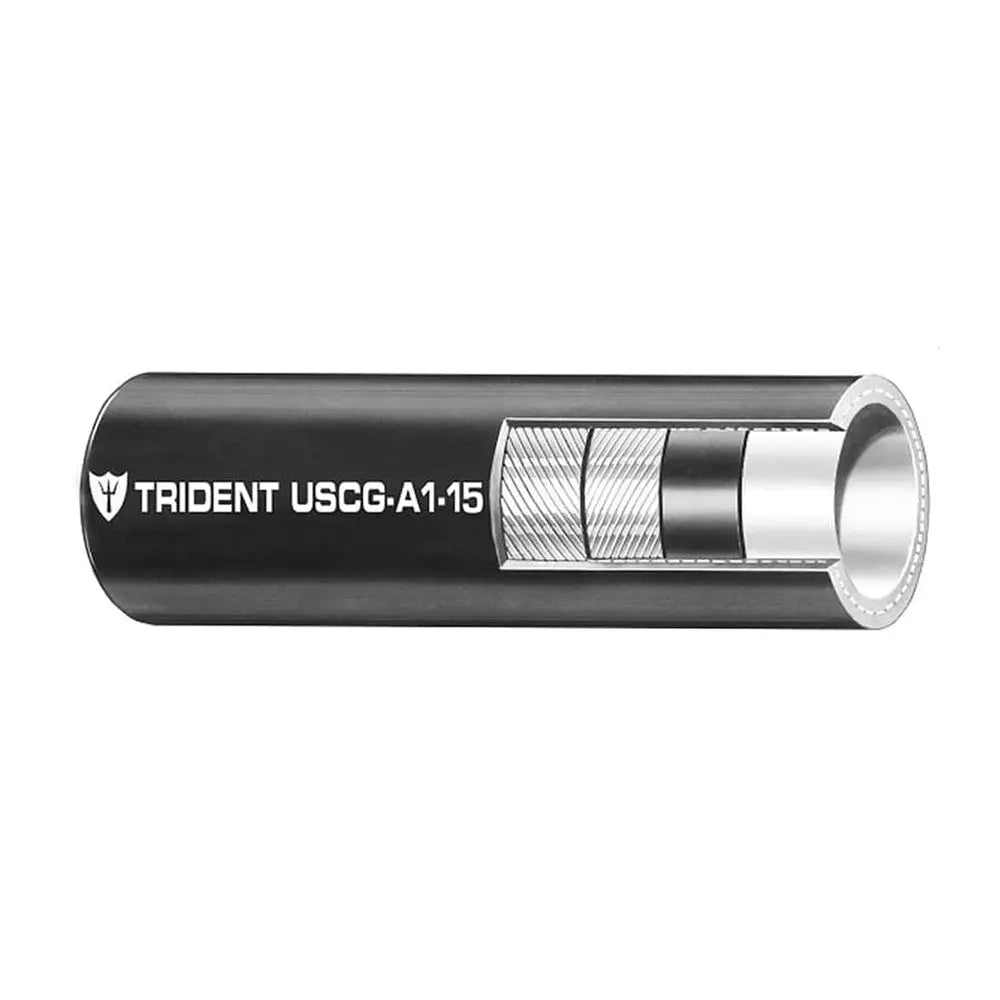

Trident Marine 5/16 inch Low Permeation Type A1-15 Fuel Line Hose - Black, Sold by the Foot

5/16" Low Permeation Type A1-15 Fuel Line Hose - Black - Sold by the Foot

Trident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation and a unique "Barrier Liner" on the inside surface of the tube, so fuel is not in direct contact with rubber.

Features:

• Sold by the foot
• Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone
• Also provides excellent bend-ability
• NMMA Type Accepted CE certified

Applications:

• Marine Fuel Hose (distribution, return, vent and transfer)
• For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

Construction:

• Tube: Nylon Internal Barrier, NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20F to 212F (-28C to 100C)

Specifications:

• Inner Diameter: (inch) 5/16" / (mm) 7.92
• Outer Diameter: (inch) 0.611 / (mm) 15.5
• Burst Pressure: (psi) 400 / (mpa) 2.76
• Working Pressure: (psi) 100 / (mpa) 0.69
• Bend Radius: (inch) 1.75" / (mm) 44.5
• Weight: (lb/100 ft.) 13.3 / (kg/m) 0.198
• Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

*The #365 series exceeds ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10

The Trident Marine 5/16 inch Low Permeation Type A1-15 Fuel Line Hose is designed for reliable fuel transfer in marine applications. Featuring a barrier-lined tube construction, this hose effectively prevents fuel permeation, ensuring minimal vapor loss and compliance with strict industry standards. Its compatibility with gasoline (including ethanol blends up to 85%), diesel, and bio-diesel fuels makes it versatile for various marine fuel systems. Constructed with a nylon internal barrier and reinforced with two spiral polyester layers, the hose offers excellent durability and flexibility. The cover, composed of a NBR/PVC blend, provides resistance to weathering, ozone, and temperature fluctuations, while the hose's temperature range from -20°F to 212°F allows use across diverse environments. This hose is NMMA Type Accepted and CE certified, meeting rigorous safety and performance standards for marine fuel lines. It is ideal for distribution, return, vent, and transfer applications on boats and ships. With a burst pressure of 400 psi and a working pressure of 100 psi, the hose ensures safe operation under demanding conditions. Its bend radius of approximately 1.75 inches facilitates installation in tight spaces without compromising integrity. Weighing around 13.3 pounds per 100 feet, it maintains a low permeation rate of less than 10 g/m²/24 hrs, exceeding industry requirements. The Trident Marine fuel hose is a dependable choice for marine professionals seeking a high-performance, low-permeation fuel line that meets or exceeds industry standards for safety and longevity. Please contact the manufacturer directly for any inquiries, as returns are not accepted at the point of purchase.

Features:

• Sold by the foot for customized lengths

• Barrier-lined tube construction minimizes fuel permeation and vapor loss

• Resistant to fuel, fire, aging, weather, ozone, and temperature extremes

• Flexible with excellent bend-ability for easy installation

• Meets NMMA Type Accepted and CE certification standards
