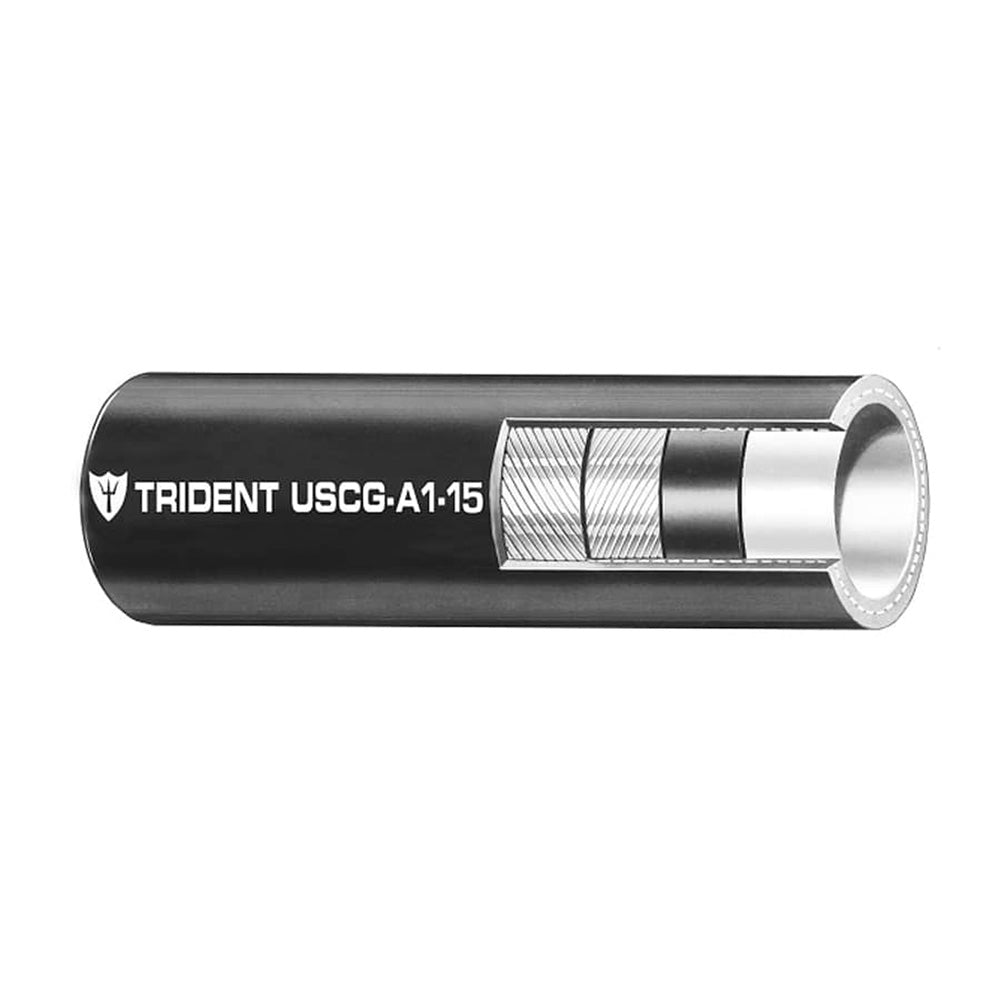

Trident Marine 5/16 inch x 50 ft Low Permeation Type A1-15 Fuel Line Hose - Black

5/16" x 50' Boxed Low Permeation Type A1-15 Fuel Line Hose - Black

Trident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation and a unique "Barrier Liner" on the inside surface of the tube, so fuel is not in direct contact with rubber.

Features:

• Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone
• Also provides excellent bend-ability
• NMMA Type Accepted CE certified

Application:

• Marine Fuel Hose (distribution, return, vent and transfer)
• For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

Construction:

• Tube: Nylon Internal Barrier, NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20F to 212F (-28C to 100C)
• Length: 50 ft. (15 m) Boxed

Specifications:

• Inner Diameter: (inch) 5/16" / (mm) 7.92
• Outer Diameter: (inch) 0.611 / (mm) 15.5
• Burst Pressure: (psi) 400 / (mpa) 2.76
• Working Pressure: (psi) 100 / (mpa) 0.69
• Bend Radius: (inch) 1.75" / (mm) 44.5
• Weight: (lb/100 ft.) 13.3 / (kg/m) 0.198
• Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

*The #365 series exceeds ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10

The Trident Marine 365-0566 fuel line hose is designed to meet the demanding needs of marine fuel systems. Featuring a 5/16 inch internal diameter and a length of 50 feet, this hose provides a reliable connection for gasoline, ethanol blends up to 85%, diesel, and bio-diesel fuels. Its barrier-lined construction ensures minimal fuel permeation, extending the longevity of your fuel system and reducing emissions. Built with a nylon internal barrier and reinforced with polyester spiral layers, the hose offers excellent durability, flexibility, and resistance to environmental factors such as heat, cold, ozone, and fire. The NBR/PVC blend cover further enhances its resilience, making it suitable for various marine applications including distribution, return, vent, and transfer lines. Certified to NMMA and CE standards, this hose is engineered for safety and performance in marine environments. It can withstand high burst pressures and operates efficiently within a temperature range of -20°F to 212°F, ensuring reliable performance across diverse conditions. Whether you're outfitting a new vessel or maintaining existing fuel lines, the Trident Marine fuel hose provides a high-quality, low-permeation solution that adheres to industry standards and environmental regulations. Its bend radius and weight specifications make installation straightforward, while its certifications confirm compliance with rigorous safety and environmental standards.

Features:

• Provides extraordinary resistance to fuel permeation, aging, fire, heat, cold, and ozone

• Excellent bendability for flexible installation

• NMMA Type Accepted and CE certified for marine safety

• Barrier-lined internal tube minimizes fuel contact with rubber, reducing permeation

• Reinforced with two spiral polyester layers for durability

• Suitable for all marine fuels including gasoline, ethanol blends, diesel, and bio-diesel

• Operates within a temperature range of -20°F to 212°F
