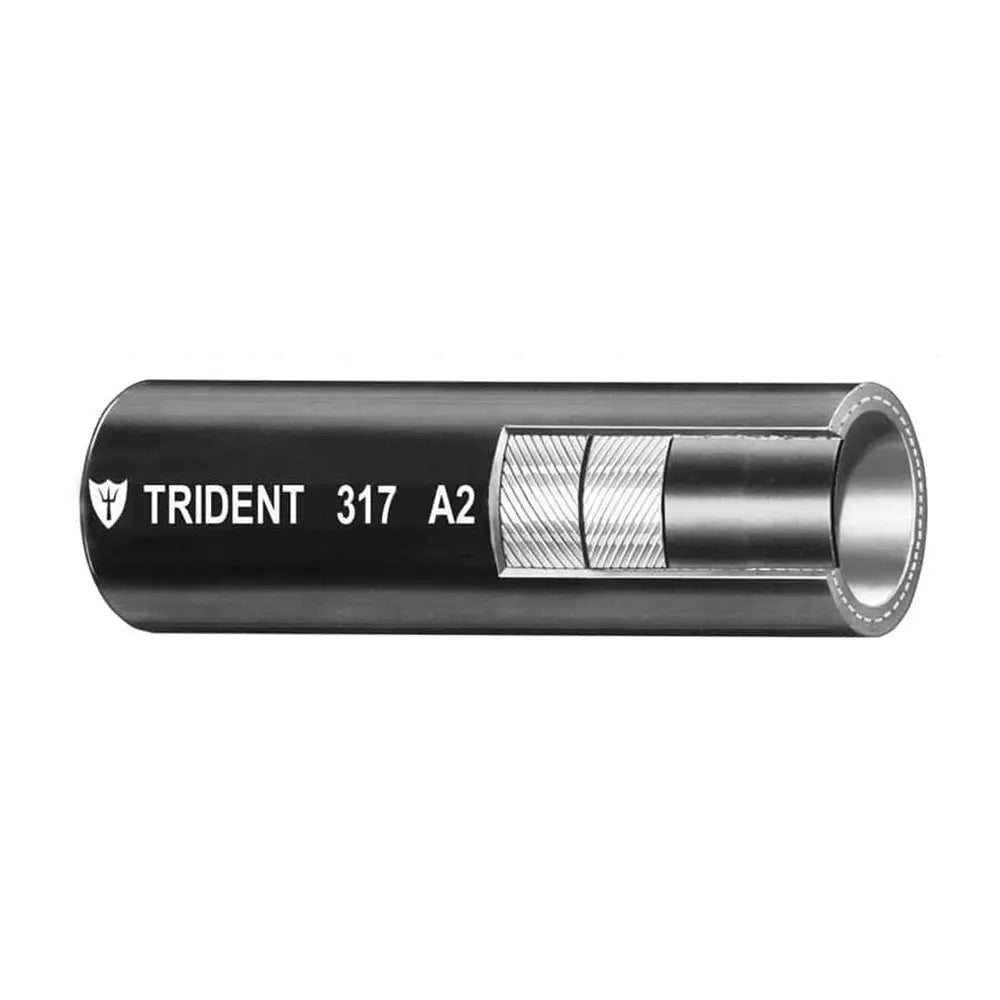

Trident Marine 5/8 A2 Fuel & Vent Line Hose - Black, Sold by the Foot

5/8 A2 Fuel Vent Line Hose - Black - Sold by the Foot

Trident 5/8 ID A2 Fuel Hose is a gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends).

Features:

• Sold by the foot
• This hose is built with the best fuel, fire, and age-resistant formulation
• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
• Also, provides excellent bend-ability

Application:

• Marine Fuel Hose for vent and diesel distribution
• For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

• Tube: NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• TemperatureRange:-20F to 212F (-28C to 100C)
• Length: Sold by the Foot

Specifications:

• Inner Diameter: (inch) 0.625" / (mm) 15.9
• Outer Diameter: (inch) 0.960" / (mm) 24.4
• Burst Pressure: (psi) 200 / (mpa) 1.38
• Working Pressure: (psi) 50 / (mpa) 0.34
• Bend Radius: (inch) 3" / (mm) 76.2
• Weight: (Lb./100ft.) 25.84 / (Kg/m) 11.72

*The #317 series exceeds ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A2; and is NMMA Type Accepted CE certified.

The Trident Marine 5/8 A2 Fuel & Vent Line Hose is designed for reliable fuel venting and diesel distribution in marine applications. Crafted with high-quality materials, this hose is suitable for gasoline, ethanol blends, diesel, and biodiesel, ensuring versatility across various fuel types. Its construction features a durable NBR tube and an NBR/PVC blend cover, reinforced with a polyester two-spiral braid that provides excellent strength and flexibility. This combination results in a hose that resists aging, fire, heat, cold, and ozone exposure, making it ideal for demanding marine environments.

The hose's temperature range spans from -20°F to 212°F (-28°C to 100°C), accommodating a wide array of operating conditions. Its inner diameter measures 0.625 inches, with an outer diameter of approximately 0.96 inches, and it maintains a recommended bend radius of 3 inches for ease of installation. The hose can withstand a burst pressure of 200 psi and operates safely at a working pressure of 50 psi. Weighing about 25.84 pounds per 100 feet, it provides substantial durability without excessive weight, facilitating handling and installation.

Certified to exceed ABYC H-24 and H-33, SAE J1527, ISO 7840, and USCG Type A2 standards, the Trident Marine fuel hose is also NMMA Type Accepted and CE certified. Sold by the foot, it offers flexibility for custom lengths to suit specific project requirements. This product is ideal for marine fuel vent lines and diesel distribution systems, ensuring safe and efficient operation in marine environments. Please note that returns are not accepted at the point of purchase; any issues or concerns should be directed to the manufacturer for assistance.

Features:

• Sold by the foot for customizable length

• Constructed with fuel, fire, and age-resistant formulation

• Highly resistant to aging, fire, heat, cold, and ozone

• Excellent bendability for easy installation

• Suitable for gasoline, ethanol, diesel, and biodiesel fuels

• NBR tube and NBR/PVC blend cover for durability

• Reinforced with polyester two-spiral braid for strength

• Temperature range: -20°F to 212°F (-28°C to 100°C)

• Meets or exceeds ABYC, SAE, ISO, USCG, NMMA and CE standards
