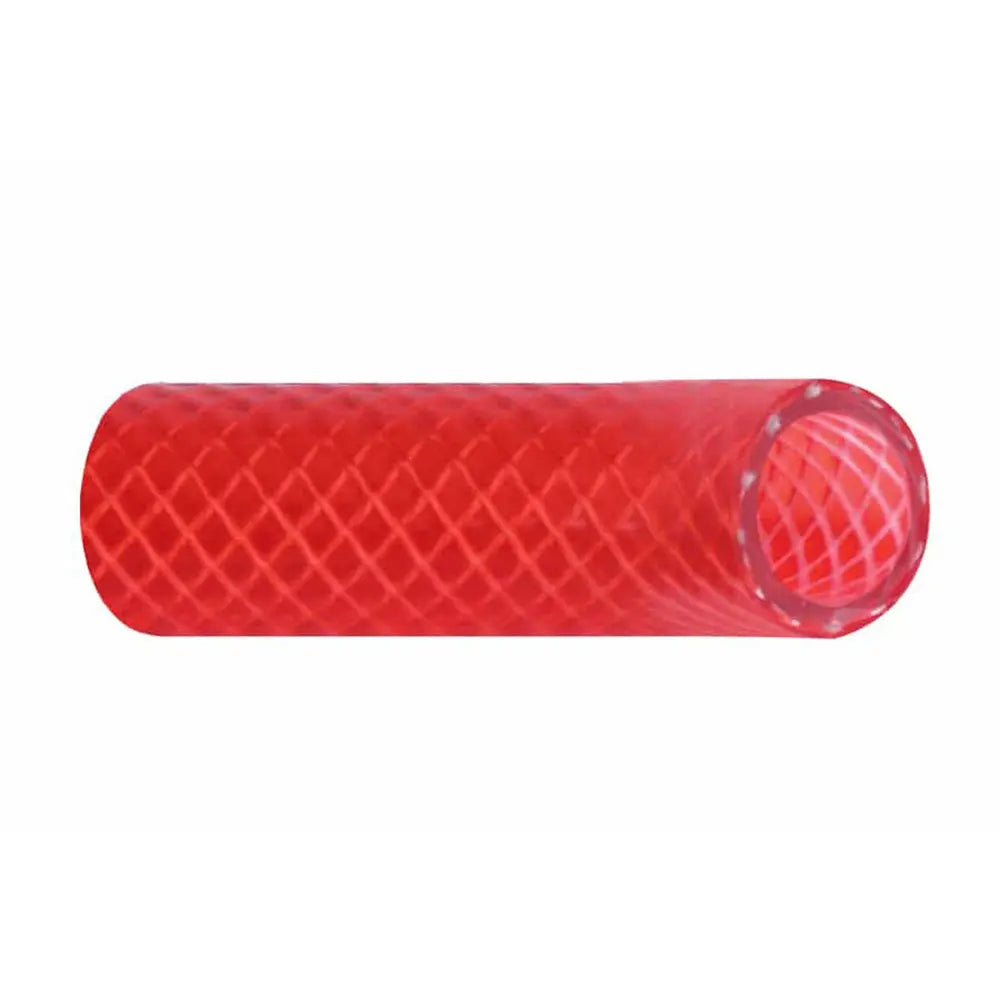

Trident Marine 5/8 Inch Reinforced PVC Hot Water Feed Line Hose - Drinking Water Safe Translucent Red

5/8" Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red - Sold by the Foot

Trident 166 Series Red - polyester reinforced PVC hose for "Hot Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149F (65C) and can handle pressures to a maximum of 250 psi (varies based on i.d size).

Features:

• Sold by the foot
• The Red cover allows for easy identification of "Hot Water" lines on your boat
• Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
• This hose is safe for use with drinking water

Application:

• Perfect for hot, pressurized applications, hot water feed, drains, and vent lines

Construction:

• Tube Cover: Clear FDA tube
• Color: Red Transparent
• Reinforcement: Polyester
• Temperature Range: -18F to 149F (-28C to 65C)

Specifications:

• Inner Diameter: (inch) 5/8" / (mm) 15.9
• Outer Diameter: (inch) .866 / (mm) 22.5
• Working Pressure: (PSI Vac In./Hg) 230 / (bar) 16
• Bend Radius: (inch) 1.26" / (mm) 32

*Burst Pressure is 4 x Working Pressure

The Trident Marine 166 Series 5/8 inch reinforced PVC hose is designed for safe and reliable hot water applications on boats and other marine environments. This translucent red hose features an FDA-grade tube that is non-toxic, odorless, and tasteless, making it suitable for drinking water lines. Its polyester reinforcement provides excellent abrasion resistance and sustained flexibility, ensuring durability even under harsh operating conditions. Capable of handling temperatures up to 149°F (65°C) and pressures up to 250 psi, this hose is ideal for hot water feeds, drains, and vent lines in pressurized systems.

Constructed with a clear FDA-approved tube and a vibrant red outer cover, the hose allows for easy identification of hot water lines, enhancing safety and organization aboard your vessel. The three-ply polyester reinforcement ensures the hose maintains its shape and flexibility under pressure, while its high temperature range ensures reliable operation in demanding environments. The design includes a bend radius of approximately 1.26 inches, facilitating installation in tight spaces without kinking or damage.

This hose is sold by the foot, giving you flexibility to customize lengths for your specific application. The inner diameter measures 5/8 inch (15.9 mm), and the outer diameter is approximately 0.866 inches (22.5 mm). With a burst pressure four times the working pressure, it offers a significant safety margin for high-pressure hot water systems. Whether used for hot water feed lines, drains, or vent applications, this hose provides a safe, durable, and easy-to-spot solution for marine plumbing needs.

Features:

• Sold by the foot for customizable lengths

• Red translucent outer cover for easy identification of hot water lines

• Made of 3-ply polyester reinforcement for abrasion resistance and flexibility

• FDA-grade tube is non-toxic, odorless, and tasteless, safe for drinking water

• Capable of withstanding temperatures up to 149°F (65°C) and pressures up to 250 psi

• Suitable for hot water, drain, and vent lines in pressurized systems

• High burst pressure for added safety margin
