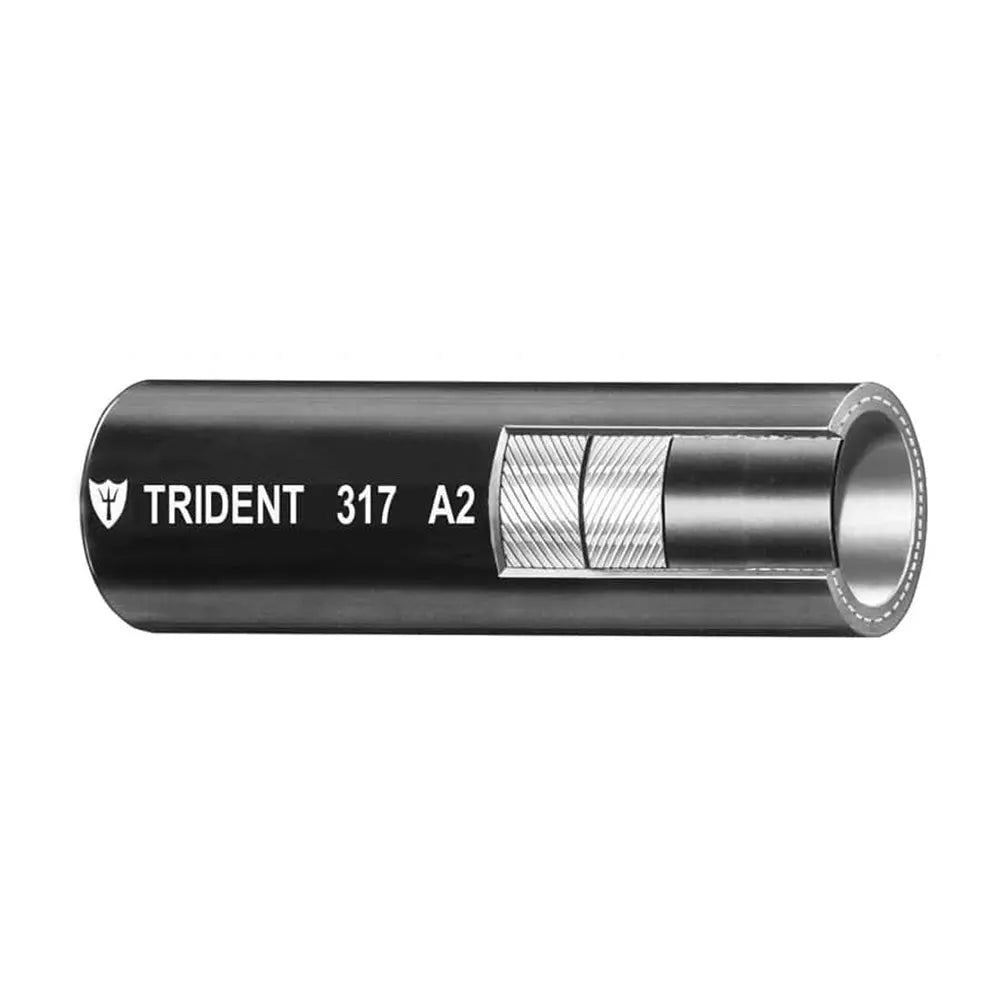

Trident Marine 5/8 inch Type A2 Fuel and Vent Line Hose - Black, Sold by the Foot

5/8" Type A2 Fuel Vent Line Hose - Black - Sold by the Foot

Trident 5/8 A2 Fuel Hose for gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends). This hose is built with the best fuel, fire and age resistant formulation.

Features:

• Sold by the foot
• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
• Also provides excellent bend-ability
• NMMA Type Accepted CE certified

Applications:

• Fuel Hose for vent and diesel distribution
• For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

• Tube: Nylon Internal Barrier, NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20F to 212F (-28C to 100C)

Specifications:

• Inner Diameter: (inch) 5/8" / (mm) 15.9
• Outer Diameter: (inch) 0.960 / (mm) 24.4
• Burst Pressure: (psi) 200 / (mpa) 1.38
• Working Pressure: (psi) 50 / (mpa) 0.34
• Bend Radius: (inch) 3" / (mm) 76.2
• Weight: (lb/100 ft.) 25.84 / (kg/m) 11.72

*The #317 series exceeds ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A2

The Trident Marine 5/8 inch Type A2 Fuel & Vent Line Hose in black offers a reliable solution for fuel venting and diesel distribution on marine vessels. Designed to handle gasoline, ethanol blends, diesel, and bio-diesel, this hose features a high-performance construction that ensures durability and safety in demanding environments. The hose's tube is constructed with a nylon internal barrier and NBR, providing excellent chemical resistance and preventing fuel permeation, while the outer cover blends NBR and PVC for enhanced weather and ozone resistance. Reinforced with two spiral polyester layers, this hose maintains flexibility and strength under various conditions, making it suitable for a wide range of marine fuel applications. It is built to withstand extreme temperatures from -20°F to 212°F, making it versatile for different climates and operational scenarios. With a burst pressure of 200 psi and a working pressure of 50 psi, this hose offers a robust safety margin for marine fuel systems. The hose's bend radius of 3 inches ensures easy installation around tight or complex routes without kinking or damage. Sold by the foot, it provides flexibility for custom lengths and installation needs. Certified to NMMA Type Accepted and CE standards, the Trident Marine 5/8 inch fuel hose complies with industry safety and performance regulations, exceeding standards such as ABYC H-24, H-33, SAE J1527, ISO 7840, and USCG Type A2. Whether used for venting or diesel transfer, this hose delivers dependable performance for marine fuel systems, ensuring safety and longevity in marine environments. Trust Trident Marine’s expertise for high-quality fuel hoses designed to meet rigorous industry standards and demanding operational conditions.

Features:

• Sold by the foot for customizable lengths

• Provides exceptional resistance to aging, fire, heat, cold, and ozone

• Offers excellent flexibility and bendability for easy installation

• NMMA Type Accepted and CE certified for marine safety standards

• Constructed with nylon internal barrier and NBR outer cover for chemical and weather resistance

• Reinforced with two spiral polyester layers for strength and durability

• Temperature range from -20°F to 212°F (-28°C to 100°C)

• Withstands burst pressures up to 200 psi and operates safely at 50 psi

• Suitable for gasoline, ethanol blends, diesel, and bio-diesel venting and transfer
