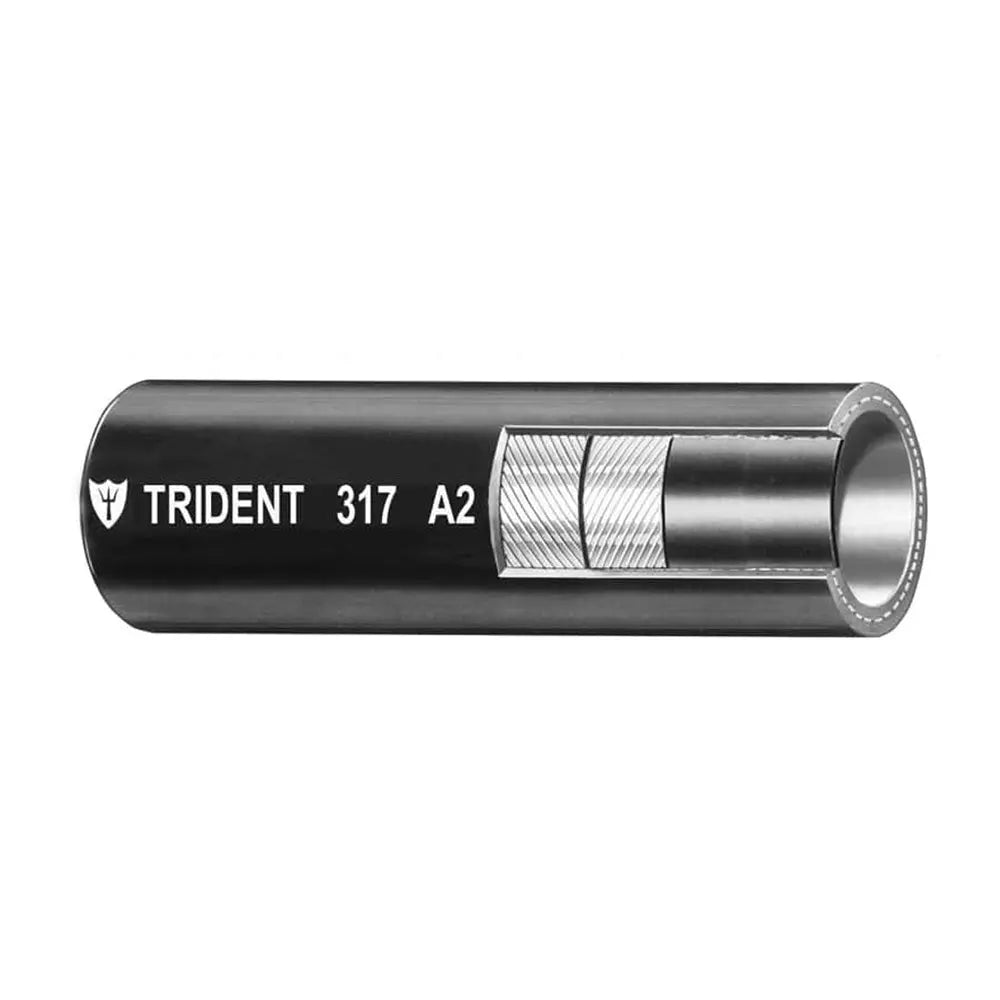

Trident Marine 5/8 inch x 50 ft Boxed Type A2 Fuel and Vent Line Hose - Black

5/8" x 50' Boxed Type A2 Fuel Vent Line Hose - Black

Trident 5/8 A2 Fuel Hose for gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends). This hose is built with the best fuel, fire and age resistant formulation.

Features:

• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
• Also provides excellent bend-ability
• NMMA Type Accepted CE certified

Application:

• Fuel Hose for vent and diesel distribution
• For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

• Tube: Nylon Internal Barrier, NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20F to 212F (-28C to 100C)
• Length: 50 ft. (15 m) Boxed

Specifications:

• Inner Diameter: (inch) 5/8" / (mm) 15.9
• Outer Diameter: (inch) 0.960 / (mm) 24.4
• Burst Pressure: (psi) 200 / (mpa) 1.38
• Working Pressure: (psi) 50 / (mpa) 0.34
• Bend Radius: (inch) 3" / (mm) 76.2
• Weight: (lb/100 ft.) 25.84 / (kg/m) 11.72

*The #317 series exceeds ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A2

The Trident Marine Part Number 317-0586 is a reliable and versatile fuel and vent line hose designed for marine applications. Constructed with a nylon internal barrier and NBR cover, this 50-foot hose offers excellent resistance to aging, fire, heat, cold, and ozone exposure, making it suitable for demanding marine environments. Its robust reinforcement with two spiral polyester layers ensures durability and safety under high-pressure conditions. This hose is ideal for venting gasoline, ethanol blends, diesel, and bio-diesel fuels, providing a secure and flexible solution for fuel distribution in boats and marine vessels. The hose also boasts excellent bendability, allowing easy installation around tight curves and corners without compromising integrity.

Engineered to meet or exceed industry standards, the Trident Marine fuel hose is NMMA Type Accepted and CE certified, ensuring compliance with strict safety and quality benchmarks. The inner diameter of 5/8 inch (15.9 mm) and outer diameter of approximately 0.96 inch (24.4 mm) make it compatible with a wide range of marine fuel systems. Its temperature range from -20°F to 212°F (-28°C to 100°C) allows for versatile use across different climates and operating conditions. The hose has a burst pressure of 200 psi and a working pressure of 50 psi, providing a substantial safety margin for typical marine fuel applications. With a bend radius of about 3 inches (76.2 mm), installation is flexible, even in confined spaces, and its weight per 100 feet is approximately 25.84 pounds, making handling manageable for marine technicians.

This fuel and vent hose conforms to multiple industry standards, including ABYC H-24, H-33, SAE J1527, ISO 7840, and USCG Type A2, ensuring it meets rigorous safety and performance criteria. Whether used for venting or fuel transfer, the Trident Marine A2 hose provides a dependable, long-lasting solution that enhances safety and efficiency aboard marine vessels. Its construction and specifications are tailored to withstand the harsh marine environment while maintaining optimal performance over time.

Features:

• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone

• Excellent bendability for easy installation around tight corners

• NMMA Type Accepted and CE certified for compliance with industry standards

• Constructed with nylon internal barrier and NBR cover for durability

• Reinforced with two spiral polyester layers for strength under high pressure

• Suitable for gasoline, ethanol blends, diesel, and bio-diesel fuels in marine environments

• Temperature range from -20°F to 212°F (-28°C to 100°C) for versatile use

• Burst pressure of 200 psi ensures safety margins during operation

• Lightweight and flexible, facilitating installation in confined spaces
