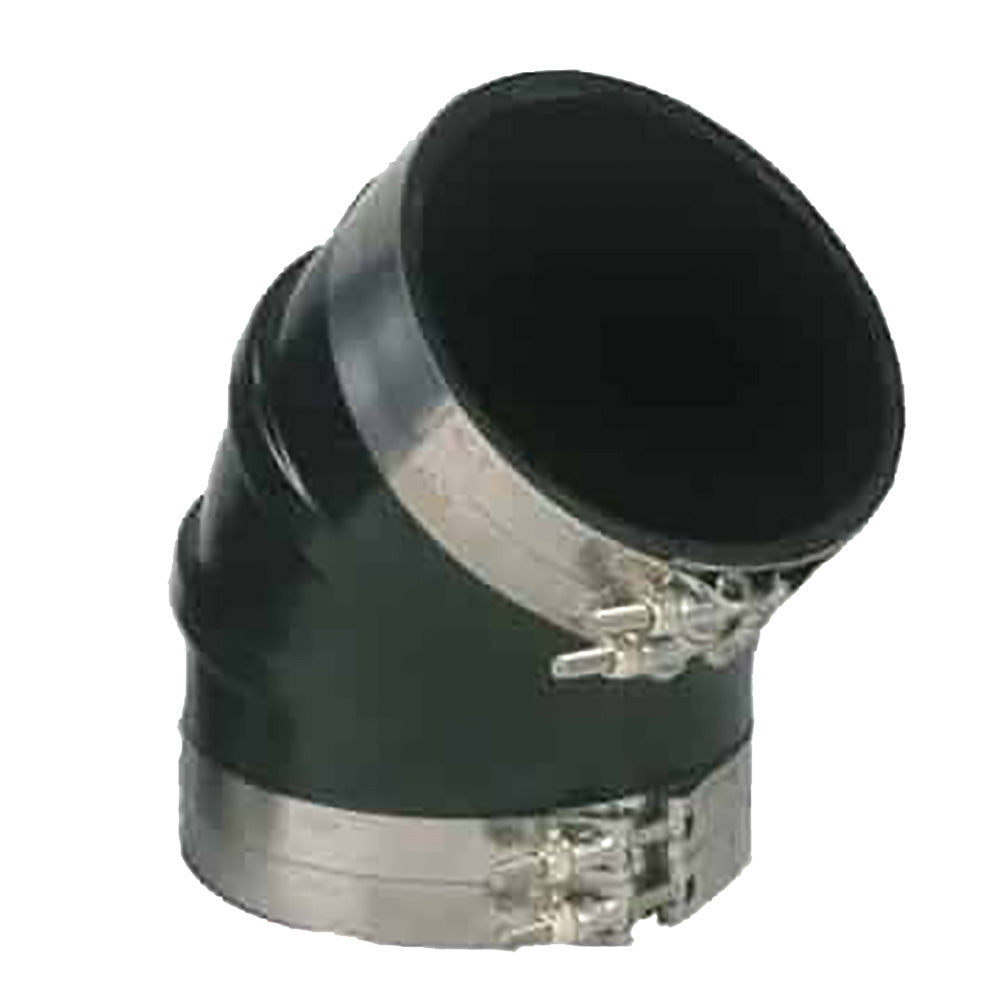

Trident Marine 5-inch ID 45-Degree EPDM Rubber Exhaust Elbow with Clamps - Model TRL-545-S/S

5" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6 I.D. or bigger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel clamps are included
• This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC NMMA P-1 exhaust standards)
• Black high-temp EDPM rubber

Construction:

• Color: Black
• Reinforcement: Reinforcing ribs on 6 I.D. and above
• Temperature Range: up to 250F (121C)

Specifications:

• Inner Diameter: (inch) 5 / (mm) 127
• Outer Diamter: (inch) 5.5" / (mm) 139.7

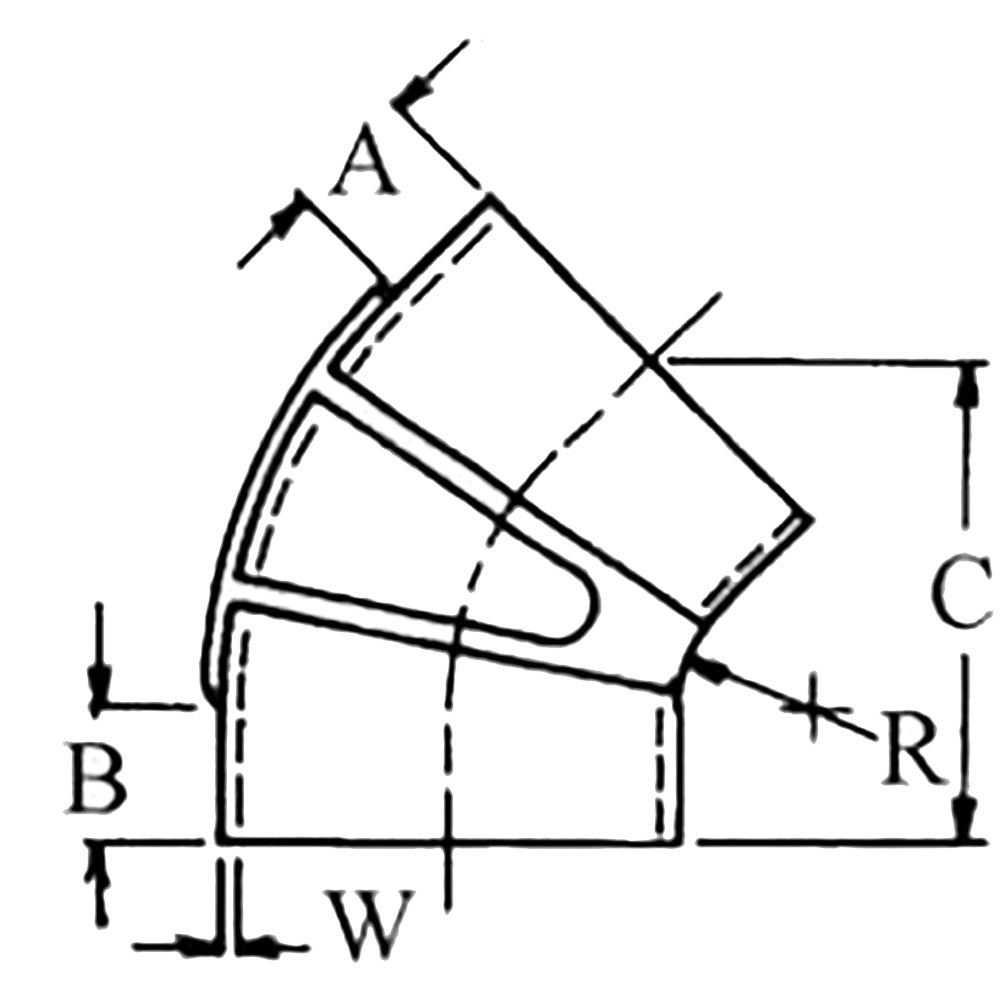

• A: (inch) 1.62 / (mm) 48.1
• B: (inch) 1.62 / (mm) 48.1
• C: (inch) 5.75 / (mm) 146
• W: (inch) 0.25 / (mm) 6.35
• Elbow Degree: 45 degrees
• Weight: (Lb/Ea) 1.05 / (Kg/Ea) 0.478

The Trident Marine 5-inch ID 45-degree EPDM rubber exhaust elbow is designed for reliable marine wet exhaust systems. Crafted from high-temperature black EPDM rubber, this molded elbow features a smooth bore for unobstructed exhaust flow and reinforced ribs on larger sizes to ensure durability. It is engineered to withstand harsh marine environments, including salt water, ozone exposure, diesel fumes, and extreme temperatures, making it ideal for demanding marine applications. The included four stainless steel T-bolt clamps facilitate secure installation, ensuring a tight seal that prevents leaks and maintains system integrity. Compliant with SAE J2006-R1 and ABYC NMMA P-1 exhaust standards, this elbow guarantees safety and performance in compliance with industry regulations. Suitable for systems operating up to 250°F (121°C), the elbow's black high-temp EPDM rubber offers excellent resistance to aging, cold, and heat, providing long-lasting performance in marine exhaust setups. The 45-degree design allows for flexible routing within confined spaces without compromising exhaust flow efficiency. Its robust construction, coupled with reinforcing ribs on sizes 6 inches and above, supports durability under continuous operation. This component's dimensions and specifications ensure compatibility with a variety of marine exhaust configurations, making it a reliable choice for boat builders and marine repair professionals seeking quality and compliance in their exhaust systems.

Features:

• Four stainless steel T-bolt clamps included for secure installation

• High-temperature black EPDM rubber with excellent resistance to ozone, salt water, diesel fumes, cold, heat, and aging

• Designed to meet SAE J2006-R1 and ABYC NMMA P-1 exhaust standards for safety and reliability

• Reinforcing ribs on larger sizes for enhanced durability

• Operates effectively at temperatures up to 250°F (121°C)

• 45-degree elbow design facilitates flexible routing within confined spaces
