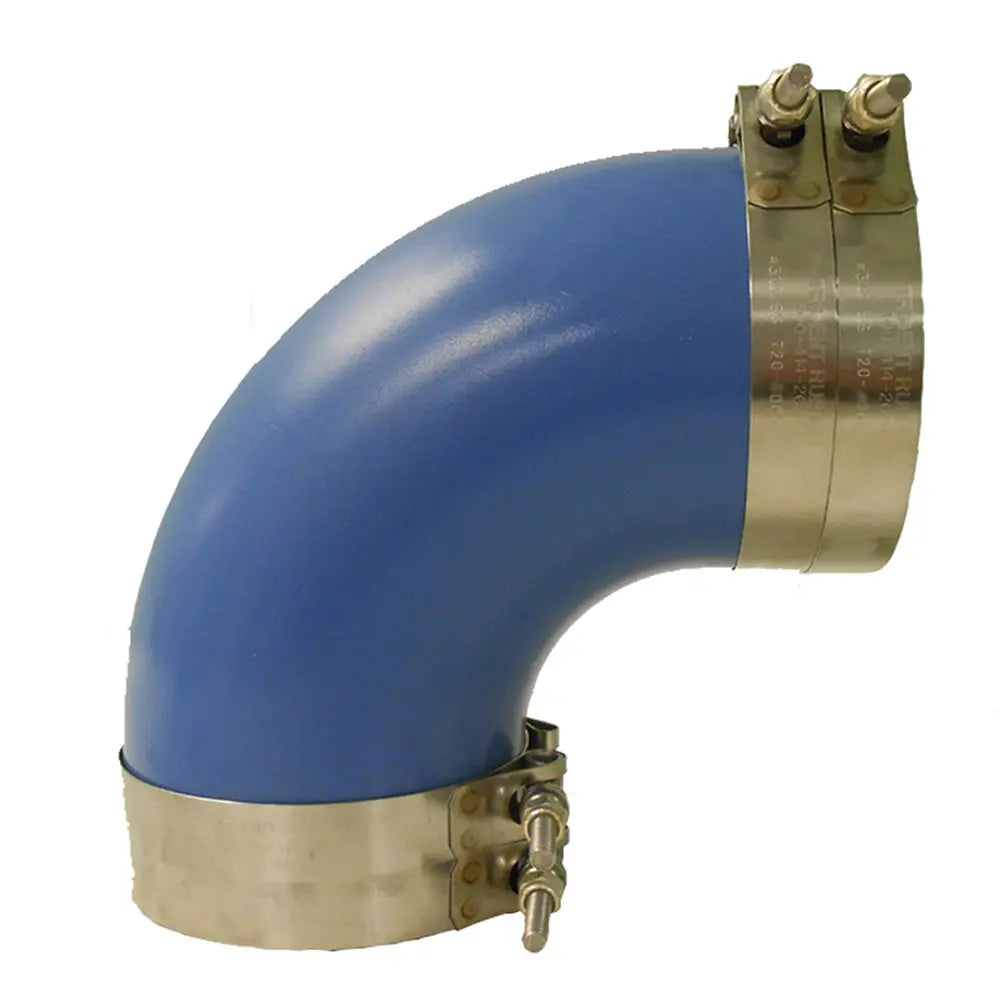

Trident Marine 6-Inch Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

6" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6" I.D. or larger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel t-bolt clamps
• Very high temp silicone/EDPM blend rubber - molded
• This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC NMMA P-1) exhaust standards
• Blue very high-temperature silicone blended with EDPM rubber at 350F (177C) max continuous

Construction:

• Color: Blue
• Reinforcement: Reinforcing ribs on 6 I.D. and above
• Temperature Range: up to 350F (177C)

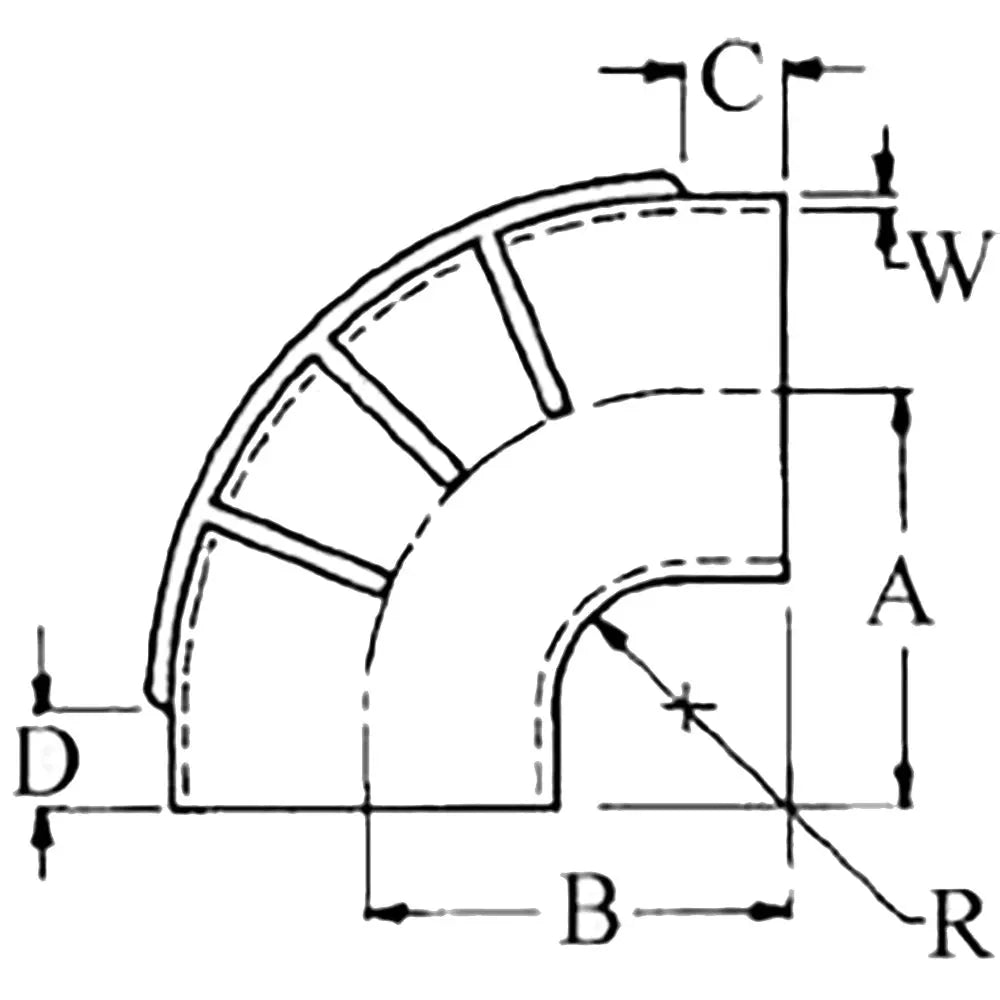

Specifications:

• Inner Diameter: (inch) 6 / 152.4 mm
• A: (inch) 7 / (mm) 178
• B: (inch) 7 / (mm) 178
• C: (inch) 2.25 / (mm) 57.2
• D: (inch) 2" / (mm) 57.2
• R: (inch) 1.75 / (mm) 44.5
• W: (inch) 0.25" / (mm) 6.4
• Elbow Degree: 90 degrees

The Trident Marine 6-inch ID blue silicone molded wet exhaust elbow is designed for reliable marine exhaust systems. Constructed from a high-temperature silicone-EPDM blend rubber, this elbow provides exceptional resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging, ensuring durability in harsh marine environments. The smooth bore design facilitates efficient exhaust flow, while the molded reinforcement ribs on elbows of 6 inches or larger add extra strength and stability. This 90-degree elbow exceeds industry standards such as SAE J2006-R1 and ABYC NMMA P-1, making it a trusted choice for marine applications. The vibrant blue color not only enhances visibility but also signifies its high-performance build, capable of withstanding continuous temperatures up to 350°F (177°C). It comes with four stainless steel T-bolt clamps for a secure, leak-proof installation, simplifying maintenance and installation processes. Whether used in new installations or replacements, this molded exhaust elbow offers a robust solution for marine exhaust systems that require durability and high-temperature resistance. Its reinforced design and high-quality materials make it suitable for demanding marine environments, providing peace of mind for boaters and technicians alike. The product dimensions are optimized for compatibility with standard marine exhaust components, ensuring seamless integration into existing systems. Trust the Trident Marine 6-inch blue silicone molded wet exhaust elbow for superior performance and long-lasting reliability in your marine exhaust setup.

Features:

• Four stainless steel T-bolt clamps for secure installation

• High-temperature silicone-EPDM blend rubber construction

• Excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging

• Meets SAE J2006-R1 and ABYC NMMA P-1 exhaust standards

• Blue color with molded reinforcement ribs on elbows of 6 inches or larger

• Maximum continuous temperature of 350°F (177°C)
