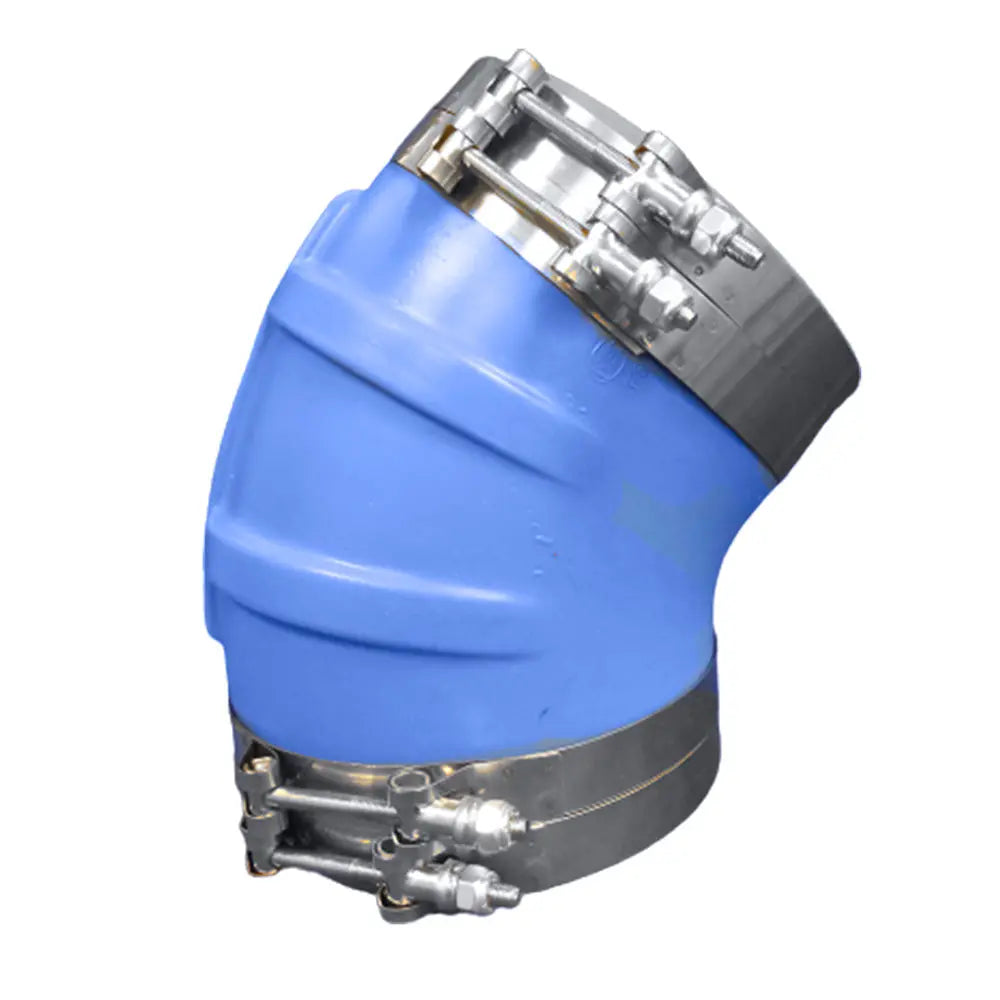

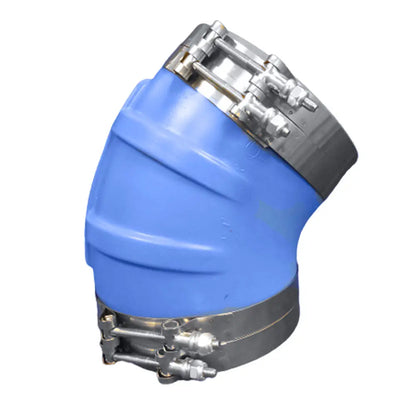

Trident Marine 6-Inch ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

6" ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6" I.D. or larger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel t-bolt clamps
• Very high temp silicone/EDPM blend rubber - molded
• This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC NMMA P-1) exhaust standards
• Blue very high-temperature silicone blended with EDPM rubber at 350F (177C) max continuous

Construction:

• Color: Blue
• Reinforcement: Reinforcing ribs on 6 I.D. and above
• Temperature Range: up to 350F (177C)

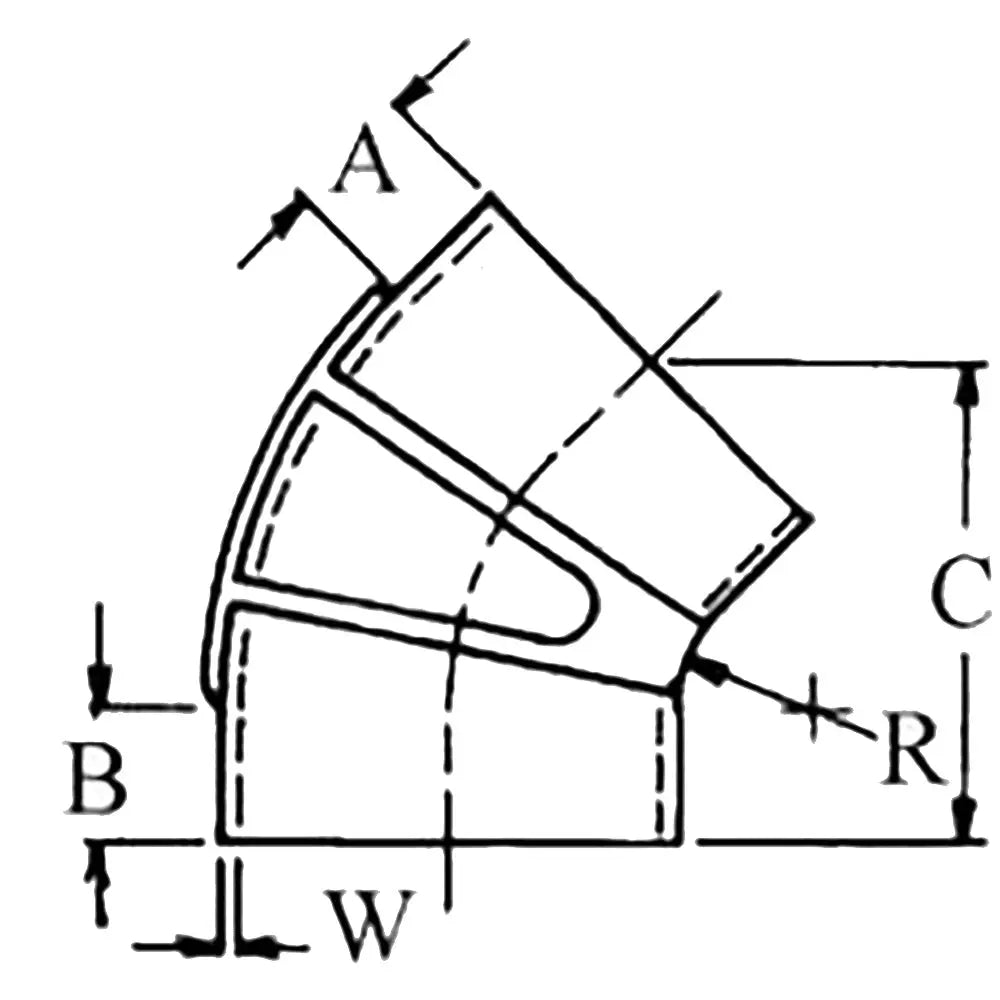

Specifications:

• Inner Diameter: (inch) 6 / 152.4 mm
• A: (inch) 2 / (mm) 5.1
• B: (inch) 2 / (mm) 5.1
• C: (inch) 6.5 / (mm) 16.5
• R: (inch) 1.75 / (mm) 4.5
• W: (inch) 0.25" / (mm) 6.4
• Elbow Degree: 45 degrees

The Trident Marine 6-inch ID 45-degree blue silicone molded wet exhaust elbow is designed for durable and reliable marine applications. Crafted from high-temperature silicone-EPDM blend rubber, this elbow features a smooth bore and molded cover for enhanced performance. Reinforcing ribs on elbows of 6 inches or larger provide additional strength, ensuring long-term durability in demanding marine environments. Suitable for use with wet exhaust systems, it offers excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging, making it an ideal choice for marine engine exhaust connections.
Built to exceed industry standards such as SAE J2006-R1 and ABYC NMMA P-1, this elbow is rated for continuous temperatures up to 350°F (177°C). The vibrant blue color not only provides a distinctive look but also helps in easy identification and maintenance. The package includes four stainless steel T-bolt clamps to secure the connection firmly, ensuring a leak-free and vibration-resistant fit. Its design accommodates a 6-inch inner diameter, with reinforcement ribs on larger sizes to withstand high thermal and mechanical stresses.
This marine exhaust elbow is engineered for easy installation and long-term reliability. Its robust construction and high-temperature tolerance make it suitable for a wide range of marine engine systems. Whether replacing worn-out elbows or installing new exhaust systems, the Trident Marine 6-inch 45-degree silicone elbow offers a professional-grade solution that ensures safety and performance in marine environments.

Features:

• Four stainless steel T-bolt clamps for secure attachment

• High-temperature silicone-EPDM blend rubber for durability

• Reinforcing ribs on elbows of 6 inches or larger for added strength

• Resistant to ozone, salt water, diesel fumes, splash, cold, heat, and aging

• Exceeds industry standards SAE J2006-R1 and ABYC NMMA P-1

• Rated for continuous temperatures up to 350°F (177°C)
