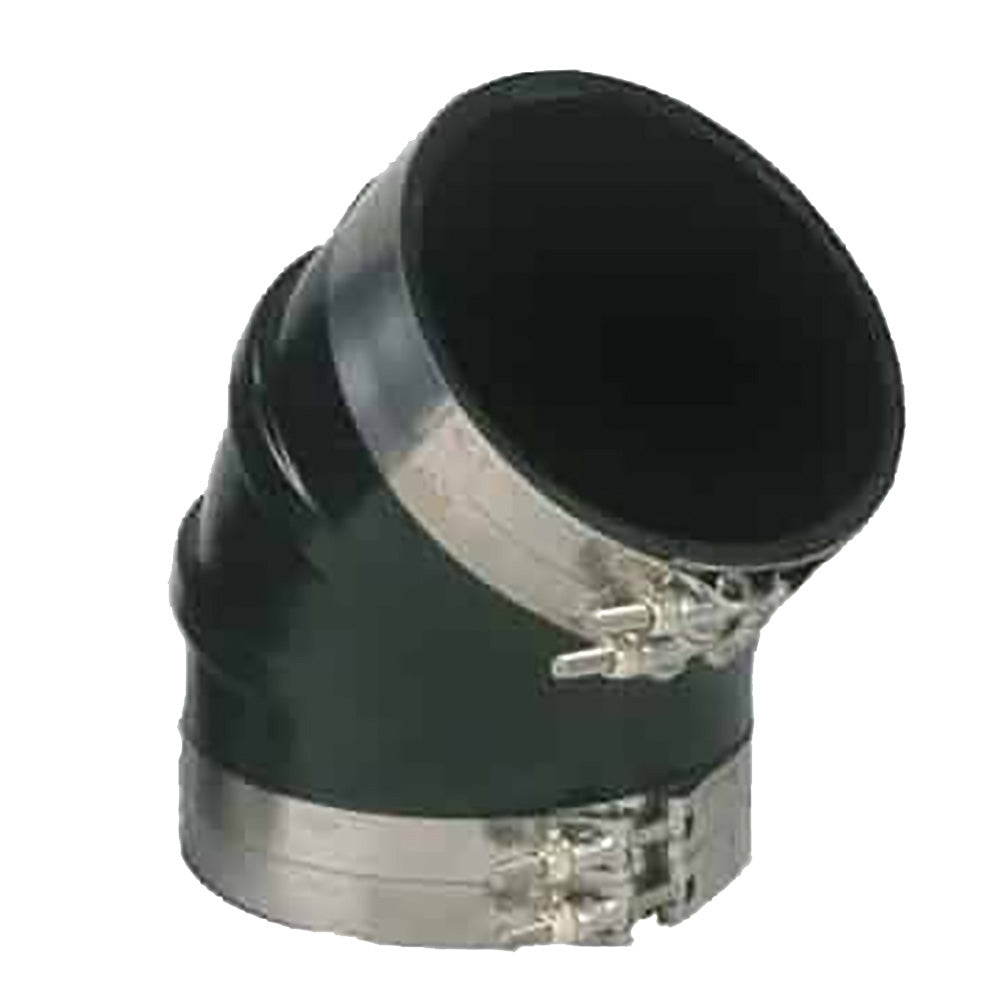

Trident Marine 6-Inch ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with Four T-Bolt Clamps

6" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6 I.D. or bigger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel clamps are included
• This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC NMMA P-1 exhaust standards)
• Black high-temp EDPM rubber

Construction:

• Color: Black
• Reinforcement: Reinforcing ribs on 6 I.D. and above
• Temperature Range: up to 250F (121C)

Specifications:

• Inner Diameter: (inch) 6 / (mm) 152.4
• Outer Diamter: (inch) 6.5" / (mm) 165.1

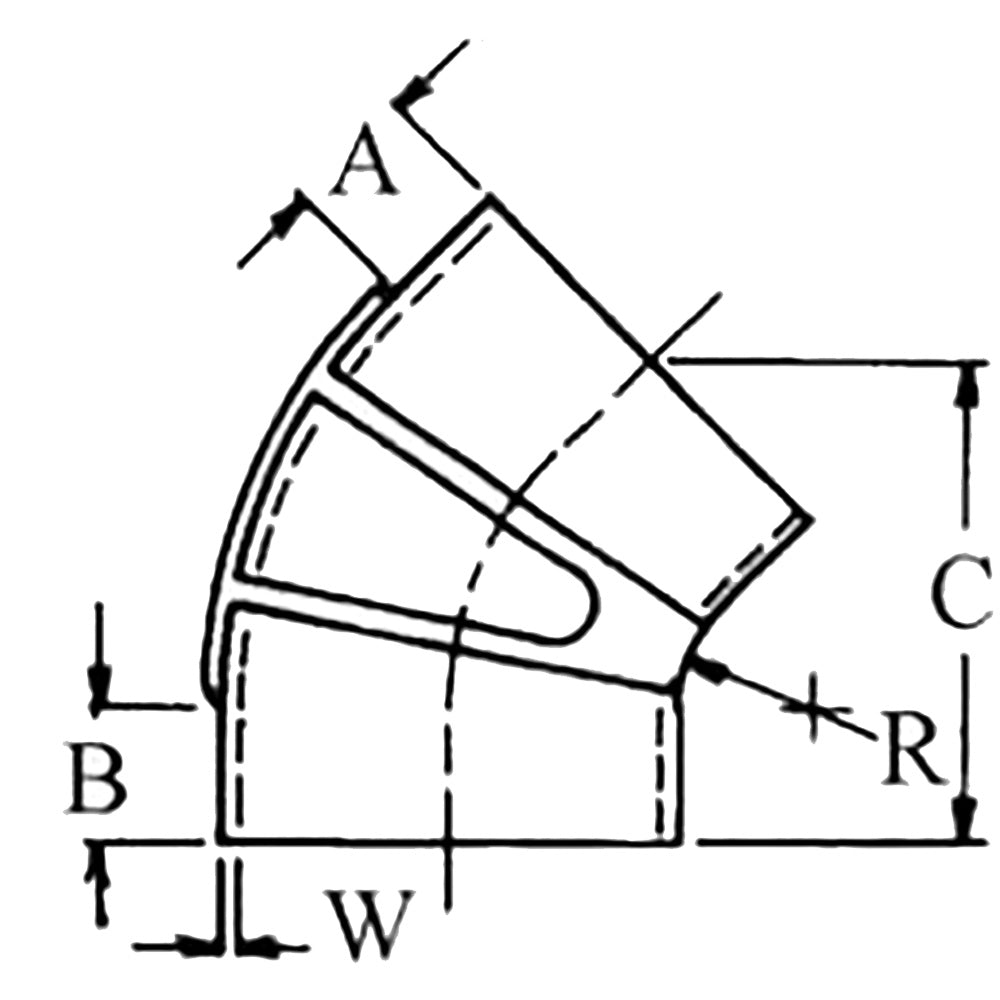

• A: (inch) 2 / (mm) 50.8
• B: (inch) 2 / (mm) 50.8
• C: (inch) 6.5 / (mm) 165
• W: (inch) 0.25 / (mm) 6.35
• Elbow Degree: 45 degrees
• Weight: (Lb/Ea) 1.95 / (Kg/Ea) 0.88

The Trident Marine 6-inch ID 45-degree EPDM black rubber molded wet exhaust elbow is designed for durable and reliable marine exhaust systems. Crafted from high-temperature EPDM rubber, this elbow features a smooth bore and a sturdy cover, with reinforced ribs on the outside for sizes of 6 inches or larger, enhancing structural integrity. Its black finish provides resistance to ozone, saltwater, diesel fumes, splashes, and environmental aging, ensuring long-lasting performance in harsh marine conditions. This elbow exceeds SAE J2006-R1 and ABYC NMMA P-1 exhaust standards, making it a dependable choice for marine exhaust applications. Equipped with four stainless steel T-bolt clamps, installation is secure and straightforward, ensuring a tight fit that prevents leaks and maintains system integrity. The component is rated to withstand temperatures up to 250°F (121°C), suitable for demanding marine environments. Its compact design ensures ease of installation without compromising performance, making it ideal for custom marine exhaust configurations. With a 6-inch inner diameter and a 45-degree angle bend, this elbow effectively directs exhaust flow while maintaining minimal back pressure. The inclusion of reinforcing ribs on larger sizes adds durability against vibrations and thermal expansion. This molded wet exhaust elbow's robust construction and corrosion-resistant features make it a vital component for marine exhaust systems seeking longevity and safety. Properly installed, it ensures optimal exhaust routing, reducing noise and emissions while supporting engine performance and compliance with maritime standards.

Features:

• Four stainless steel T-bolt clamps included for secure installation

• High-temperature EPDM rubber provides excellent resistance to ozone, saltwater, diesel fumes, and environmental aging

• Exceeds SAE J2006-R1 and ABYC NMMA P-1 exhaust standards for safety and reliability

• Reinforcing ribs on larger sizes enhance durability and structural integrity

• Rated to withstand temperatures up to 250°F (121°C) for demanding marine conditions
