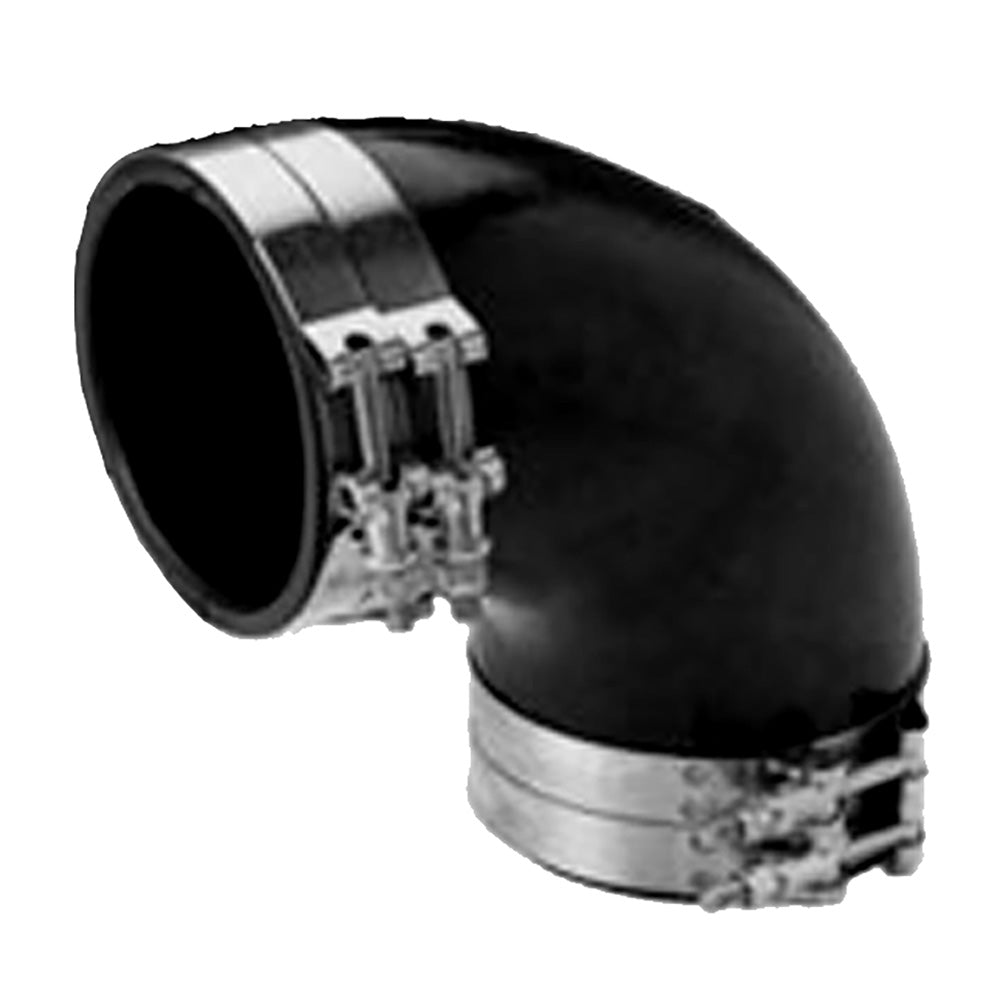

Trident Marine 6-Inch ID 90-Degree EPDM Rubber Exhaust Elbow with T-Bolt Clamps

6" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6 I.D. or bigger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel clamps are included
• This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC NMMA P-1 exhaust standards)
• Black high-temp EDPM rubber

Construction:

• Color: Black
• Reinforcement: Reinforcing ribs on 6 I.D. and above
• Temperature Range: up to 250F (121C)

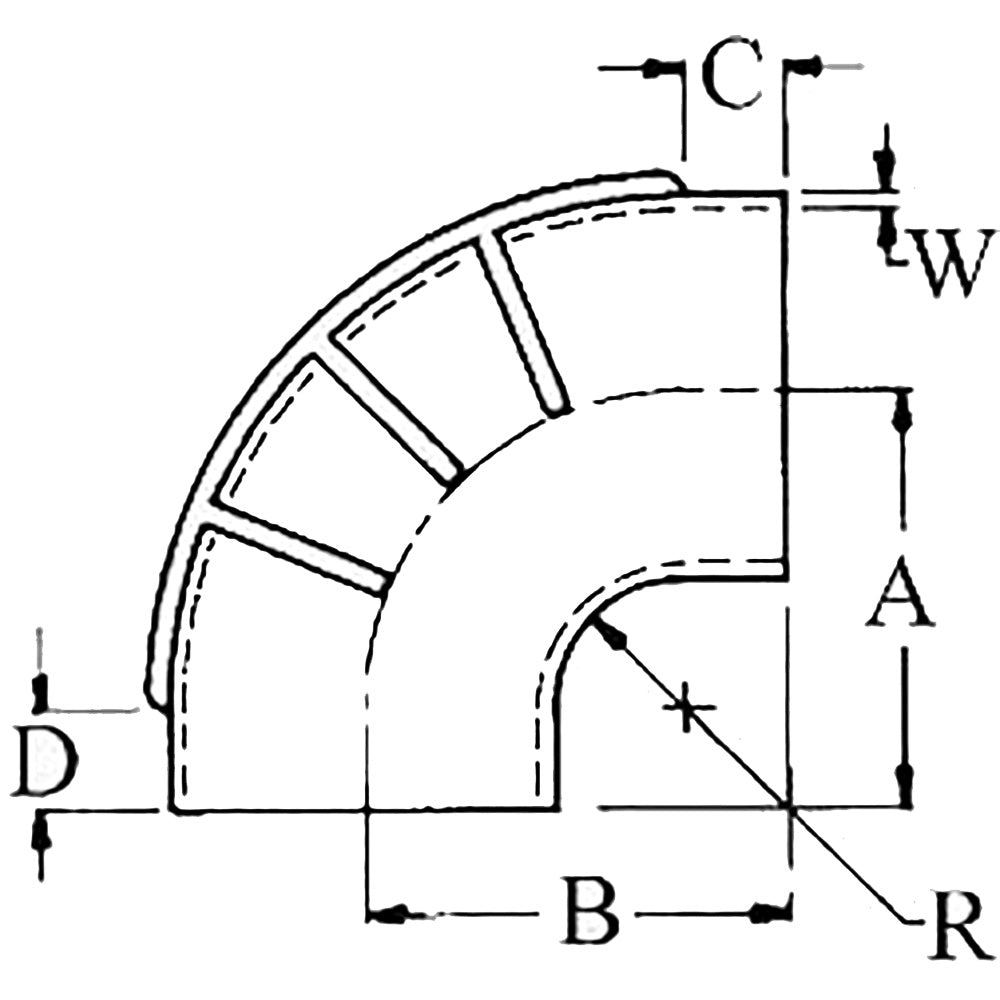

Specifications:

• Inner Diameter: (inch) 6 / (mm) 152.4
• A: (inch) 7" / (mm) 178
• B: (inch) 7 / (mm) 178
• C: (inch) 2.25 / (mm) 57
• D: (inch) 2.25 / (mm) 57
• R: (inch) 1.75 / (mm) 44.4
• W: (inch) 0.25 / (mm) 6.4
• Elbow Degree: 90 degrees

The Trident Marine 6-inch ID 90-degree EPDM Rubber Exhaust Elbow is engineered for durable and reliable marine exhaust systems. Crafted from high-temperature black EPDM rubber, this molded elbow features a smooth bore and reinforced ribs on the outside for sizes of 6 inches or larger, ensuring enhanced strength and resilience. The inclusion of four stainless steel T-bolt clamps provides a secure connection, making installation straightforward and dependable. This exhaust elbow offers excellent resistance to environmental factors such as ozone, saltwater, diesel fumes, and splashes, as well as cold and heat exposure, making it ideal for demanding marine applications. It exceeds industry standards including SAE J2006-R1 and ABYC NMMA P-1, affirming its quality and safety compliance. Built to withstand temperatures up to 250 degrees Fahrenheit (121 degrees Celsius), this component ensures long-lasting performance in harsh conditions. Designed with a 90-degree bend, the elbow allows for efficient routing within confined spaces, facilitating flexible and effective exhaust system layouts. Its black high-temp EPDM rubber and reinforced construction make it suitable for demanding marine environments, providing durability and resistance against aging and environmental stressors. Whether replacing worn parts or customizing a new exhaust setup, this Trident Marine elbow delivers quality, strength, and ease of installation for boat owners and marine professionals alike.

Features:

• Four stainless steel T-bolt clamps included for secure installation

• High-temperature black EPDM rubber construction for durability

• Reinforcing ribs on the outside for sizes 6 inches or larger

• Resistant to ozone, saltwater, diesel fumes, and environmental splashes

• Exceeds industry standards SAE J2006-R1 and ABYC NMMA P-1

• Temperature tolerance up to 250°F (121°C)

• Designed with a 90-degree bend for flexible exhaust routing
