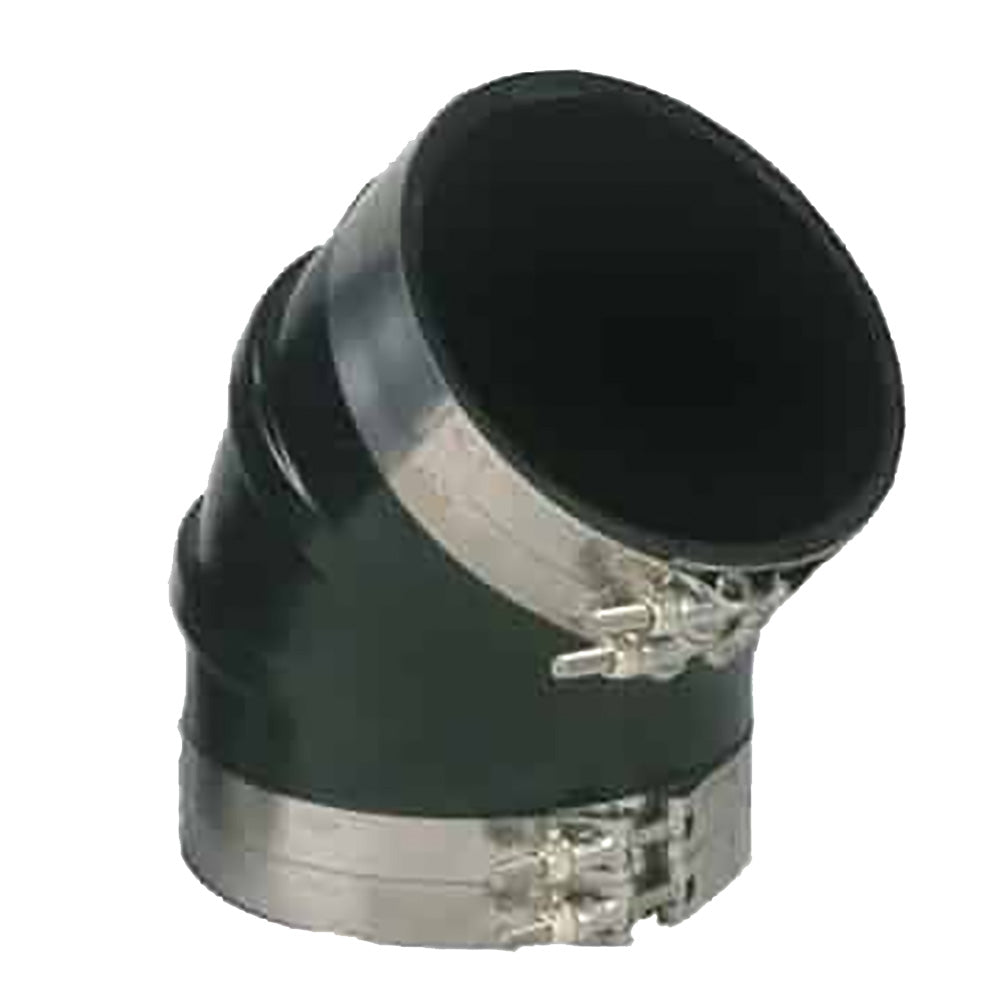

Trident Marine 8 Inch ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

8" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6 I.D. or bigger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel clamps are included
• This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC NMMA P-1 exhaust standards)
• Black high-temp EDPM rubber

Construction:

• Color: Black
• Reinforcement: Reinforcing ribs on 6 I.D. and above
• Temperature Range: up to 250F (121C)

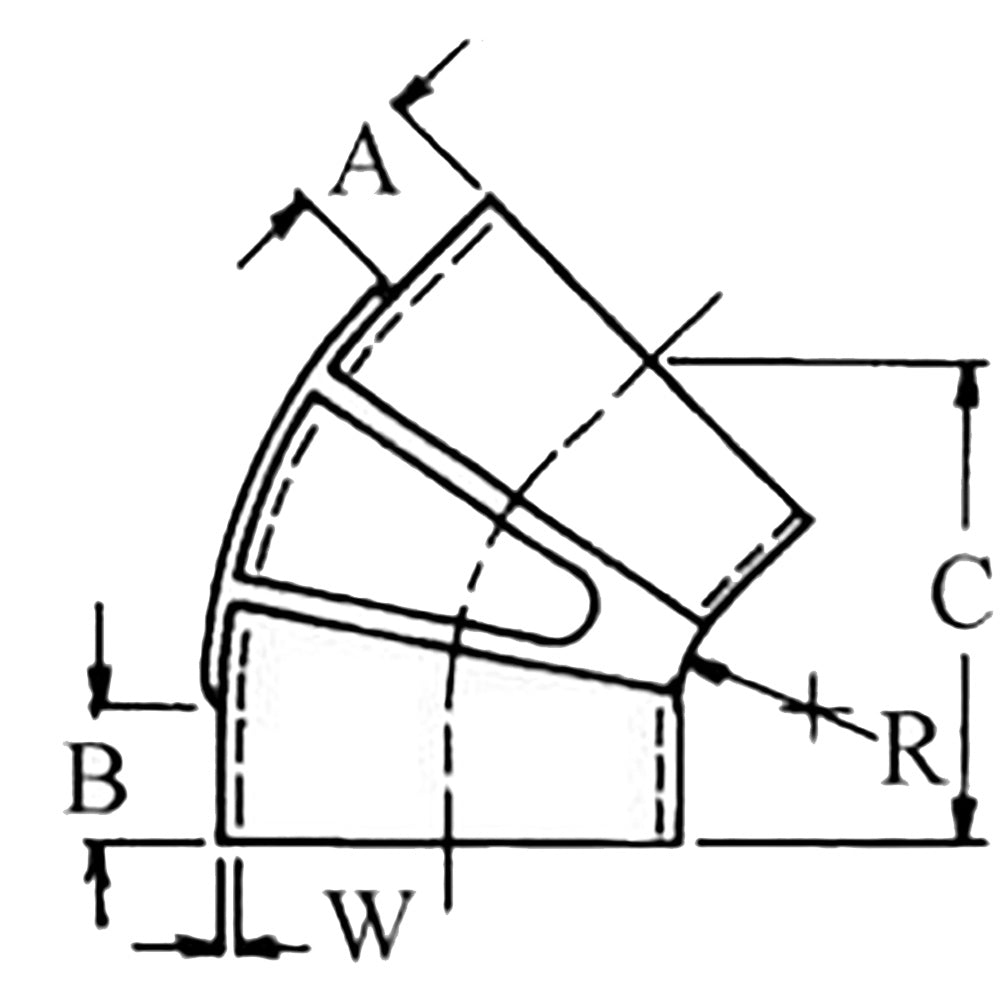

Specifications:

• Inner Diameter: (inch) 8 / (mm) 203
• Outer Diamter: (inch) 8.74" / (mm) 222.0
• A: (inch) 2.25 / (mm) 57.2
• B: (inch) 2.25 / (mm) 57.2
• C: (inch) 8.25 / (mm) 209.5
• W: (inch) 0.37 / (mm) 9.4
• Elbow Degree: 45 degrees
• Weight: (Lb/Ea) 4.3 / (Kg/Ea) 1.95

The Trident Marine TRL-845-S/S is a high-quality 8-inch inner diameter 45-degree exhaust elbow designed for marine wet exhaust systems. Constructed from durable high-temperature black EPDM rubber, this molded elbow features a smooth bore for optimal exhaust flow and includes four stainless steel T-bolt clamps for secure installation. Reinforcing ribs on the outside of elbows with a 6-inch or larger inner diameter enhance structural integrity, ensuring long-lasting performance in demanding marine environments. This component offers excellent resistance to ozone, saltwater, diesel fumes, splashes, extreme temperatures, and aging, making it suitable for a wide range of boat exhaust applications. It exceeds SAE J2006-R1 and ABYC NMMA P-1 standards, ensuring compliance with industry safety and quality benchmarks. The black high-temp EPDM rubber can withstand temperatures up to 250°F (121°C), providing reliable operation under typical marine engine conditions. Designed for ease of installation, this 45-degree elbow helps achieve proper exhaust routing while maintaining system integrity. Its robust construction and corrosion-resistant clamps make it a dependable choice for marine exhaust systems, helping to prevent leaks and ensure efficient engine operation. Whether replacing existing components or installing new exhaust systems, this molded elbow offers a durable, reliable solution engineered for marine applications.

Features:

• Includes four stainless steel T-bolt clamps for secure attachment

• Made from high-temperature black EPDM rubber with excellent ozone, saltwater, and chemical resistance

• Reinforcing ribs on elbows with 6-inch or larger inner diameter for added durability

• Exceeds industry standards SAE J2006-R1 and ABYC NMMA P-1 for safety and quality

• Temperature resistant up to 250°F (121°C) for reliable marine engine operation
