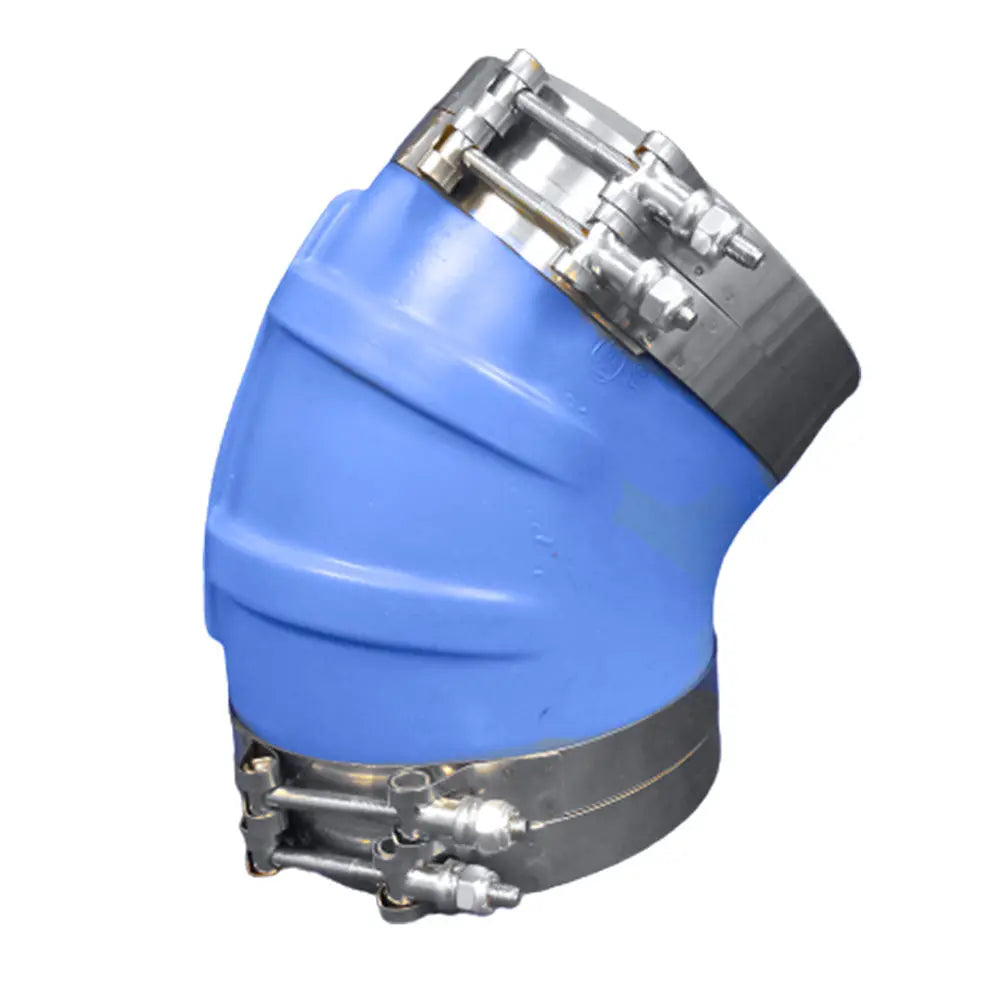

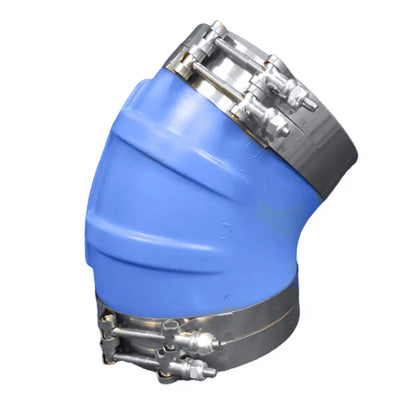

Trident Marine 8-Inch ID Blue Silicone Molded 45-Degree Wet Exhaust Elbow with T-Bolt Clamps

8" ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6" I.D. or larger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel t-bolt clamps
• Very high temp silicone/EDPM blend rubber - molded
• This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC NMMA P-1) exhaust standards
• Blue very high-temperature silicone blended with EDPM rubber at 350F (177C) max continuous

Construction:

• Color: Blue
• Reinforcement: Reinforcing ribs on 6 I.D. and above
• Temperature Range: up to 350F (177C)

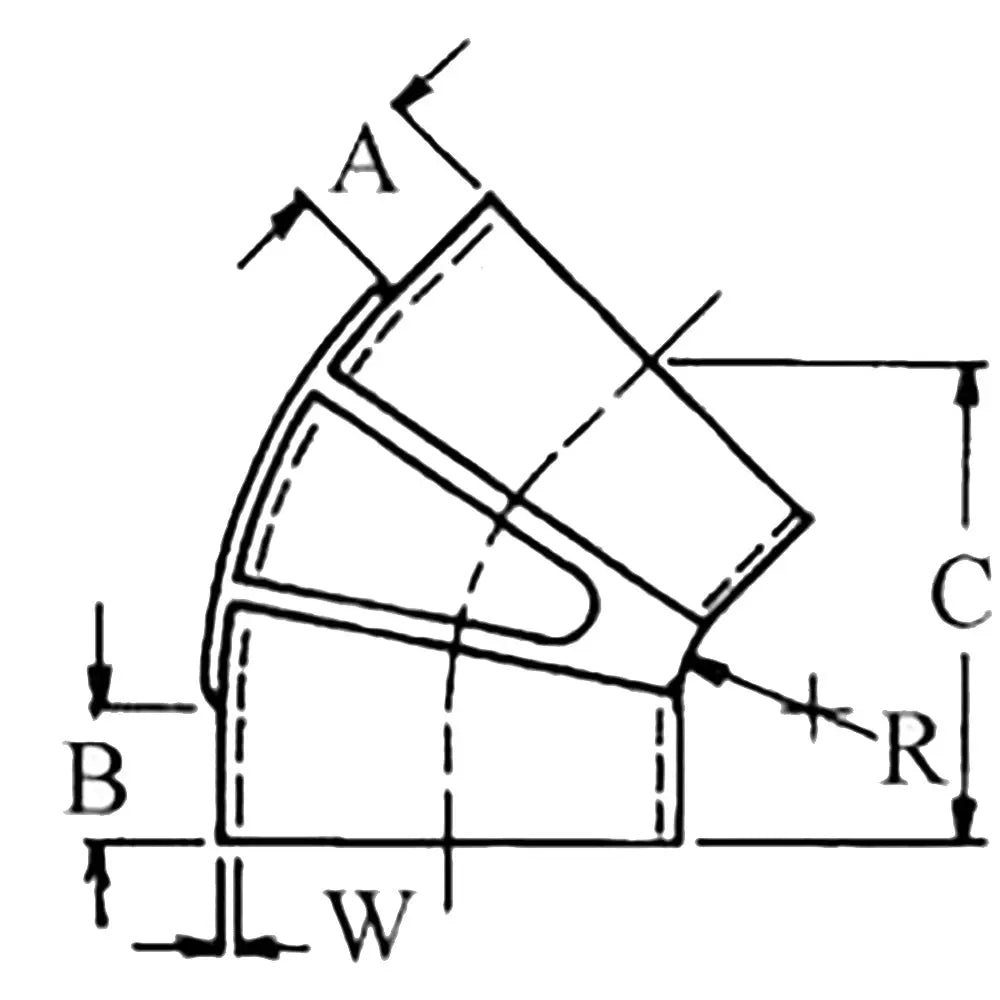

Specifications:

• Inner Diameter: (inch) 8 / 203.2 mm
• A: (inch) 2.25 / (mm) 5.7
• B: (inch) 2.25 / (mm) 5.7
• C: (inch) 8.5 / (mm) 21
• R: (inch) 2.12 / (mm) 5.4
• W: (inch) 0.37" / (mm) 9.4
• Elbow Degree: 45 degrees

The Trident Marine 8-inch ID blue silicone molded 45-degree wet exhaust elbow is engineered for high-performance marine applications. Crafted from a durable silicone-EPDM blend rubber, this exhaust elbow offers exceptional resistance to ozone, salt water, diesel fumes, splashes, cold, heat, and aging, ensuring reliable operation in harsh marine environments. Its high-temperature silicone compound is rated to withstand continuous temperatures up to 350°F (177°C), making it suitable for demanding exhaust systems. Reinforcing ribs on elbows with an inner diameter of 6 inches or larger provide added structural integrity, especially under high-stress conditions. This elbow is designed to meet or exceed industry standards such as SAE J2006-R1 and ABYC NMMA P-1, providing peace of mind for marine professionals and enthusiasts alike. The vibrant blue color not only enhances the aesthetic appeal but also aids in visual inspection and maintenance. The package includes four stainless steel T-bolt clamps to ensure a secure, leak-proof connection, simplifying installation and maintenance while maintaining a tight seal against harsh elements. The 45-degree bend facilitates efficient routing of exhaust systems, reducing stress on hoses and connectors, which prolongs system lifespan. Crafted with attention to detail, this molded elbow features a smooth bore for optimal exhaust flow and minimal turbulence. Its compact design fits seamlessly into existing exhaust configurations, providing a reliable and durable solution for marine exhaust systems. Whether upgrading or repairing, the Trident Marine 8-inch ID silicone molded wet exhaust elbow delivers durability, performance, and corrosion resistance essential for demanding marine environments.

Features:

• High-temperature silicone/EPDM blend rubber construction for durability

• Reinforcing ribs on 6-inch ID and larger elbows for added strength

• Rated to withstand continuous temperatures up to 350°F (177°C)

• Includes four stainless steel T-bolt clamps for secure installation

• Excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging

• Meets SAE J2006-R1 and ABYC NMMA P-1 exhaust standards

• Vibrant blue color for aesthetic appeal and easy inspection

• 45-degree bend facilitates efficient exhaust routing
