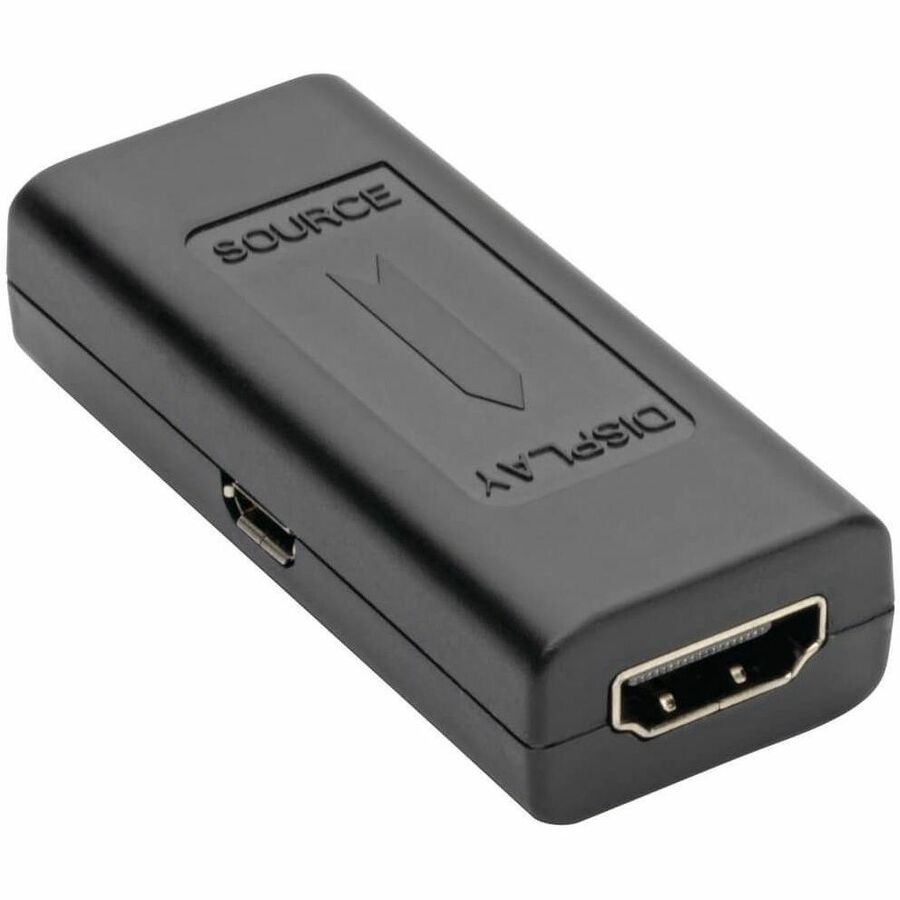

Tripp Lite B122-000-60 HDMI Signal Extender, 1080p 60Hz, 150-Foot Range

Eaton Tripp Lite Series HDMI Signal Booster / Extender, 1920 x 1200 (1080p) 60Hz, Up to 125 ft. (38 m), (HDMI F/F), TAA

The Tripp Lite B122-000-60 HDMI Signal Extender increases the transmission distance of HDMI video signals beyond the standard recommended cable length. It supports computer resolutions up to 1920 x 1200 and HD video up to 1080p at 60Hz, extending signals up to 150 feet from the source when used with compatible HDMI cabling. The extender features female HDMI connectors and is designed for straightforward installation between the source device and display without software or drivers.
For most installations, the B122-000-60 operates without an external power connection. A Micro USB port is included for applications where additional power is needed; connect it to a USB wall charger, compatible monitor USB port, or computer USB port using an appropriate Micro USB cable. For best performance, Tripp Lite P568-Series HDMI cables are recommended. When extending 1080p at 60Hz or 1920 x 1200 signals beyond 75 feet, use 24 AWG HDMI cable such as the Tripp Lite P568-100-HD. The extender can support 3D HDMI signals up to 125 feet when used with 24 AWG cable.
The Tripp Lite B122-000-60 supports DTS-HD, Dolby TrueHD, and 7.1-channel surround sound audio for high-quality home theater, commercial AV, classroom, and digital signage installations. It is HDCP compliant and meets Federal Trade Agreements Act requirements for GSA Schedule purchases. The environmentally friendly design complies with RoHS standards. The package includes the B122-000-60 HDMI Extender and a manual, backed by a 3-year limited warranty from Tripp Lite.

Features:

• Signal Extension: Extends HDMI signals up to 150 feet from the source

• Video Support: Supports resolutions up to 1080p at 60Hz and 1920 x 1200

• Audio Support: Supports DTS-HD, Dolby TrueHD, and 7.1-channel surround sound audio

• Power Requirements: No external power is required in most installations

• Optional Power: Micro USB port provides power support for installations that require it

• Cable Compatibility: Designed for use with Tripp Lite P568-Series HDMI cables

• Long-Distance Cabling: Requires 24 AWG HDMI cable for select distances beyond 75 feet

• 3D Support: Extends 3D HDMI signals up to 125 feet with 24 AWG HDMI cable

• Compliance: HDCP compliant, TAA compliant, and RoHS compliant

• Warranty: Includes a 3-year limited warranty
