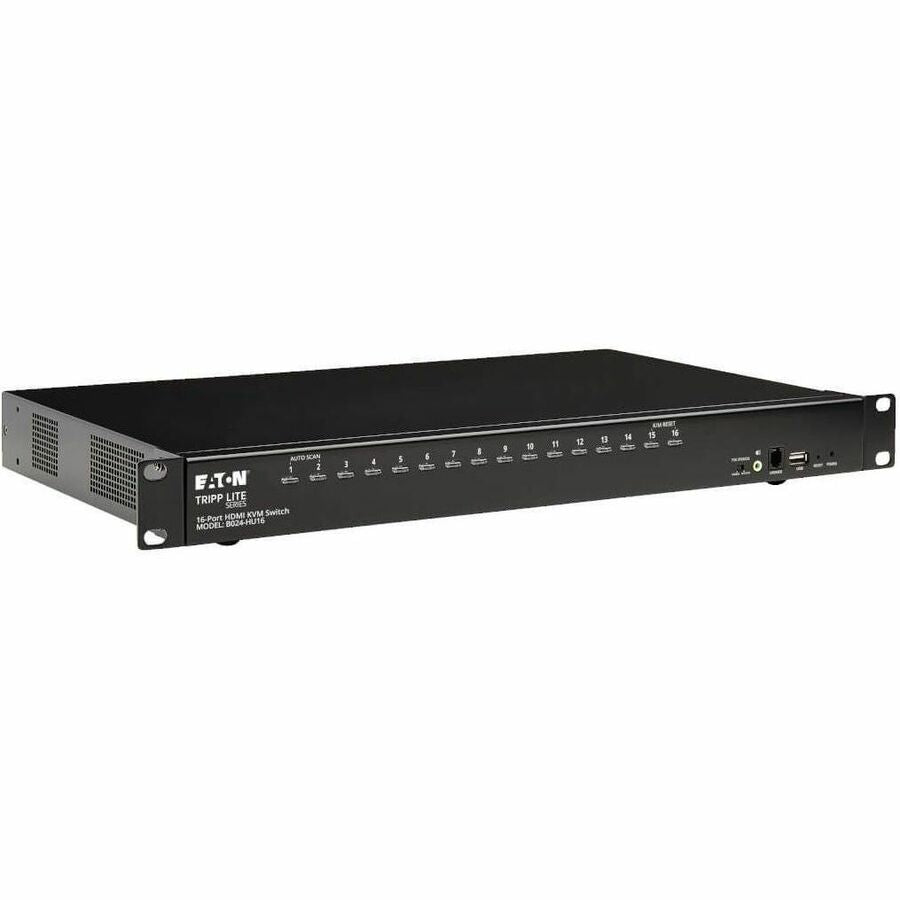

Tripp Lite by Eaton B024-HU16 16-Port HDMI/USB KVM Switch with Audio and Rack Mount

Tripp Lite by Eaton 16-Port HDMI/USB KVM Switch with Audio/Video and USB Peripheral Sharing 1U Rack-Mount

The Tripp Lite B024-HU16 is a professional-grade 16-port HDMI/USB KVM switch designed for seamless control of multiple computers and devices from a single workspace. Its rack-mountable 1U form factor allows easy integration into standard server racks, making it ideal for data centers, editing suites, or multi-system control rooms. This switch supports connections for up to 16 HDMI-enabled computers, gaming consoles, media players, and other peripherals, providing a centralized solution to manage diverse multimedia and computing devices efficiently. Its high-definition video support ensures crystal-clear images at resolutions up to 1920 x 1200 (including 1080p at 60Hz), complemented by 2.1-channel surround sound audio. The switch's robust hardware and compatibility with Windows, Mac, and Linux operating systems make it versatile and reliable for professional environments.
Connecting and switching between computers is straightforward with front-panel pushbuttons, hotkeys, or an intuitive on-screen display (OSD), enabling quick toggling and management. The Auto Scan mode allows for automatic cycling through connected devices, enhancing monitoring and control. The included HDMI and USB cables facilitate rapid setup, and the device’s plug-and-play nature eliminates the need for driver installations, ensuring immediate usability. An integrated two-port USB 2.0 hub permits sharing peripherals like printers, external drives, and webcams across all connected systems, with independent operation and LED indicators for active devices. The B024-HU16 supports cascading up to three levels, allowing control over as many as 256 computers from a single console, which is ideal for expanding workstations or centralized control rooms. Its durable metal housing and included rack-mounting hardware ensure stable installation, while the optional stacking of multiple units supports multi-display configurations for increased productivity. Environmentally friendly and compliant with the Restriction of Hazardous Substances (RoHS), this switch is built to meet modern standards for sustainability and performance. Backed by a two-year limited warranty, the B024-HU16 offers a comprehensive solution for managing multiple HDMI and USB devices efficiently and reliably in professional environments.

Features:

• 16 HDMI ports connect multiple computers and devices to a single monitor, keyboard, and mouse

• Supports cascade setup of up to three levels to control up to 256 computers from one console

• Front-panel pushbuttons, hotkeys, or on-screen display enable quick and easy switching

• Auto Scan mode cycles through connected computers every five seconds for monitoring

• Includes HDMI and USB cables for simple plug-and-play setup

• Built-in two-port USB 2.0 hub shares peripherals such as printers and drives across computers

• Supports high-definition video resolutions up to 1920 x 1200 at 60Hz with 1080p clarity

• Digital audio support with independent audio switching and priority front-panel jacks

• Stackable units support multi-display setups, accommodating up to eight switches

• Heavy-duty metal housing with rack-mount hardware for 1U installation and desktop use

• TAA-compliant and RoHS environmentally friendly design for compliance and sustainability
