UFlex Power A MM11 Electronic Control Package for Single Engine and Station – Mechanical Throttle and Shift

• Private Protocol can bus for data transmission

• Connection of multiple stations up to 4 controls

• Modular System

• Direct communication w/electronic engines (SAE J 1939 or NMEA 2000)

• Plug'N Play connectivity

• Automatic engines synchronization

• Dock Assist

• Fully programmable shift delays

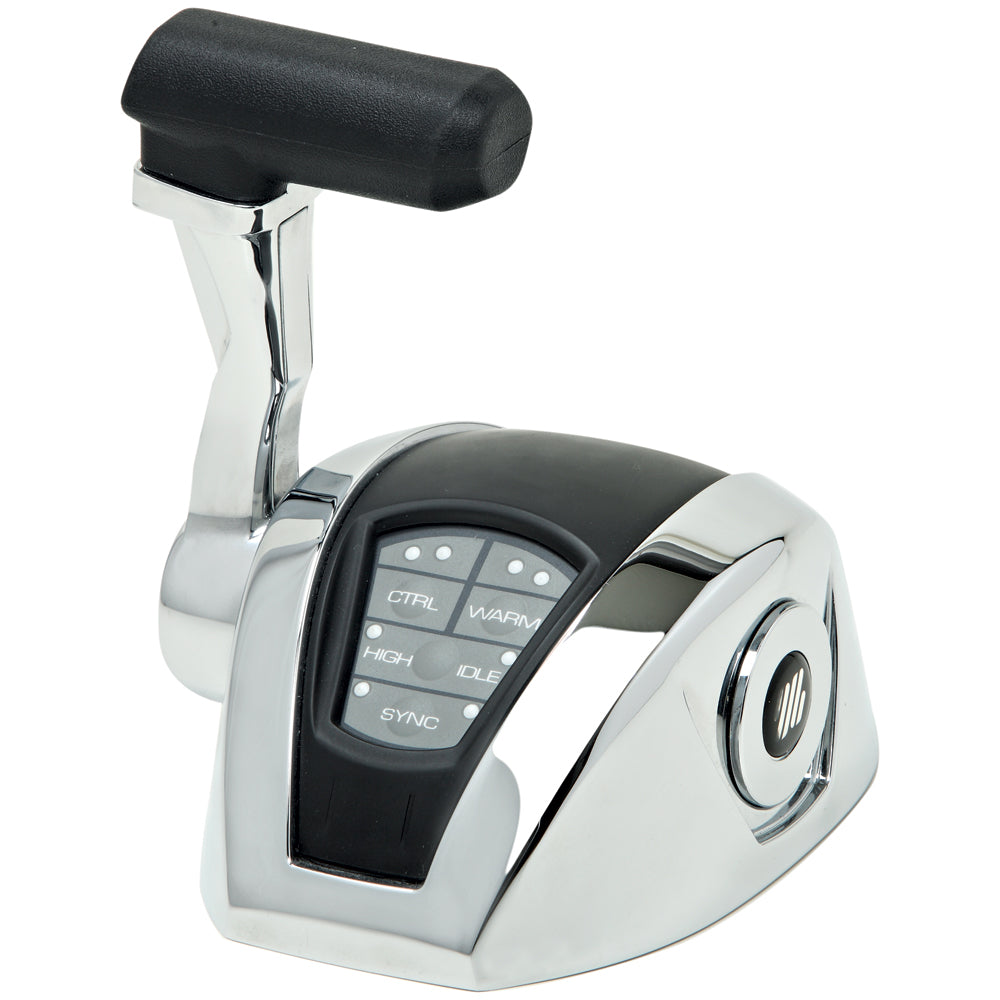

• 42009G - (1) PA2-B1 - Single Lever Control w/o Trim

• 42017F - (1) PA2-CU - Control Unit w/LED Diagnostc & Programming Screen

• 42027J - (2) PA2-MA - Electro Mechanical Actuatorf/Shift and/or Throttle

• 42028L - (1) PA2-NT - Network Terminator

• 42053K - (1) M-P3 - Main Power Supply Cable, 9.8'

• 71021K - (1) CAN-10 - Network Connection Cable 33'

• 73639T - (2) CAN-1 - Network Connection Cable 3'

• 42026G - (1) PA2-PU - Power Supply Unit f/12V Systems

• 42056S - (2) M-PE1 - Power Extension Cable 3.3'

The UFlex Power A MM11 Electronic Control Package offers reliable and advanced control solutions for single-engine vessels with a single station setup. Designed with a modular architecture, this system enables seamless integration of multiple control stations, supporting up to four controls for flexible operation. The package includes a single lever control, control unit with diagnostic and programming capabilities, and electro-mechanical actuators for shift and throttle functions, ensuring precise command over your engine.

Powered by Power A Mark II electronics, the system features a private CAN bus protocol for efficient data transmission, direct communication with electronic engines via SAE J 1939 or NMEA 2000 standards, and plug-and-play connectivity for easy installation. The system supports automatic engine synchronization, simplifying multi-engine management, and includes dock assist for ease of maneuvering in tight spaces. Fully programmable shift delay settings allow customization to match specific operational preferences, enhancing overall vessel control.

The MM11 package includes all necessary components such as control levers, network terminators, power supply cables, and connection cables, providing a comprehensive control solution right out of the box. The control unit's LED diagnostics and programming screen facilitate quick troubleshooting and configuration adjustments, ensuring minimal downtime and optimal performance. This system is ideal for boat owners seeking a dependable, feature-rich electronic control package to improve operational efficiency and safety on the water.

Features:

• Private Protocol CAN bus for efficient data transmission

• Supports connection of up to four control stations

• Modular system for flexible configuration

• Direct electronic engine communication via SAE J 1939 or NMEA 2000

• Plug-and-play connectivity for easy installation

• Automatic engine synchronization for simplified multi-engine control

• Dock assist feature for precise maneuvering

• Fully programmable shift delay settings for customization
