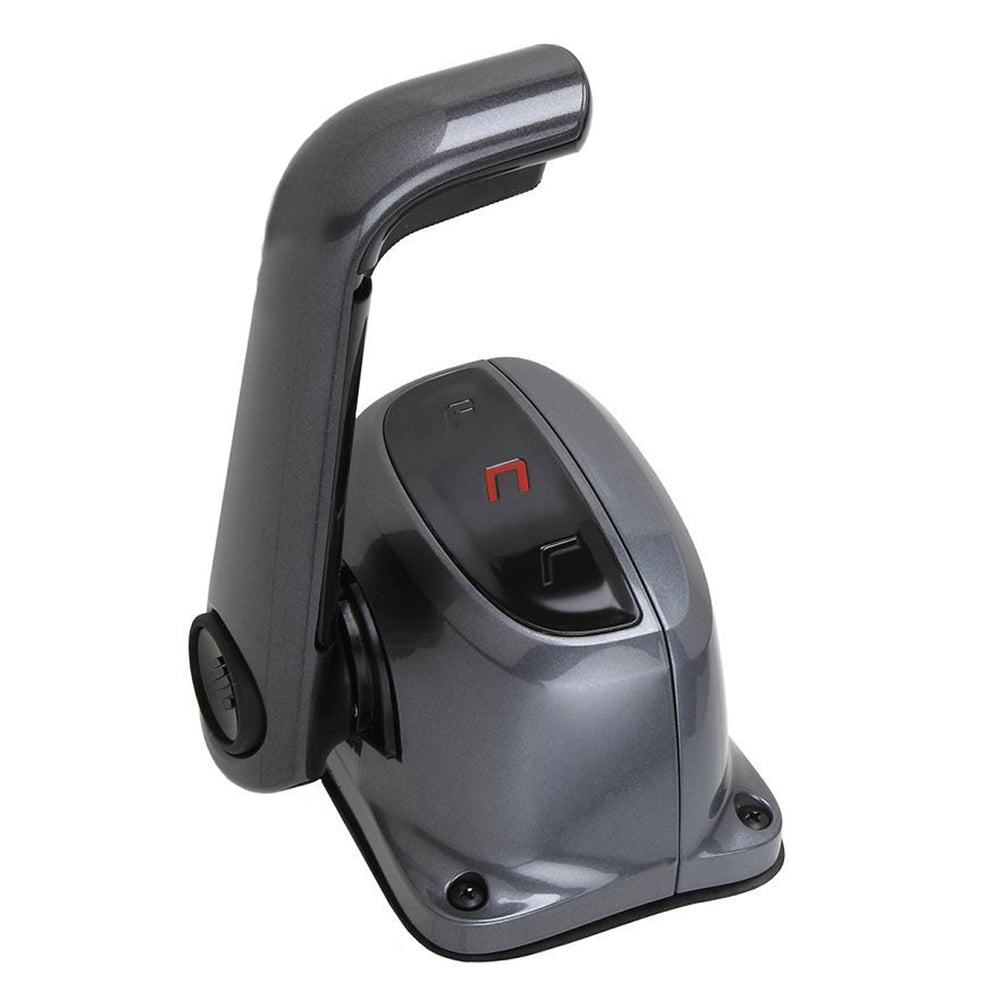

Uflex USA B501B/L Single Lever Top Mount Control with Neutral Lock - Black

Single Lever Top Mount Control w/Neutral Lock - No Trim Switch - Black

In the twin engine installation a single switch will operate both trims. With a focus on efficiency these controls have been specifically designed to improve the functionality of control systems, making the boat easier to control. Single lever / dual action control to operate both with throttle and shift. Suitable for any type of boats with outboard, inboard or I/O power plants.

Features:

• Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling
• Chrome plated high resistance ABS housing control with die cast chrome plated levers
• Push in button disengages shift for warm-up
• X12 neutral safety switch which prevents in-gear starting (optional)
• Exceeds EN ISO 11547 standards when X12 safety switch is installed

For use with all Ultraflex control cables except C4:

• C14 and MACH14 cables require no kit
• for C2, C8 and MACHZero cables the connection kit K59 - 40144C is included
• C5, C16 and MACH5 cables require K60 Kit - 40145E
• C36 and MACH36 cables require K62 Kit - 40157J
• C22 cable requires K61 Kit - 40146G

The Uflex USA B501B/L single lever top mount control offers a reliable and efficient solution for boat control systems, suitable for outboard, inboard, or I/O power plants. Designed with a focus on safety and ease of use, this control features a sleek chrome-plated ABS housing with die-cast chrome levers, ensuring durability and corrosion resistance in marine environments. Its dual-action lever allows for smooth throttle and shift operation, making maneuvering your boat more precise and effortless. The control's push-in button disengages the shift for warm-up, enhancing operational safety during engine start-up, while the optional X12 neutral safety switch prevents accidental gear engagement unless the engine is idling, further improving safety measures.
The control is compatible with most Ultraflex control cables, excluding C4. For C2, C8, and MACHZero cables, the included connection kit K59 simplifies installation. C5, C16, and MACH5 cables require the K60 kit, and C36 or MACH36 cables utilize the K62 kit. The C22 cable connection is supported with the K61 kit, providing versatility across different marine control setups. Exceeding EN ISO 11547 standards when installed with the X12 safety switch, this control ensures reliable performance in demanding marine conditions. Its compact design makes it suitable for a wide range of boats, offering both safety and functionality in a single, streamlined package.

Features:

• Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling

• Chrome plated high resistance ABS housing control with die cast chrome plated levers

• Push in button disengages shift for warm-up

• X12 neutral safety switch prevents in-gear starting (optional)

• Exceeds EN ISO 11547 standards when X12 safety switch is installed

• Compatible with all Ultraflex control cables except C4, with included or optional connection kits for different cable types
