Uflex USA MD32T Tilt MasterDrive Retrofit Kit Steering System for Boats

MD32T with Tilt MasterDrive Retrofit Kit Steering System

Features:

• Eliminates torque at the steering wheel
• Three different selectable levels of power give the boater the desired feeling on the wheel
• Automatically reverts to manual mode in case of power loss
• High efficiency, low Amp draw
• The system always running permits immediate control in any sea conditions Equipped with safety switch ON/OFF (SMART BUTTON)
• Can be used on dual station installations Suitable for use with autopilot
• Low noise
• Voltage: 12VDC
• CE marked in conformity with ABYC P21, ISO 10592 safety standards
• Ignition protected (SAE J-1171 and UNI EN 28846)

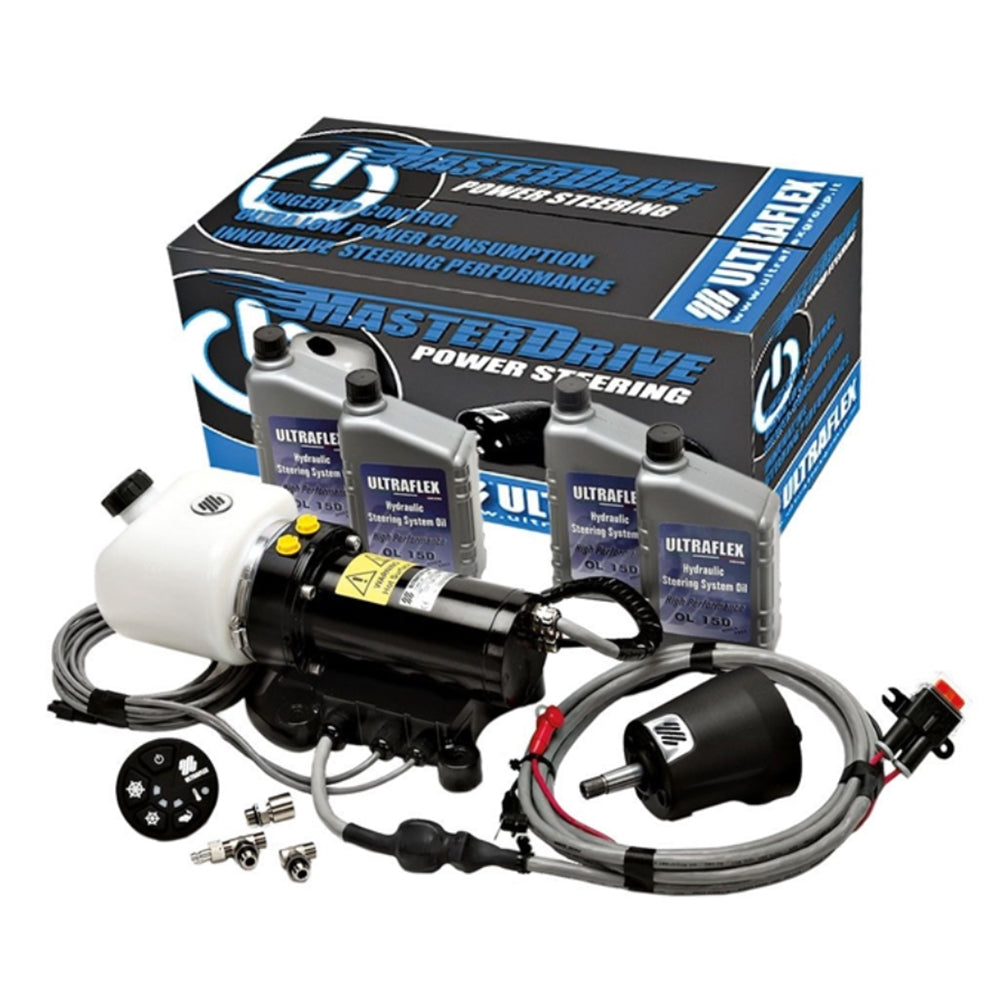

Package Includes

1 UH Master Helm Pump

1 UPMD Power Unit (15 wiring harness included)

1 UCMD User Interface

1 UH32-T-X66 MasterDrive 32cc tilt mount helm with tilt mechanism for power steering.

4 quarts OIL 15 Hydraulic oil

1 Installation manual and fittings

The Uflex USA MD32T Tilt MasterDrive Retrofit Kit Steering System offers reliable and efficient power steering for marine vessels. Designed to eliminate torque at the steering wheel, this system provides a smooth and responsive steering experience. It features three selectable power levels, allowing boaters to customize the steering feel to their preferences. The system automatically switches to manual mode in case of power loss, ensuring continuous control under all conditions. With high efficiency and low amperage draw, it helps conserve boat battery power while delivering consistent performance.

This system is built for versatility and safety, featuring a SMART BUTTON safety switch for convenient ON/OFF control and the ability to be used in dual station installations. It is compatible with autopilot systems, making navigation more precise and automated. The low noise operation enhances comfort during extended use, and the entire setup is designed with safety standards in mind, being CE marked in conformity with ABYC P21 and ISO 10592 safety standards. It is also ignition protected per SAE J-1171 and UNI EN 28846, providing peace of mind during operation.

The package includes an UH Master Helm Pump, a UPMD Power Unit with a 15-wire harness, a UCMD User Interface, and the UH32-T-X66 MasterDrive 32cc tilt mount helm with a tilt mechanism for power steering. Additionally, four quarts of hydraulic oil are provided to ensure proper system operation, along with an installation manual and fittings for easy setup. This comprehensive kit is designed to enhance your boat’s steering capabilities, delivering smooth, reliable, and customizable control for various sea conditions. Trust in Uflex USA’s quality and safety standards for your marine steering system upgrade.

Features:

• Eliminates torque at the steering wheel for a smooth driving experience

• Three selectable power levels for customized steering feel

• Automatic revert to manual mode during power loss

• High efficiency with low amperage draw to conserve battery power

• Always-on operation for immediate control in any sea conditions

• Includes safety switch (SMART BUTTON) for easy ON/OFF control

• Suitable for dual station installations and compatible with autopilot systems

• Low noise operation for comfortable extended use

• Voltage: 12VDC for compatibility with standard marine electrical systems

• CE marked in conformity with ABYC P21 and ISO 10592 safety standards

• Ignition protected according to SAE J-1171 and UNI EN 28846 standards
