The AV hatch lifters are electromechanical products, especially designed for marine use on pleasure boats. They allow full or partial opening and closing of heavy engine hatches, peak tanks, hatch beams etc. By activating a switch, it is possible to lift the hatch to any desired position from closed to full open; an internal self-locking mechanism will maintain the position preventing any accidental hatch closing. In case of a power failure, an emergency device allows for manual opening.
The Uflex AV hatch lifters do not require any maintenance, are easy to install, and are made of materials resistant.
Features:
According to the load required, the AV hatch lifter can be mounted individually, or in twin-cylinder installations for heavier loads. It is also possible to install more than two AV actuators in multiple applications.
Maximum load for single installations: 1200N (120 kg - 265 lbs)
Maximum load for dual installations: 2400N (240 kg - 529 lbs)
Maximum load is recommended not to be exceeded.
Supplied with all mounting hardware.
Stainless steel telescopic ram for manual operation in case of emergency.
Available on request without a manual emergency opening device for high-performance boats.
Circuit breaker to stop accidental overloading of the system and electronic stop at the closed or fully open position.
IP 65 protection rated
Speed: 25mm/sec no load applied, 17 mm/sec maximum load
Current absorption in single installations: 10A at 12V, 5A at 24V
Current absorption in dual installations: 20A at 12V, 10A at 24V
AV 12VDC models are Ignition Protected. UL1500 - ISO8846 approved.
Specifications:
Volt: 12V DC
Stroke: 300mm (12")
Length A (full closed actuator): 677 mm (26.6")
External: 48 mm (1.9")

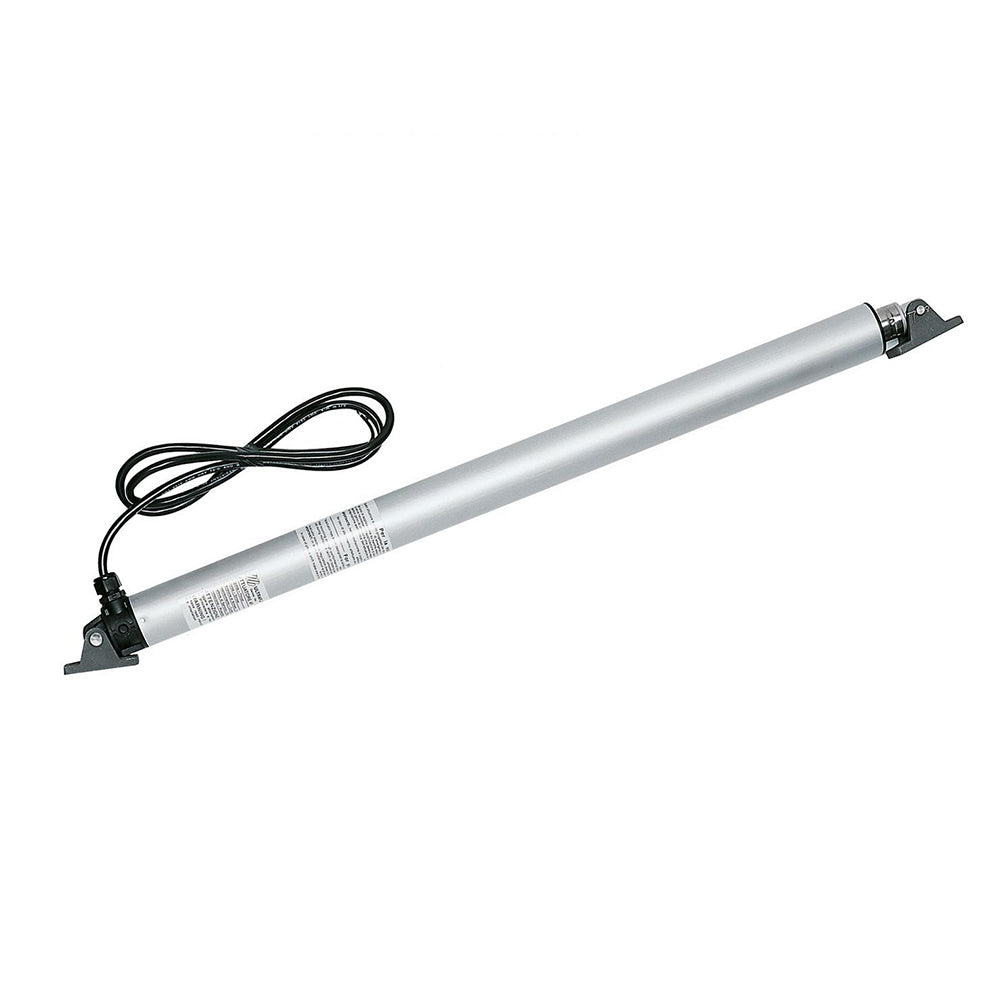

The Uflex USA AV3012 Mechanical Hatchlifter offers a reliable and efficient solution for lifting heavy marine hatches, engine compartments, and access panels with ease. Designed specifically for pleasure boats, this electromechanical hatch lifter allows operators to open or close hatches to any desired position by activating a switch. An internal self-locking mechanism ensures the hatch remains securely in place, preventing accidental closures and providing peace of mind during vessel operation. In case of a power failure, a stainless steel telescopic ram allows for manual operation, ensuring safety and functionality at all times. The hatch lifter is constructed from resistant materials that require no maintenance, making it ideal for marine environments where durability and reliability are essential.
Features:
Mounting options include single or twin-cylinder configurations to accommodate various load requirements, with the possibility of multiple actuators for larger applications.
Maximum load capacity for single installations is 1200 Newtons (approximately 265 pounds), and for dual installations, up to 2400 Newtons (approximately 529 pounds).
Supplied with all necessary mounting hardware for straightforward installation.
Equipped with a manual emergency operation feature via a stainless steel telescopic ram for use during power outages or emergencies.
Includes circuit breaker to prevent accidental overloading and electronic stops to ensure the hatch is fully open or closed.
Rated IP 65 for protection against dust and water ingress, suitable for marine environments.
Operation speed of approximately 25mm/sec without load, decreasing to 17mm/sec under maximum load conditions.
Electrical specifications include current absorption of 10A at 12V and 5A at 24V for single installations, and double those values for dual setups.
The AV 12VDC model is ignition protected and complies with UL1500 and ISO8846 standards, ensuring safety and compliance in marine applications.
Part Number: AV3012 provides a robust 12-inch stroke with a fully closed length of around 26.6 inches, making it suitable for various hatch sizes.
