UFlex USA Power A EM12 Electronic Control Package for Single Engine Dual Station Setup

• Private Protocol can bus for data transmission

• Connection of multiple stations up to 4 controls

• Modular System

• Direct communication w/electronic engines (SAE J 1939 or NMEA 2000)

• Plug'N Play connectivity

• Automatic engines synchronization

• Dock Assist

• Fully programmable shift delays

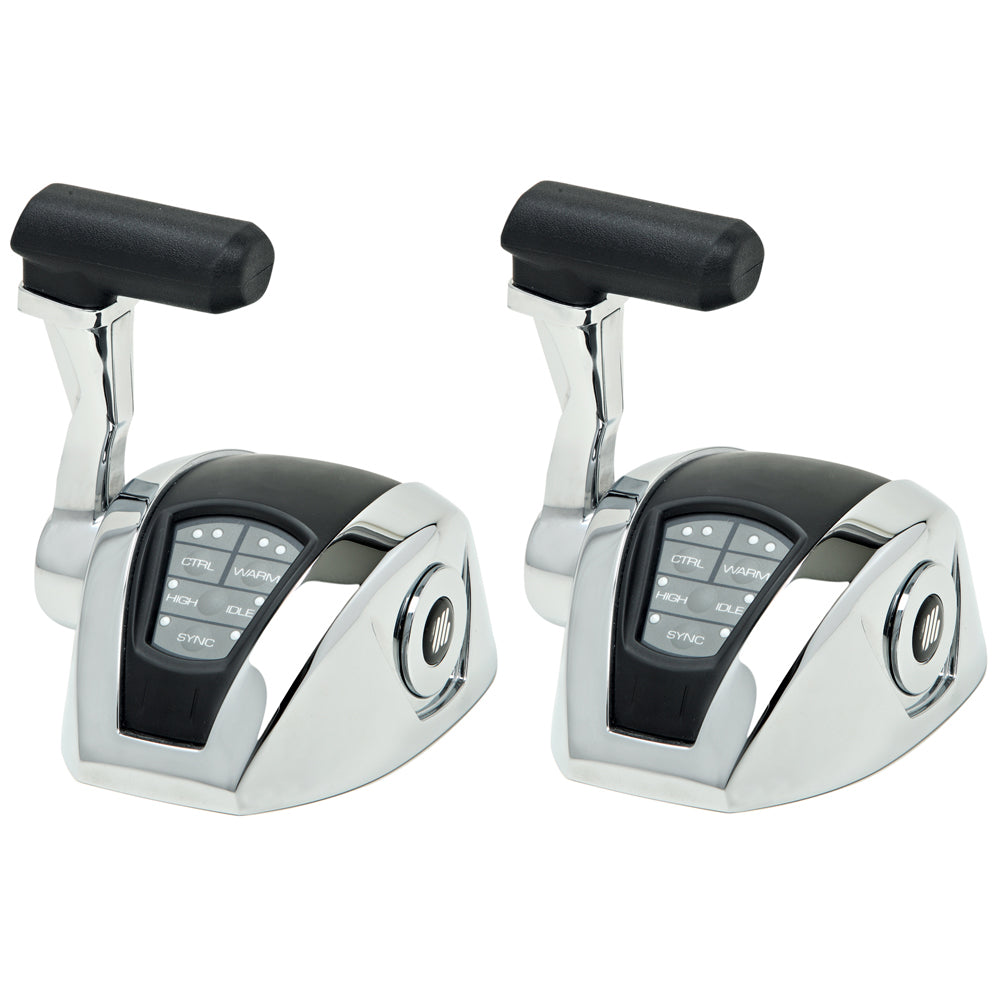

• 42009G - (2) PA2-B1 - Single Lever Control w/o Trim

• 42017F - (1) PA2-CU - Control Unit w/LED Diagnostc & Programming Screen

• 42018H - (1) PA2-VT - V-Throttle f/0-5V Interface

• 42027J - (1) PA2-MA - Electro Mechanical Actuatorf/Shift and/or Throttle

• 42028L - (1) PA2-NT - Network Terminator

• 42029N - (1) T-VT2 - Universal V-Throttle Cable 6.5'

• 42053K - (1) M-P3 - Main Power Supply Cable, 9.8'

• 71021K - (2) CAN-10 - Network Connection Cable 33'

• 73639T - (2) CAN-1 - Network Connection Cable 3'

The UFlex USA Power A EM12 Electronic Control Package provides a comprehensive solution for controlling a single engine at dual stations with electronic throttle and mechanical shift capabilities. Designed for seamless integration, this system features the Power A Mark II electronics control system, which utilizes a private CAN bus protocol for efficient data transmission and supports connection of up to four control stations. Its modular design allows for flexible configuration, ensuring compatibility with various electronic engine protocols such as SAE J1939 and NMEA 2000. The plug-and-play connectivity simplifies installation while offering automatic engine synchronization for smooth operation. The system also includes dock assist functionality and fully programmable shift delays, enhancing maneuverability and control at the helm.

Included in the EM12 package are high-quality components such as dual single lever controls without trim, a control unit with diagnostic and programming LED screen, a V-throttle interface, an electro-mechanical actuator for shift and throttle functions, and network connection cables of various lengths. These components work together to deliver reliable and responsive engine control, making it suitable for a range of marine applications. The system’s robust design and advanced features ensure precise engine management, improved docking, and overall vessel handling.

Ideal for boaters seeking a reliable and easy-to-install electronic control system, the UFlex Power A EM12 provides advanced features combined with straightforward operation. Whether upgrading an existing system or installing a new one, this package offers the necessary components for efficient engine control, enhanced vessel maneuverability, and streamlined system integration, all supported by UFlex USA’s reputation for quality marine control systems.

Features:

• Private CAN bus protocol for efficient data transmission

• Supports connection of up to four control stations

• Modular system for flexible configuration

• Direct communication with electronic engines via SAE J1939 or NMEA 2000

• Plug-and-play connectivity for easy installation

• Automatic engine synchronization for smooth operation

• Dock assist feature for precise maneuvering

• Fully programmable shift delays for customized control
