42026G - (1) PA2-PU - Power Supply Unit f/12V Systems
42056S - (2) M-PE1 - Power Extension Cable 3.3'
The Uflex USA Power A EM21 Electronic Control Package is designed for dual-engine, single-station applications with electronic throttle and mechanical shift operation. This Power A Mark II system combines electronic control components with an electro-mechanical actuation system for coordinated throttle and shift control.
The modular system uses a private protocol CAN bus for data transmission and supports direct communication with electronic engines through SAE J1939 or NMEA 2000. Plug-and-play connectivity, automatic engine synchronization, Dock Assist, and fully programmable shift delays provide configurable control functionality for compatible installations.

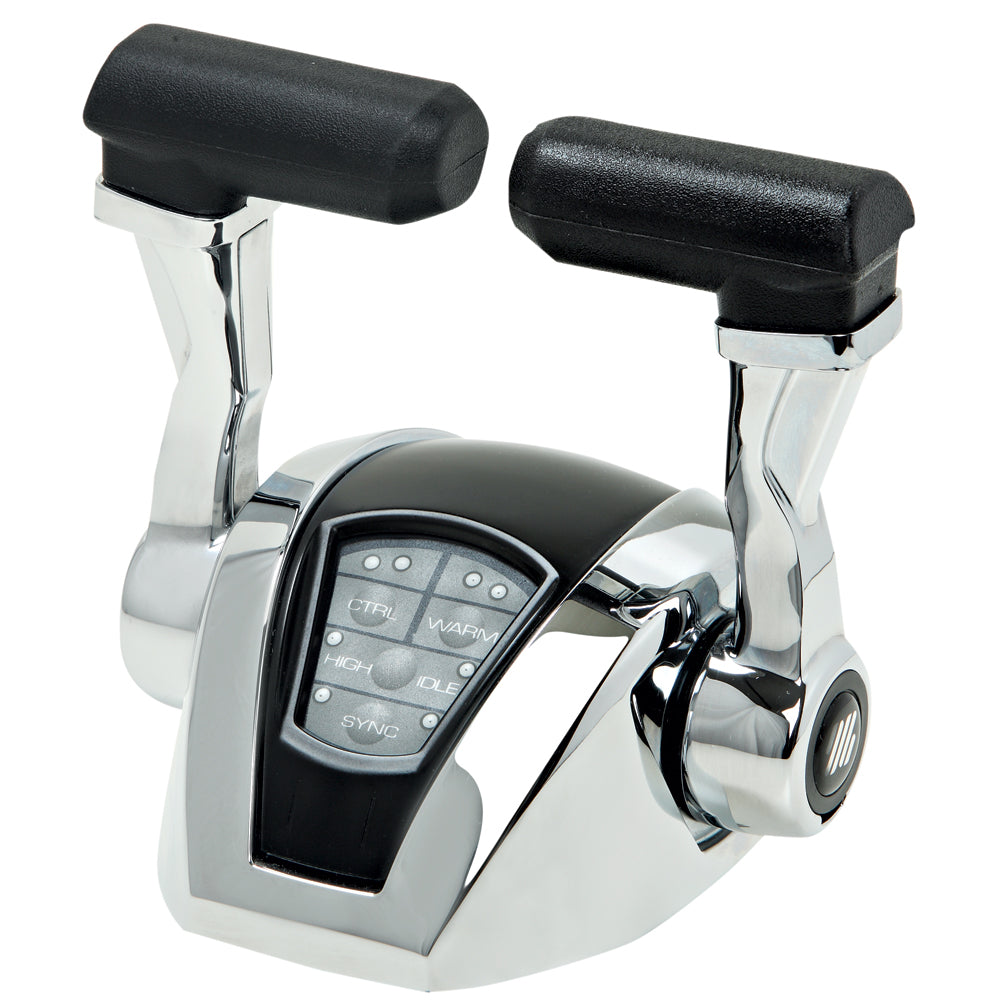

The EM21 package includes a PA2-B2 dual-lever control without trim, PA2-CU control unit with LED diagnostic and programming screen, PA2-VT V-throttle with 0-5V interface, two PA2-MA electro-mechanical actuators for shift and/or throttle, and a PA2-NT network terminator. It also includes two universal V-throttle cables, a main power supply cable, network connection cables, a PA2-PU power supply unit for 12V systems, and two power extension cables.
With connection capability for multiple stations and up to four controls, the Uflex USA Power A EM21 provides a modular foundation for electronic engine control integration. Verify system requirements and installation suitability before purchase.
Features:
Application: Dual-engine, single-station control package
Control Type: Electronic throttle with mechanical shift
System: Uflex Power A Mark II modular electronic control system
Data Transmission: Private protocol CAN bus
Engine Communication: Direct communication with electronic engines through SAE J1939 or NMEA 2000
Connectivity: Plug-and-play connectivity
Station Support: Connection of multiple stations with up to four controls
Synchronization: Automatic engine synchronization
Dock Assist: Included system functionality
Shift Control: Fully programmable shift delays
Control Unit: PA2-CU unit with LED diagnostic and programming screen
Actuation: Two PA2-MA electro-mechanical actuators for shift and/or throttle
