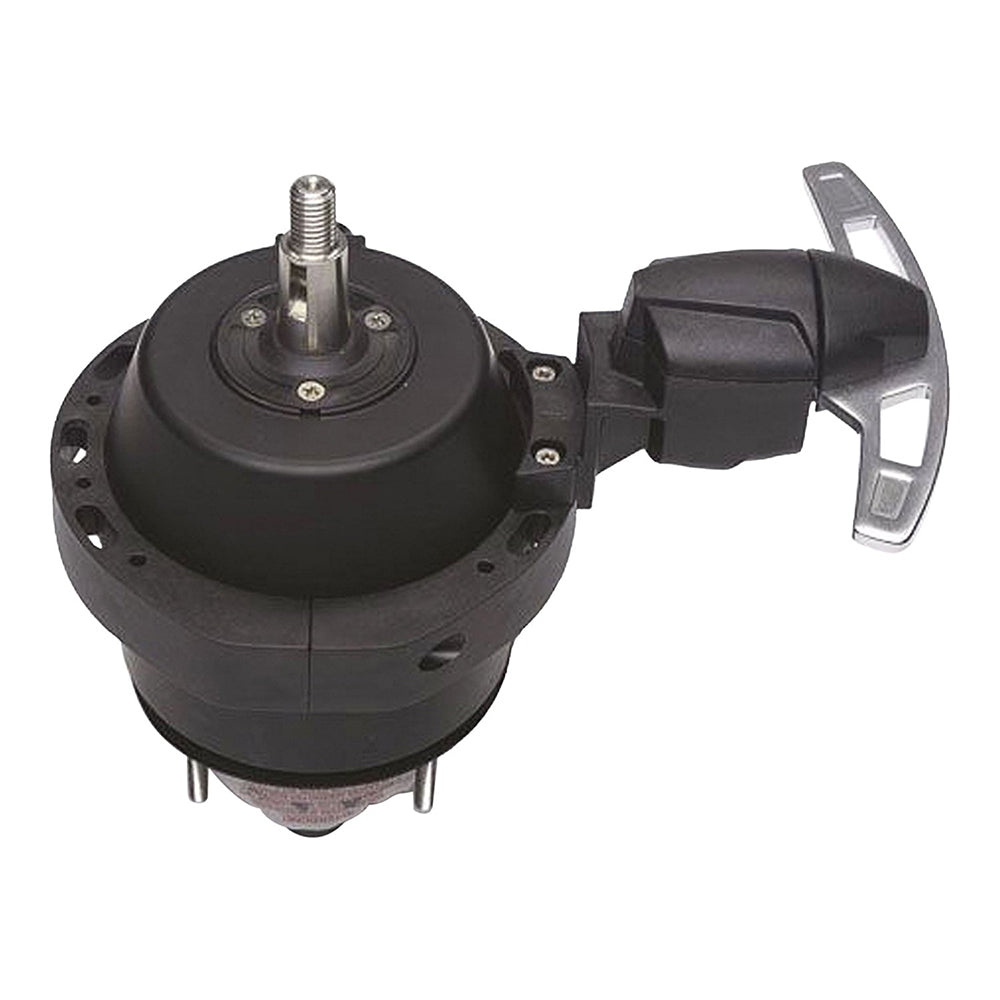

Uflex USA PTS-1 Single Paddle Trim System for Hydraulic and Mechanical Helm Control

Single Paddle Trim System

Single paddle kit including one paddle and the brackets to attach to a tilt or to a front mount helm.

For complete control of engine trim and tilt, trim tabs, jackplates, PowerPole(R) and other on board systems, the innovative Paddle Trim system is the answer.

Adaptable to existing front mount hydraulic and tilt helms, the Paddle Trim is ergonomically designed to allow the driver to make precise adjustments to the attitude of the boat or other systems without removing his hand from the steering wheel.

• Available both in single and dual versions (for either two equal or two different outputs)
• Both single or dual paddle can be positioned at various angles for the most confortable choice
• Equipped with one water proof MOM.ON-OFF-MOM.ON switch ( 2 switches on dual version)
• Max load 5 Amp @ 12VDC
• For loads exceeding 5 Amp we recommend the use of the KTR - 42860S kit relay
• Uflex trim tabs require the use of the KTR - 42860S kit relay
• Suitable for any kind of steering wheel dish. Max wheel dia. 400 mm (15.7)
• Easy to install on the following Ultraflex steering systems:

- front and tilt mount hydraulic helms

- tilt mount mechanical helms

• Wiring harness, labels and mounting hardware kit are included. The mounting plate, which differs between front and tilt mount. Installation, is ordered separately

The Uflex USA PTS-1 Single Paddle Trim System provides precise and intuitive control for engine trim, tilt, and other onboard systems such as trim tabs and jackplates. Designed for easy integration with existing front mount hydraulic and tilt helms, this system allows boat operators to adjust the attitude of their vessel without removing their hands from the steering wheel. The ergonomic paddle design ensures comfortable operation and fine-tuned adjustments, enhancing overall boating control and safety.

Constructed with durability and versatility in mind, the PTS-1 features a waterproof MOM.ON-OFF-MOM.ON switch, enabling reliable operation even in wet conditions. The paddle system is capable of handling up to 5 amps at 12VDC, making it suitable for most onboard applications. For loads exceeding this capacity, the recommended use of the KTR - 42860S relay kit ensures safe and efficient operation. The paddle can be positioned at various angles to accommodate different operator preferences, and it is compatible with any steering wheel dish up to 15.7 inches in diameter, including a wide range of Uflex steering systems.

Installation is straightforward with wiring harnesses, labels, and mounting hardware included in the package. The system's mounting plate is designed specifically for front and tilt mount hydraulic helms, with separate options available for each configuration. Whether you operate a small fishing boat or a larger vessel, the Uflex PTS-1 paddle trim system offers reliable, ergonomic control that enhances your on-water experience and vessel handling accuracy.

Features:

• Single paddle kit includes one paddle and mounting brackets for tilt or front mount helm

• Allows precise control of engine trim, tilt, trim tabs, and jackplates

• Adaptable to existing hydraulic and mechanical tilt helms

• Ergonomic paddle design for comfortable operation without removing hands from the steering wheel

• Positionable at various angles for operator preference

• Waterproof MOM.ON-OFF-MOM.ON switch included for reliable operation

• Maximum load capacity of 5 amps at 12VDC; relay kit recommended for higher loads

• Compatible with steering wheel dishes up to 15.7 inches in diameter

• Easy to install with included wiring harness, labels, and hardware

• Designed for use with Uflex steering systems, front and tilt mount options available
