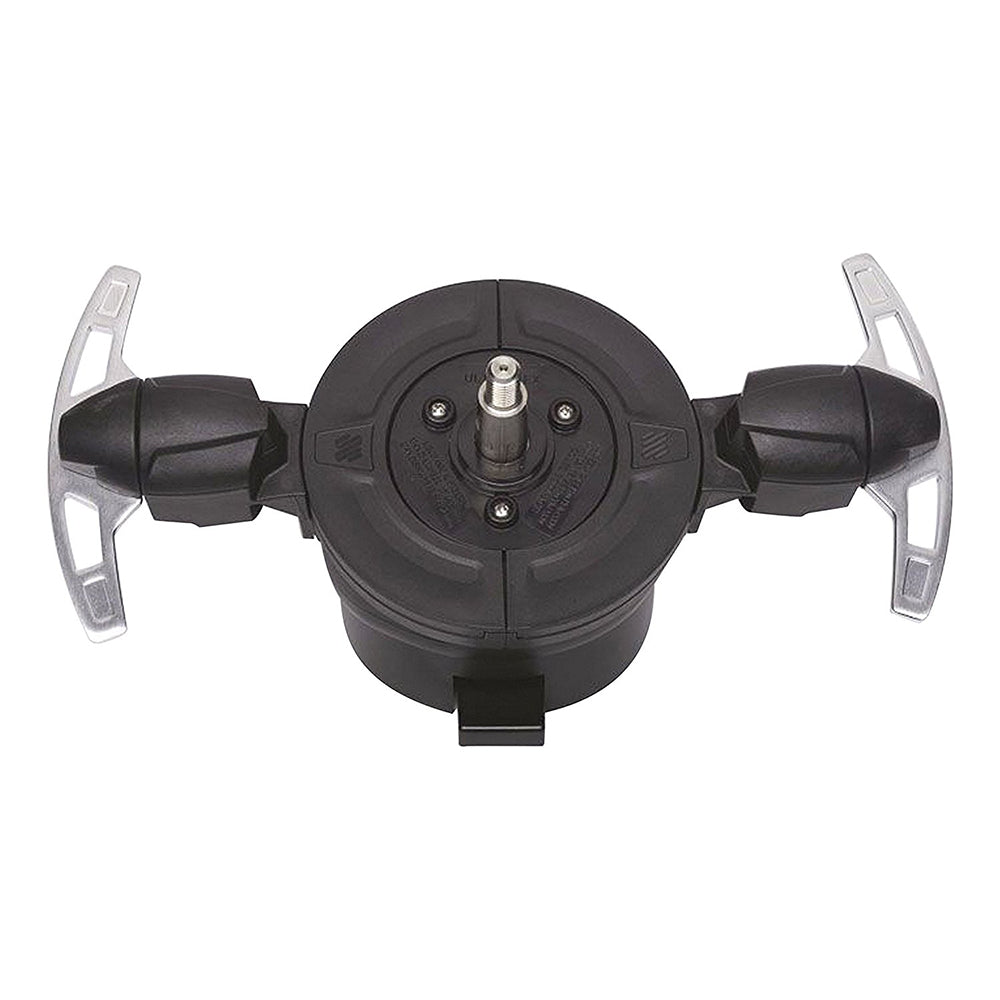

Uflex USA PTS-2 Double Paddle Trim System for Hydraulic and Tilt Helm Control

Double Paddle Trim System

Double paddle kit including two paddles and the brackets to attach it to a tilt or to a front mount helm.

For complete control of engine trim and tilt, trim tabs, jackplates, PowerPole(R) and other on board systems, the innovative Paddle Trim system is the answer.

Adaptable to existing front mount hydraulic and tilt helms, the Paddle Trim is ergonomically designed to allow the driver to make precise adjustments to the attitude of the boat or other systems without removing his hand from the steering wheel.

• Available both in single and dual versions (for either two equal or two different outputs)
• Both single or dual paddle can be positioned at various angles for the most confortable choice
• Equipped with one water proof MOM.ON-OFF-MOM.ON switch ( 2 switches on dual version)
• Max load 5 Amp @ 12VDC
• For loads exceeding 5 Amp we recommend the use of the KTR - 42860S kit relay
• Uflex trim tabs require the use of the KTR - 42860S kit relay
• Suitable for any kind of steering wheel dish. Max wheel dia. 400 mm (15.7)
• Easy to install on the following Ultraflex steering systems:

- front and tilt mount hydraulic helms

- tilt mount mechanical helms

• Wiring harness, labels and mounting hardware kit are included. The mounting plate, which differs between front and tilt mount. Installation, is ordered separately

The Uflex USA PTS-2 Double Paddle Trim System offers precise control of your boat's engine trim, tilt, and other onboard systems through an innovative paddle interface. Designed for seamless integration with existing front mount hydraulic and tilt helms, this system allows the operator to make fine adjustments without removing their hands from the steering wheel, enhancing safety and convenience. The kit includes two paddles and brackets suitable for attachment to a tilt or front mount helm, making it adaptable to various steering configurations. Its ergonomic design ensures comfortable operation, and the paddles can be positioned at different angles to suit individual preferences.

The system comes in both single and dual paddle configurations, accommodating either two identical or different outputs. Each paddle features a waterproof MOM.ON-OFF-MOM.ON switch, with the dual version equipped with two switches for added functionality. The system supports loads up to 5 amps at 12VDC and recommends using a KTR-42860S relay kit for higher loads. It is compatible with any steering wheel dish up to 15.7 inches in diameter, making it suitable for a broad range of boats. Installation is straightforward on Ultraflex systems, including front and tilt mount hydraulic helms, as well as tilt mount mechanical helms. The package includes wiring harnesses, labels, and mounting hardware, with the mounting plate sold separately based on the helm type.

Constructed by Uflex USA, the PTS-2 Paddle Trim System enhances boat handling precision and control, allowing boaters to optimize performance and comfort during operation. Its robust design and compatibility with various steering systems make it a reliable choice for marine applications requiring precise trim adjustments and onboard system management.

Features:

• Double paddle kit with two paddles and mounting brackets for tilt or front mount helms

• Compatible with existing hydraulic and tilt steering systems

• Ergonomically designed paddles for comfortable control and precise adjustments

• Available in single and dual paddle configurations for versatile operation

• Paddles can be positioned at various angles for user preference

• Waterproof MOM.ON-OFF-MOM.ON switches for reliable operation

• Supports loads up to 5 amps at 12VDC; recommended relay for higher loads

• Suitable for steering wheel dishes up to 15.7 inches (400 mm) in diameter

• Easy to install on Ultraflex hydraulic and mechanical steering systems

• Includes wiring harness, labels, and hardware; mounting plate sold separately
