SKU:35946

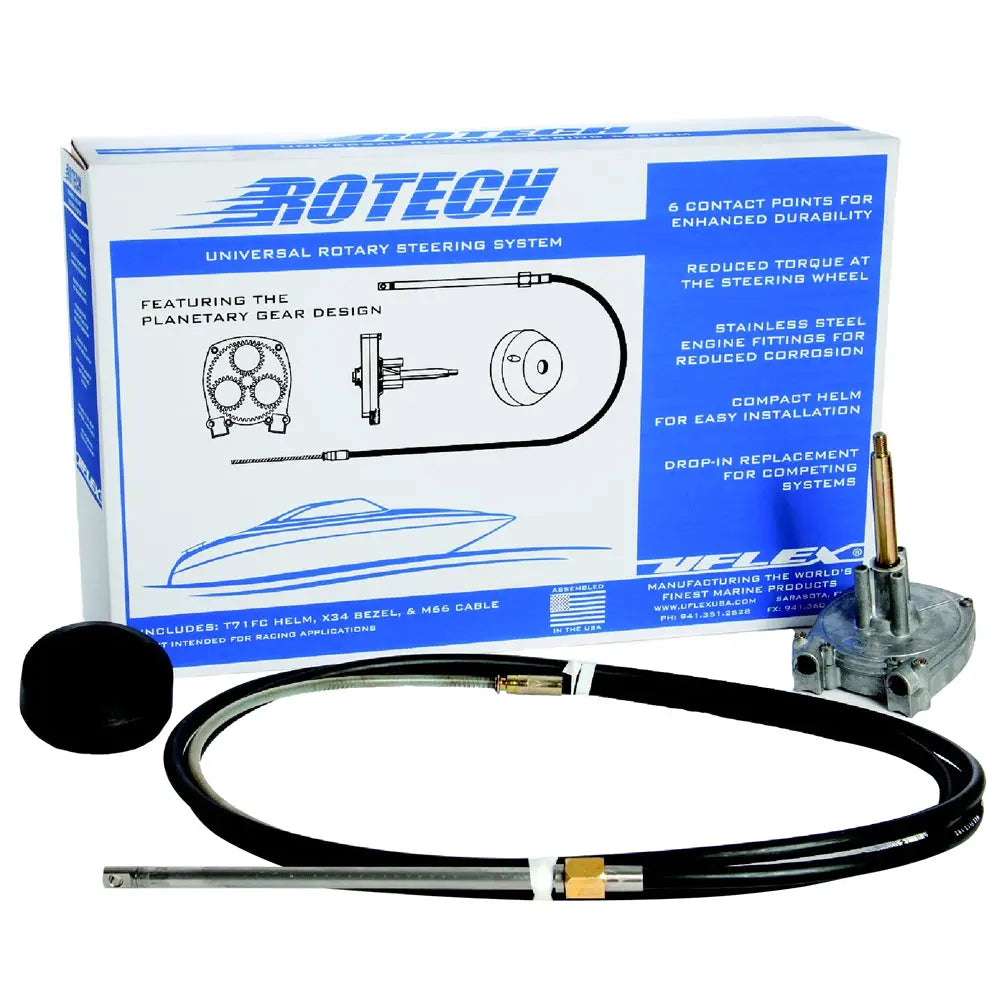

Uflex USA Rotech 11' Rotary Steering System Package with Helm, Bezel, and Cable

Uflex USA Rotech 11' Rotary Steering System Package with Helm, Bezel, and Cable

Regular price $172.99 USD
Sale price $172.99 USD Regular price
Sale Sold out
Shipping calculated at checkout.
ROTECH STEERING SYSTEM

ROTECH - X11
T71FC - helm
X34 - 90 bezel
M66 - 11' steering cable

UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX:

A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.

FEATURES AND TECHNICAL SPECIFICATIONS:
  • Fast connect, simple installation
  • All stainless steel cable output ends
  • Corrosion resistant materials
  • Particulary suitable where clearance is limited
  • Standard 3/4" tapered shaft
  • Lock-to-lock steering wheel turns: approx. 3,8
  • Stroke: 9" (228 mm)
  • Maximum allowable steering wheel diameter: 16" (406 mm)
  • Minimum steering cable bend radius: 7.9" (200 mm)
  • Minimal feedback
  • Compact for mounting
  • T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat
  • For boats faster than 50 mph the twin cable steering system T72FC is recommended
  • Exceeds EN 28848 safety standards
  • Exceeds ABYC P17 safety standards



**The wheel is not included

The Uflex USA Rotech 11' rotary steering system offers a comprehensive solution for replacing or upgrading your boat's steering setup. This package includes a high-quality helm, a bezel, and an 11-foot steering cable, providing a reliable and corrosion-resistant steering mechanism suitable for a wide range of marine vessels. Designed for quick and straightforward installation, the kit features a fast connect system that minimizes setup time while ensuring a secure fit. The all stainless steel cable output ends enhance durability and resistance to harsh marine environments, making this system ideal for boats operating in saltwater conditions. The compact design allows for easy mounting even in limited clearance areas, ensuring versatility for different boat configurations. The T71FC steering system is compatible with standard 3/4-inch tapered shafts and is engineered to deliver minimal feedback for smooth, precise steering. With a stroke of 9 inches and a lock-to-lock turning angle of approximately 3.8 turns, it provides responsive control suitable for boats traveling up to 50 mph. The system exceeds both EN 28848 and ABYC P17 safety standards, ensuring a high level of safety and reliability. It is particularly suitable for applications where space is constrained and offers a robust solution for replacing older steering systems without extensive modifications. Note that the steering wheel is not included, and this kit is not recommended for boats with engines exceeding the maximum horsepower rating or for vessels exceeding certain speed thresholds. Overall, the Uflex Rotech 11' rotary steering package delivers durability, ease of installation, and safety features essential for confident vessel operation.

Features:

  • Fast connect, simple installation design
  • All stainless steel cable output ends for corrosion resistance
  • Suitable for limited clearance mounting areas
  • Standard 3/4-inch tapered shaft compatibility
  • Lock-to-lock steering wheel turns: approximately 3.8 turns
  • Stroke length of 9 inches (228 mm)
  • Maximum steering wheel diameter: 16 inches (406 mm)
  • Minimum cable bend radius: 7.9 inches (200 mm)
  • Minimal steering feedback for smooth operation
  • Exceeds EN 28848 and ABYC P17 safety standards

Only 2 piece in stock!
