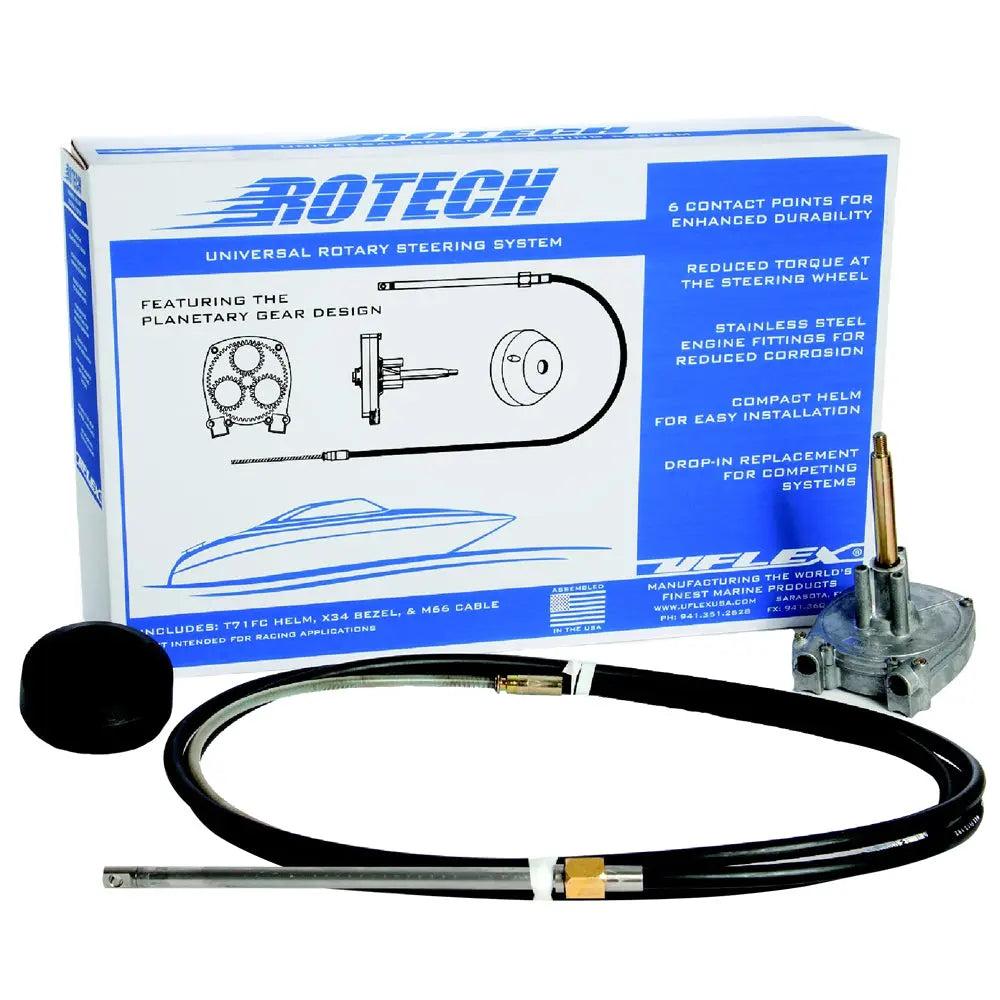

UFlex USA Rotech 14' Rotary Steering System Package with Cable, Bezel, and Helm

ROTECH STEERING SYSTEM

ROTECH - X14
T71FC - helm
X34 - 90 bezel
M66 - 14' steering cable

UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX:

A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.

FEATURES AND TECHNICAL SPECIFICATIONS:

• Fast connect, simple installation

• All stainless steel cable output ends

• Corrosion resistant materials

• Particulary suitable where clearance is limited

• Standard 3/4" tapered shaft

• Lock-to-lock steering wheel turns: approx. 3,8

• Stroke: 9" (228 mm)

• Maximum allowable steering wheel diameter: 16" (406 mm)

• Minimum steering cable bend radius: 7.9" (200 mm)

• Minimal feedback

• Compact for mounting

• T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat

• For boats faster than 50 mph the twin cable steering system T72FC is recommended

• Exceeds EN 28848 safety standards

• Exceeds ABYC P17 safety standards

**The wheel is not included

The UFlex USA Rotech 14' Rotary Steering System is designed for reliable and efficient steering control on a variety of boats. This comprehensive kit includes a helm, bezel, and 14-foot steering cable, providing a convenient replacement solution that simplifies installation. The system features a quick-connect mechanism and corrosion-resistant stainless steel cable ends, ensuring durability and ease of setup in marine environments. Its compact design makes it suitable for boats with limited mounting space, while the standard 3/4-inch tapered shaft ensures compatibility with most steering wheels.
Built to meet and exceed safety standards such as EN 28848 and ABYC P17, this steering system offers minimal feedback for smoother handling. The stroke length of 9 inches and lock-to-lock steering wheel turns of approximately 3.8 ensure precise control, even at higher speeds. The maximum steering wheel diameter recommended is 16 inches, accommodating a range of wheel sizes for versatile installation. Designed for boats with engines not exceeding the maximum horsepower rating, this system is ideal for recreational vessels traveling at speeds up to 50 mph. For faster boats, UFlex recommends the twin cable T72FC model for enhanced performance and safety.
Constructed with corrosion-resistant materials, the Rotech 14' rotary steering system guarantees long-lasting performance in harsh marine conditions. Its minimal cable bend radius of 7.9 inches and the ability to fit in tight spaces make it a versatile choice for various boat configurations. Whether replacing an aging steering system or installing on a new vessel, this kit offers a straightforward, reliable solution that meets rigorous safety and quality standards, ensuring confident handling on the water.

Features:

• Fast connect, simple installation for quick setup

• All stainless steel cable output ends for durability

• Corrosion-resistant materials suitable for marine environments

• Ideal for boats with limited clearance space

• Standard 3/4-inch tapered steering shaft compatibility

• Approximately 3.8 lock-to-lock steering wheel turns for precise control

• Stroke length of 9 inches (228 mm) for responsive steering

• Suitable for steering wheels up to 16 inches in diameter

• Minimum cable bend radius of 7.9 inches (200 mm) for flexible routing

• Minimal feedback for smooth handling

• Compact design for ease of mounting

• Meets EN 28848 and ABYC P17 safety standards
