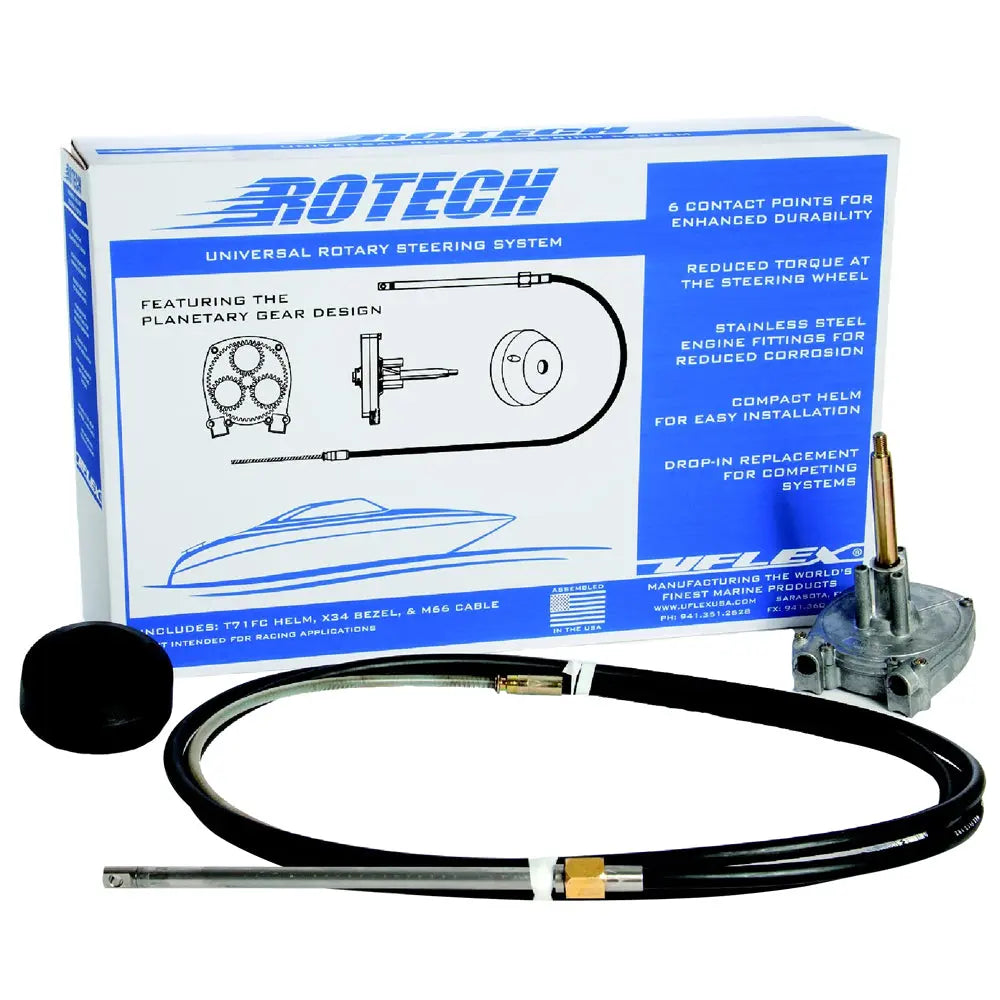

UFlex USA Rotech 16' Rotary Steering System Package with Cable, Bezel, and Helm

ROTECH STEERING SYSTEM

ROTECH - X16
T71FC - helm
X34 - 90 bezel
M66 - 16' steering cable

UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX:

A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.

FEATURES AND TECHNICAL SPECIFICATIONS:

• Fast connect, simple installation

• All stainless steel cable output ends

• Corrosion resistant materials

• Particulary suitable where clearance is limited

• Standard 3/4" tapered shaft

• Lock-to-lock steering wheel turns: approx. 3,8

• Stroke: 9" (228 mm)

• Maximum allowable steering wheel diameter: 16" (406 mm)

• Minimum steering cable bend radius: 7.9" (200 mm)

• Minimal feedback

• Compact for mounting

• T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat

• For boats faster than 50 mph the twin cable steering system T72FC is recommended

• Exceeds EN 28848 safety standards

• Exceeds ABYC P17 safety standards

**The wheel is not included

The UFlex USA Rotech 16' Rotary Steering System is an all-in-one kit designed for easy installation and reliable performance on a variety of boats. This package includes a high-quality helm, bezel, and 16-foot steering cable, providing a complete solution for replacing or upgrading existing steering systems. Crafted from corrosion-resistant materials, the system is built to withstand harsh marine environments, ensuring longevity and dependable operation. Its fast connect design simplifies installation, saving time and effort during setup. The system features stainless steel cable output ends for durability and corrosion resistance, making it suitable for boats exposed to saltwater conditions. Its compact design allows for versatile mounting options, even in limited clearance spaces, making it an excellent choice for a range of vessel configurations. The steering system is compatible with standard 3/4-inch tapered shafts and provides approximately 3.8 lock-to-lock turns for precise control. With a stroke length of 9 inches, this system offers smooth and responsive steering, optimized for boats that do not exceed specified horsepower ratings. The maximum steering wheel diameter supported is 16 inches, ensuring a comfortable and manageable steering experience. Designed to meet and exceed EN 28848 and ABYC P17 safety standards, the UFlex Rotech 16' Rotary Steering System ensures safety and reliability during operation. It is particularly suited for vessels traveling up to 50 mph, with a recommended twin cable option for faster boats. Please note, the steering wheel is not included with this package, allowing you to choose the wheel that best fits your vessel's style and size. Overall, this kit provides a durable, easy-to-install solution for maintaining smooth, responsive steering on your boat, backed by quality materials and safety standards that ensure peace of mind on the water.

Features:

• Fast connect design for simple and quick installation

• All stainless steel cable output ends for enhanced durability

• Corrosion resistant materials suitable for harsh marine environments

• Compact design ideal for limited clearance mounting

• Standard 3/4-inch tapered shaft compatibility

• Approximately 3.8 lock-to-lock turns for precise steering control

• Stroke length of 9 inches for smooth operation

• Supports maximum steering wheel diameter of 16 inches

• Exceeds EN 28848 and ABYC P17 safety standards

• Suitable for boats up to 50 mph; twin cable recommended for faster vessels
