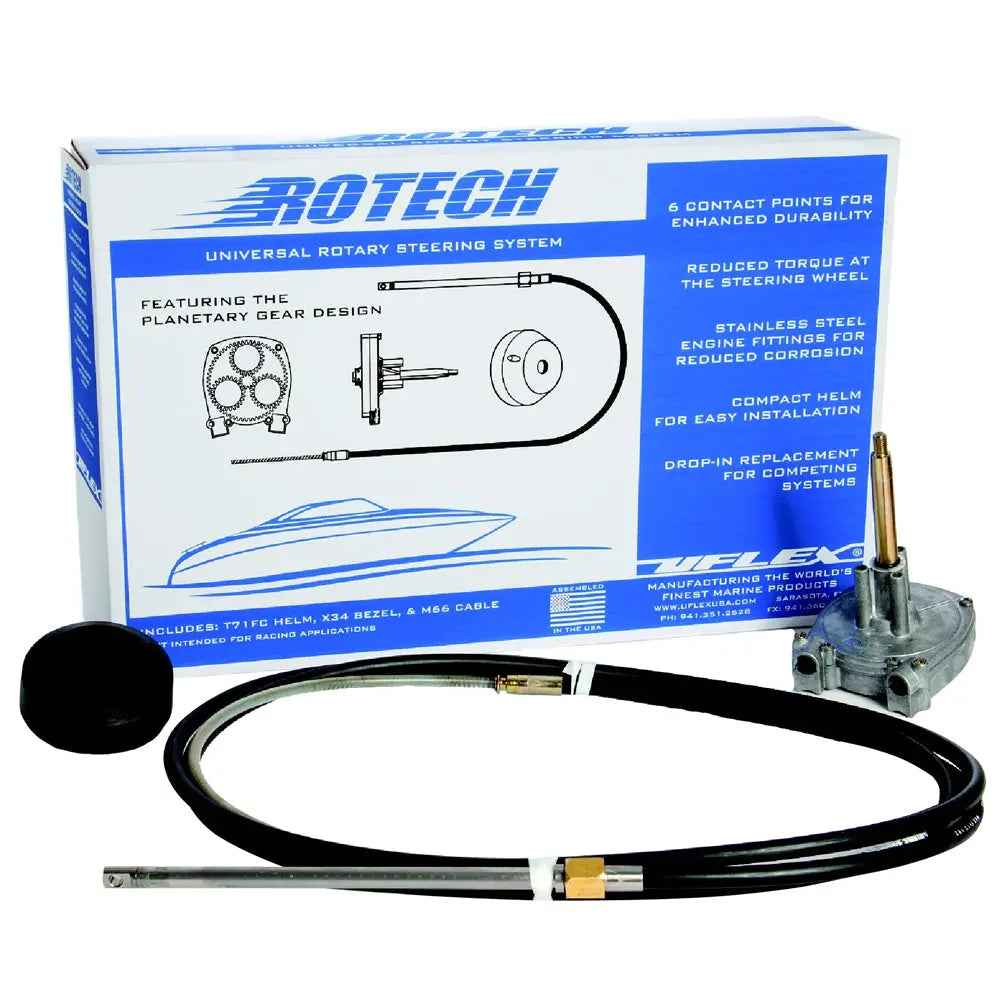

UFlex USA Rotech 20' Rotary Steering System Package with Helm, Bezel, and Cable

ROTECH STEERING SYSTEM

ROTECH - X20
T71FC - helm
X34 - 90 bezel
M66 - 20' steering cable

UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX:

A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.

FEATURES AND TECHNICAL SPECIFICATIONS:

• Fast connect, simple installation

• All stainless steel cable output ends

• Corrosion resistant materials

• Particulary suitable where clearance is limited

• Standard 3/4" tapered shaft

• Lock-to-lock steering wheel turns: approx. 3,8

• Stroke: 9" (228 mm)

• Maximum allowable steering wheel diameter: 16" (406 mm)

• Minimum steering cable bend radius: 7.9" (200 mm)

• Minimal feedback

• Compact for mounting

• T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat

• For boats faster than 50 mph the twin cable steering system T72FC is recommended

• Exceeds EN 28848 safety standards

• Exceeds ABYC P17 safety standards

**The wheel is not included

The UFlex USA Rotech 20' Rotary Steering System package offers a comprehensive solution for replacing or upgrading your boat's steering. Designed with ease of installation in mind, this kit includes a helm, bezel, and a 20-foot steering cable, making it suitable for a wide range of marine applications. The system features a fast connect design, allowing for quick and straightforward installation, which minimizes downtime and simplifies maintenance. All cable output ends are made of stainless steel, ensuring durability and resistance to corrosion in harsh marine environments. The components are constructed from corrosion-resistant materials, providing longevity and reliable performance even in saltwater conditions. The system's compact design makes it ideal for boats with limited mounting space, and it is compatible with standard 3/4-inch tapered shafts. The steering system offers approximately 3.8 lock-to-lock turns, with a stroke length of 9 inches, and is capable of handling steering wheels up to 16 inches in diameter. It features a minimum cable bend radius of 7.9 inches, reducing stress on the cable and improving steering responsiveness. This package is suitable for boats traveling up to 50 mph, though for faster vessels, the twin cable T72FC system is recommended. The UFlex Rotech system exceeds EN 28848 and ABYC P17 safety standards, ensuring safety and reliability during operation. Please note that the steering wheel is not included with this package. Designed for ease of use and durability, the UFlex Rotech 20' Rotary Steering System is an excellent choice for boat owners seeking a reliable, corrosion-resistant, and easy-to-install steering solution that meets rigorous safety standards.

Features:

• Fast connect, simple installation for quick setup

• All stainless steel cable output ends for durability

• Corrosion-resistant materials suitable for harsh marine environments

• Ideal for limited clearance spaces on boats

• Standard 3/4-inch tapered shaft compatibility

• Approximately 3.8 lock-to-lock steering wheel turns

• Stroke length of 9 inches (228 mm)

• Supports steering wheels up to 16 inches in diameter

• Minimum steering cable bend radius of 7.9 inches (200 mm)

• Minimal feedback for precise steering control

• Compact design for easy mounting

• Exceeds EN 28848 and ABYC P17 safety standards

• Includes helm, bezel, and 20-foot steering cable, wheel not included
