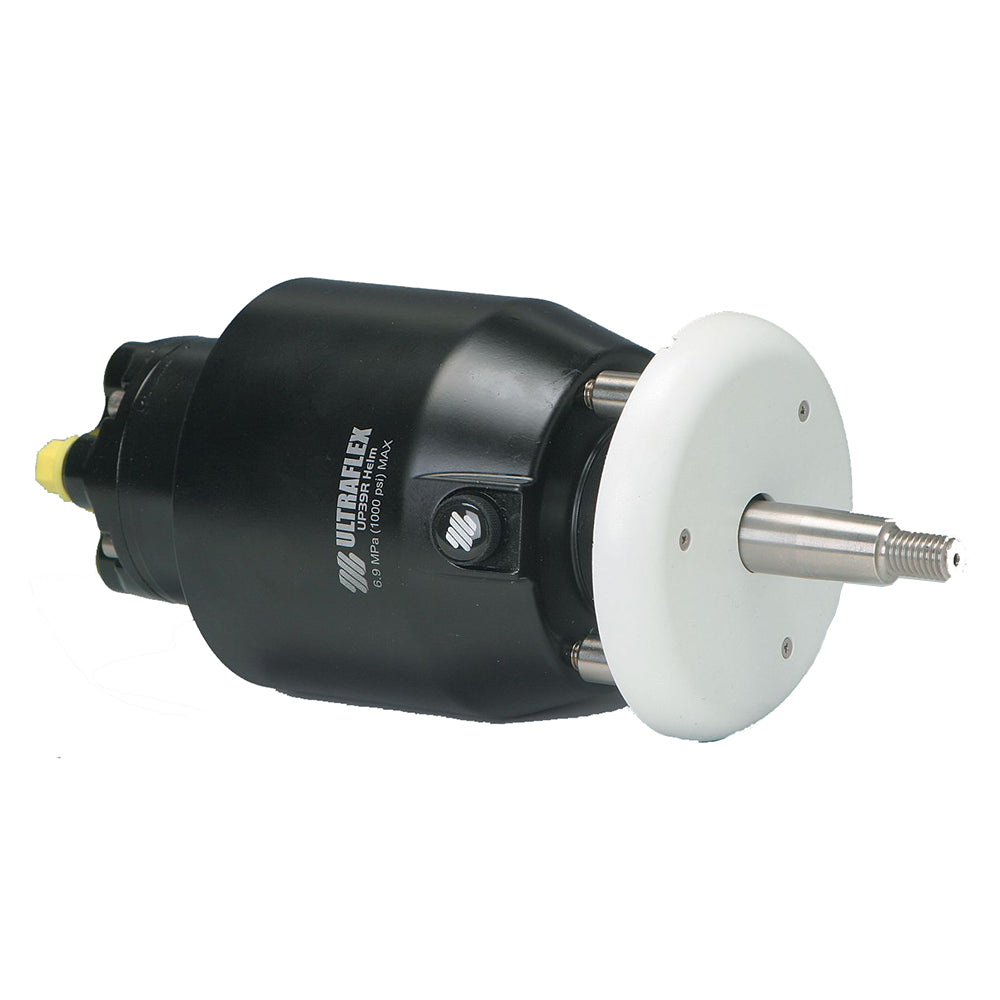

Uflex USA UP28R Rear Mount Helm with 1.7 cu in Displacement and 3/4 inch Tapered Stainless Steel Shaft

UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel Shaft

Features:

• Available in four different displacement sizes
• Compact design
• Ball bearing piston race
• Built-in lock valve for positive rudder lock
• Integral relief valve for over-pressure protection
• 3/4 tapered stainless steel shaft
• Easily accessible lock valve and shaft seal for replacement
• Cast iron cylinder rotor for greater durability and longer life
• 1/4" NPT fitting for 3/8" tube
• Includes 90 adjustable fittings for 3/8 tube and white bezel
• UP45R pump is ideal for double cylinder outboard applications
• UP45 pump is available also for inboard application
• X68 (optional) - 40894Z Chrome bezel
• KITF (optional) - 39664Y Remote fill adapter

Specifications:

• Mounting: Retro-cruscotto
• Displacement/Revolution: 28 cc-1.7 cu in
• # of Pistons: 5
• Relief Valve Setting: 70 Bar - 1000 PSI
• Maximum Wheel Diameter: 710mm - 28"
• Weight: 5kg - 11 lbs.

The Uflex USA UP28R Rear Mount Helm is designed for reliable marine steering control, offering a compact and durable solution for various boat configurations. Its 1.7 cubic inch displacement ensures smooth operation, making it suitable for double cylinder outboard applications and inboard systems. The helm features a 3/4 inch tapered stainless steel shaft, providing strength and corrosion resistance essential for marine environments. Its cast iron cylinder rotor enhances durability and extends the lifespan of the component, ensuring long-term performance in demanding conditions. The helm also includes a built-in lock valve for positive rudder lock and an integral relief valve for over-pressure protection, contributing to overall safety and system integrity.

Features:

• Available in four different displacement sizes to suit various boat steering requirements

• Compact design for easy installation in limited spaces

• Ball bearing piston race for smooth and responsive steering

• Built-in lock valve provides positive rudder locking for safety

• Integral relief valve offers over-pressure protection

• 3/4 inch tapered stainless steel shaft for strength and corrosion resistance

• Easily accessible lock valve and shaft seal for maintenance and replacement

• Cast iron cylinder rotor for greater durability and longer service life

• Includes 90 adjustable fittings for 3/8 inch tube connections and a white bezel for a clean look

• Ideal for double cylinder outboard and inboard applications
