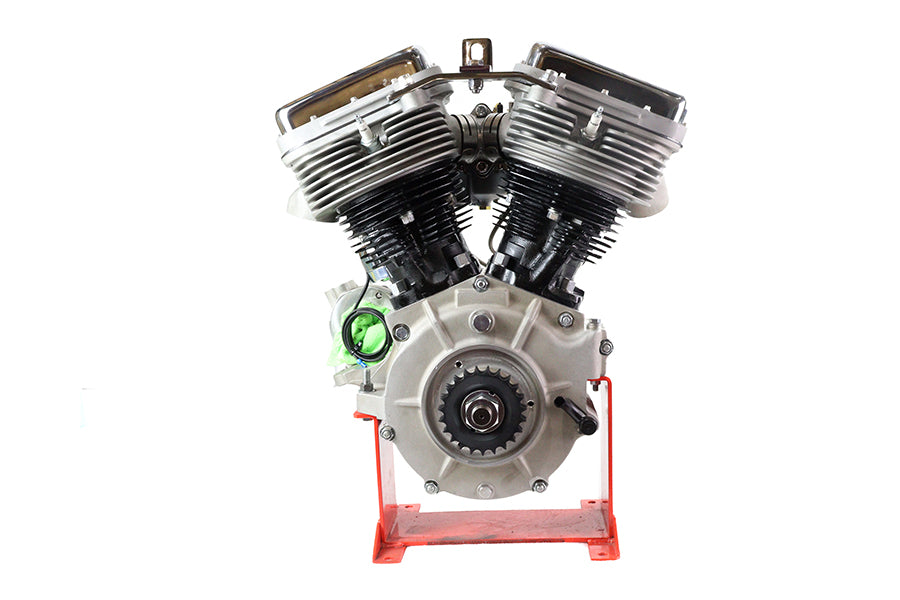

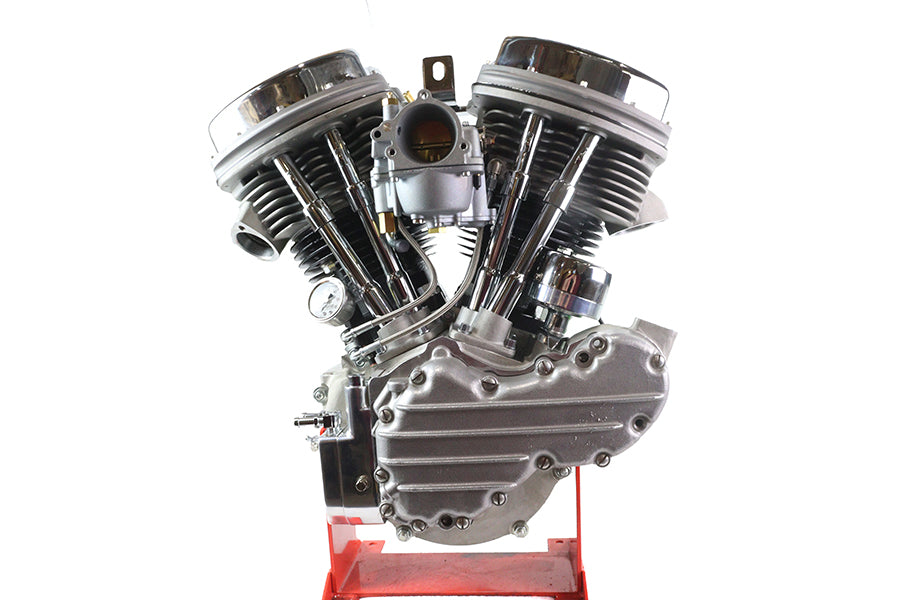

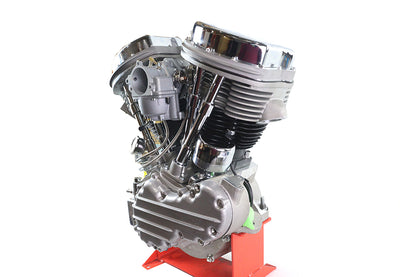

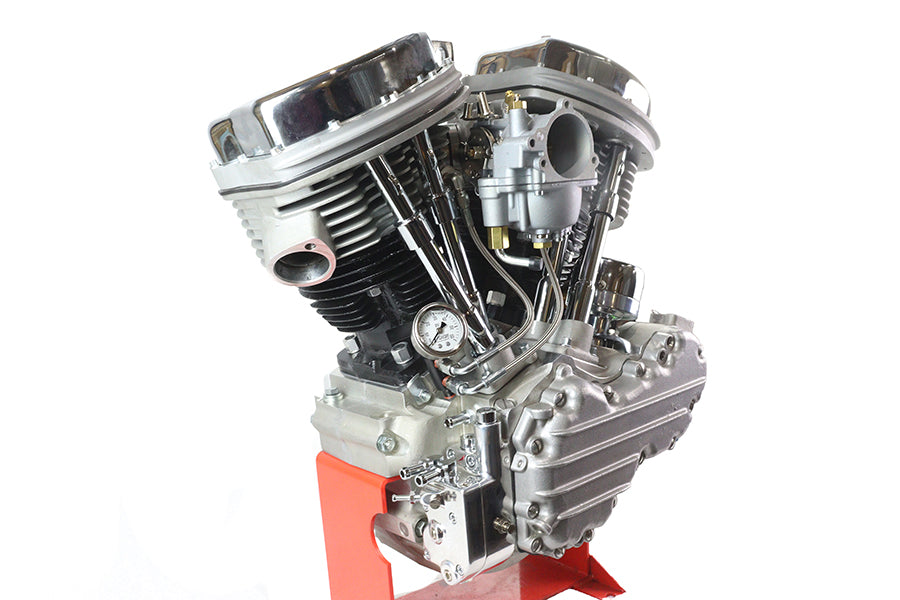

Ultima Bastardo Panhead 88-Inch Engine Assembly

Bastardo engine assemnly is fitted with Shovelhead 3-5/8 inch bore cylinders with 4-1/4 inch stroke combined to create an 88 cubic inch engine. OKO shorty carburetor is installed and tuned.

The Ultima Bastardo Panhead 88-Inch Engine Assembly is assembled and tested in the USA using components from the Ultima Motor program. The engine is fitted with braided lines and a pressure gauge, then pre-run to check oil pressure and timing. A carburetor is included, and a Manufacturer's Statement of Origin is supplied.

This Panhead with Shovelhead power features Shovelhead intake and exhaust valves. Its Shovelhead-style exhaust ports accept single-bolt Shovelhead flanged headers, while the redesigned intake ports accept a Shovelhead O-ring intake manifold. These features allow the motor to breathe and run like a Shovelhead.

The assembly is supplied as a kit and is manufactured in the USA. Suggested related items include the OKO Performance 1-7/8-inch Shorty Carburetor, Stainless Steel Intake Manifold Clamp Set, and 1-7/8-inch Intake Manifold. Review application requirements and related component specifications before installation.

Features:

• Engine Configuration: Bastardo Panhead engine assembly with 88-inch displacement.
• Pre-Run Testing: Pre-run to check oil pressure and timing.
• Oil System: Fitted with braided lines and a pressure gauge.
• Valve Configuration: Uses Shovelhead intake and exhaust valves.
• Exhaust Ports: Shovelhead-style exhaust ports accept single-bolt Shovelhead flanged headers.
• Intake Ports: Redesigned intake ports accept a Shovelhead O-ring intake manifold.
• Carburetor: Carburetor included.
• Documentation: Manufacturer's Statement of Origin supplied.
• Assembly and Testing: Assembled and tested in the USA using components from the Ultima Motor program.
• Unit of Measure: Kit.
• Accessory Items: 10-7828 - Bastardo Panhead 88 inch Short Block, 10-1958 - Panhead 74 inch Long Block, 10-2121 - Panhead 74 inch Short Block
