Ultima Tappet Block And Oil Pump Alignment Tool 97-403

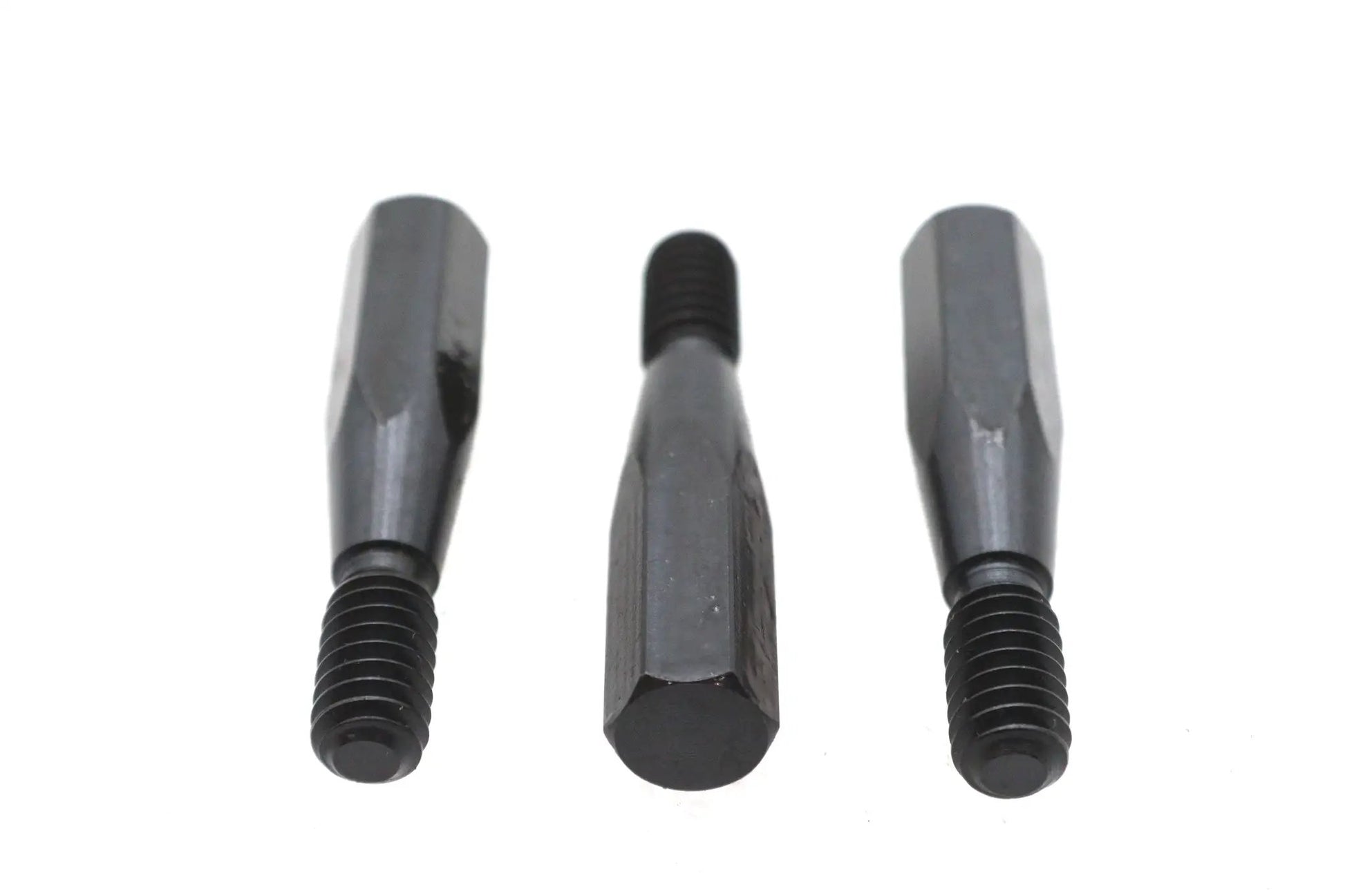

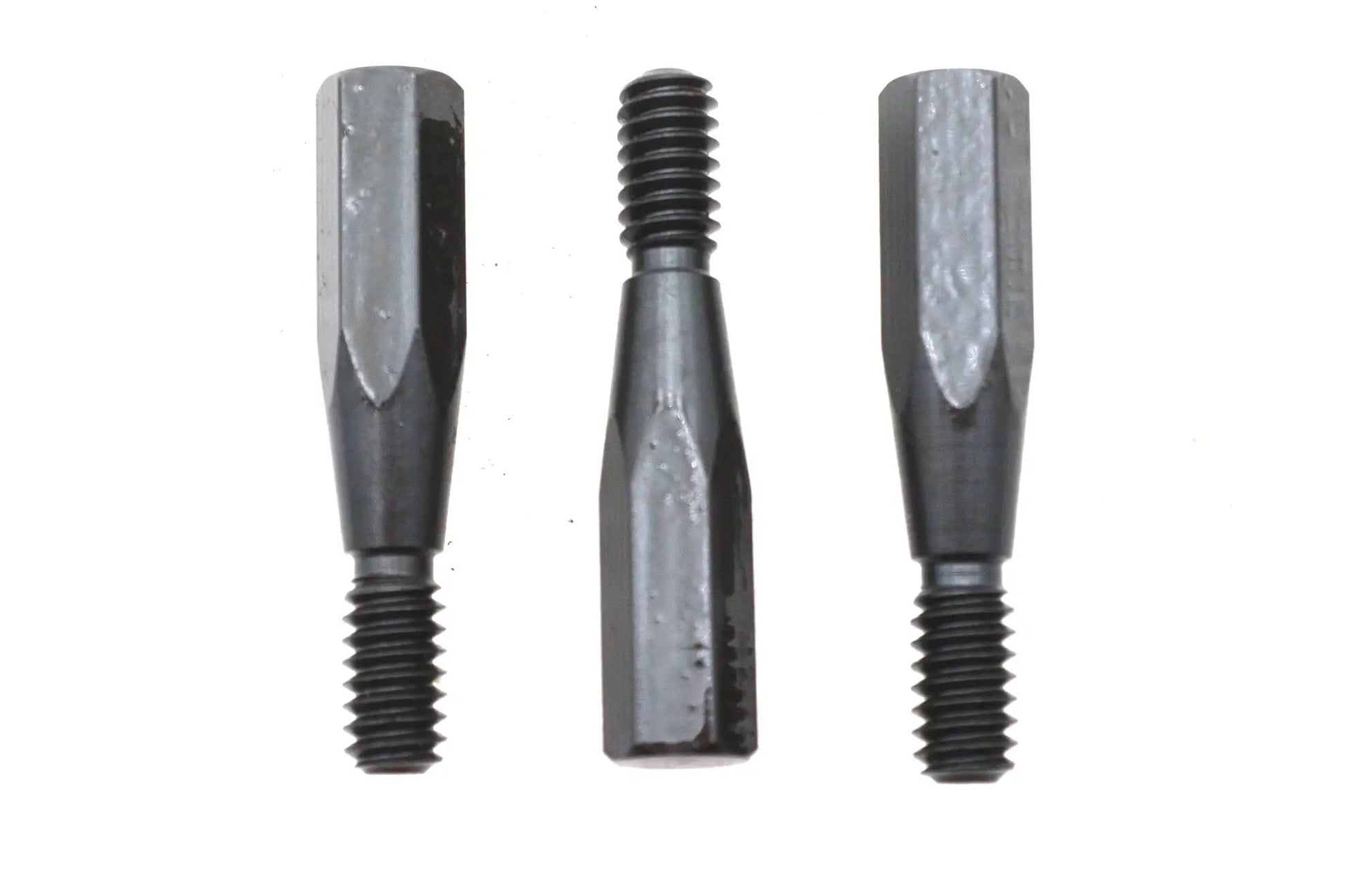

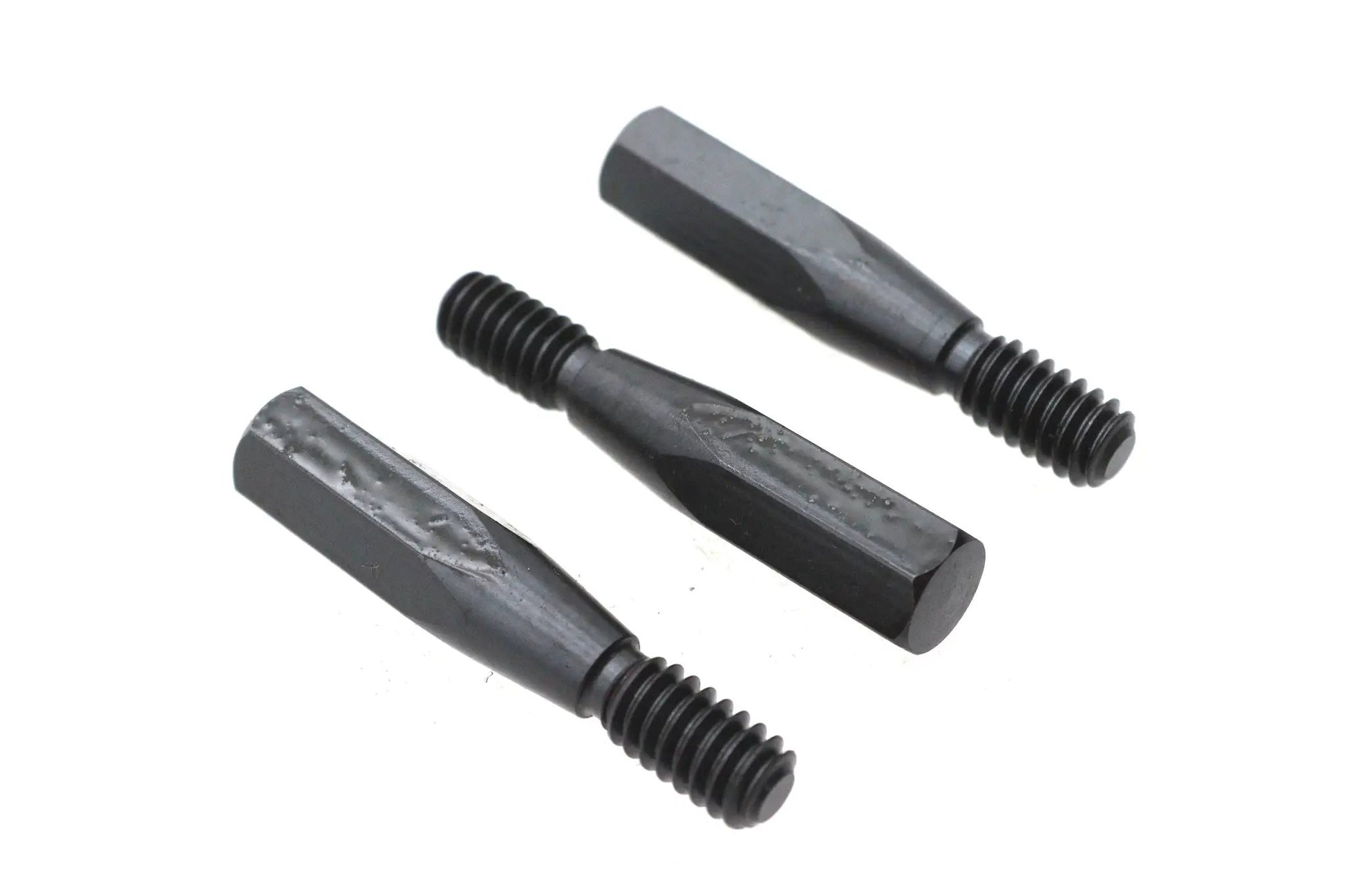

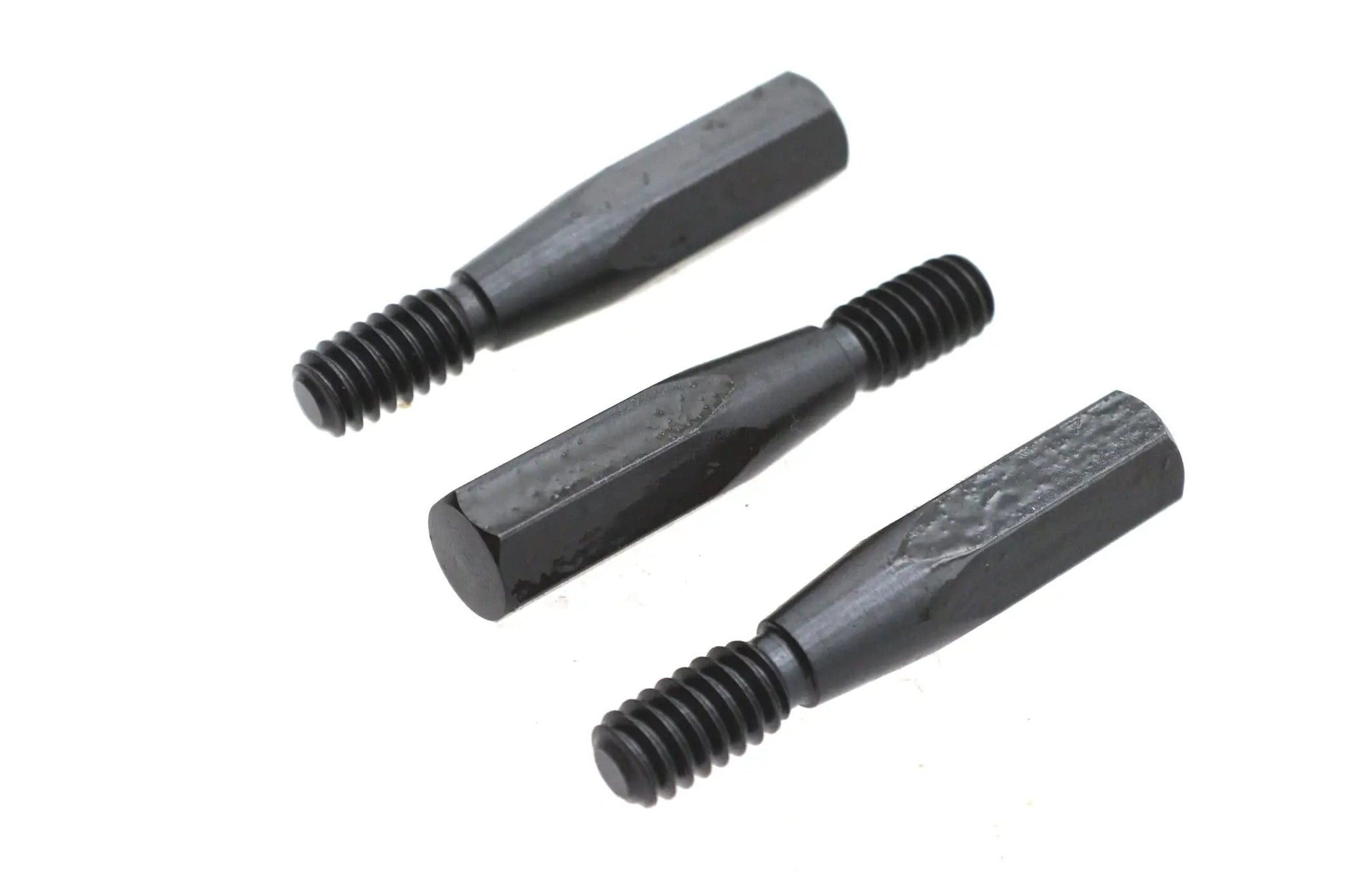

Precisely align the hole from the crankcase to the tappet block for clean assembly and reliable timing when rebuilding Harley‑Davidson engines. The Ultima Tappet Block And Oil Pump Alignment Tool is designed for use with Evolution-style heads and Twin Cam oil pumps, helping you position components correctly during installation.
Key features include alignment screws with 1/4 inch‑20 threads for secure, repeatable positioning, and the option to use two alignment points to align the rocker boxes on Evolution heads. The tool is built for durability to support repeated use in professional shops or DIY garages.
- Designed for precise alignment of crankcase to tappet block and oil pump
- Compatible with Evolution-style heads and Twin Cam oil pumps
- 1/4 inch‑20 threaded screws for secure positioning
- Suitable for Harley-Davidson models from 1990 to 2016 (examples include the 2008 FXST, 2001 FLST, and earlier models such as the 1990 FLT and 1992 FLST)
- Manufactured in China by Ultima; part number 97-403
Whether you’re performing routine maintenance or engine rebuilding, this alignment tool helps ensure your Harley‑Davidson runs smoothly and reduces misalignment‑related issues, contributing to longer engine life.
Perfectly align hole from crankcase to tappet block. Use two to align the rocker boxes on Evolution style heads. Also can be used in Twin Cam oil pump alignment. Alignment screws are 1/4 inch-20 threads.
Ensure precise alignment of your Harley Davidson engine components with the Ultima Tappet Block and Oil Pump Alignment Tool. Designed specifically for use with Evolution-style heads and Twin Cam oil pumps, this tool simplifies the installation process by accurately aligning the hole from the crankcase to the tappet block. The alignment screws feature 1/4 inch-20 threads, providing secure and dependable positioning during assembly. Crafted with durability in mind, this set is ideal for professional mechanics and experienced enthusiasts aiming for optimal engine performance and longevity.
This alignment tool is compatible with a wide range of Harley Davidson models, including the 2008 FXST, 2001 FLST, and earlier models such as the 1990 FLT and 1992 FLST. Its versatile design ensures it can be used repeatedly for various maintenance tasks that require precise component alignment. The set's compact and robust construction allows for easy handling and reliable operation in different workshop environments, making it an essential addition to any Harley Davidson maintenance toolkit.
Manufactured in China, the Ultima Tappet Block and Oil Pump Alignment Tool combines quality with affordability, providing a dependable solution for engine assembly and repair work. Whether you're performing routine maintenance or rebuilding your engine, this tool helps ensure that your Harley Davidson runs smoothly and efficiently, reducing the risk of misalignment-related issues and prolonging engine life.
