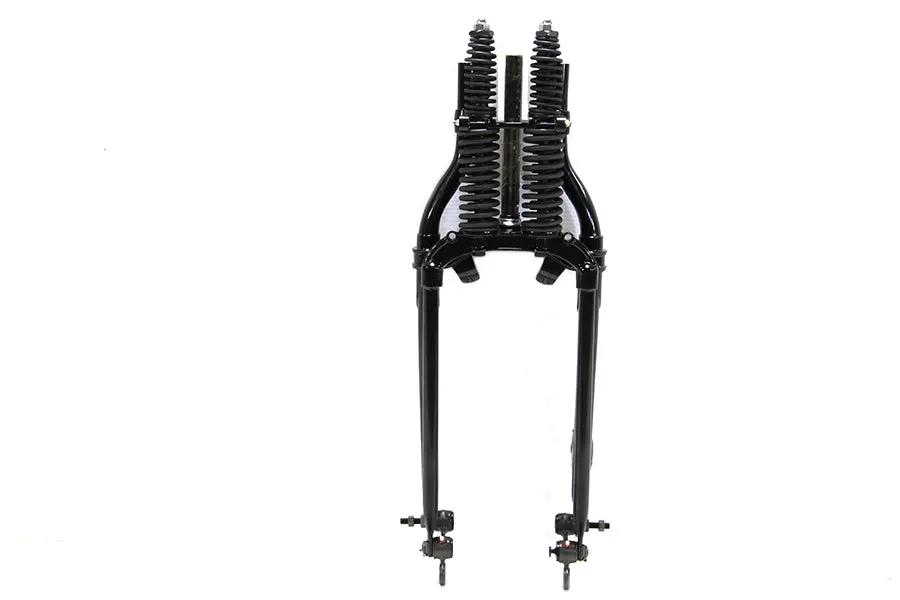

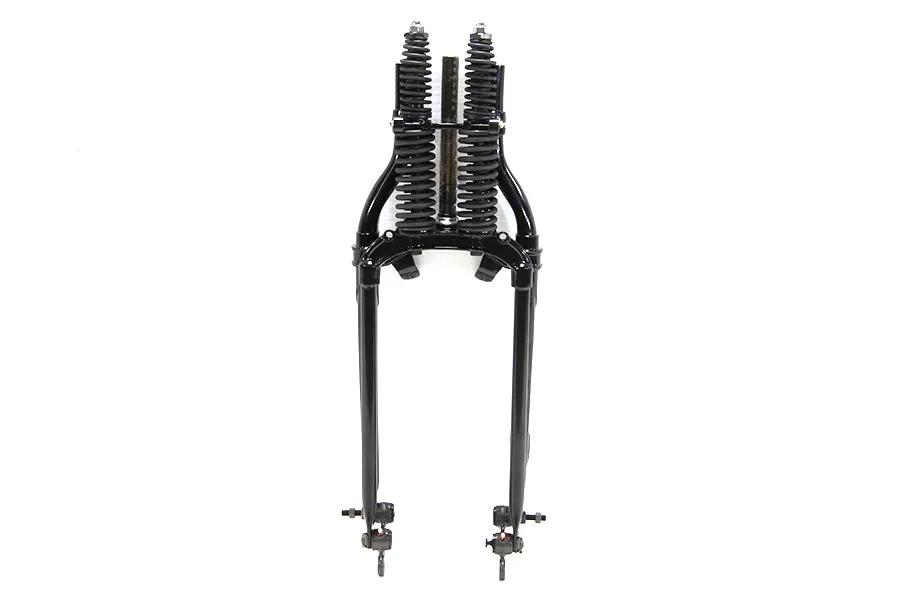

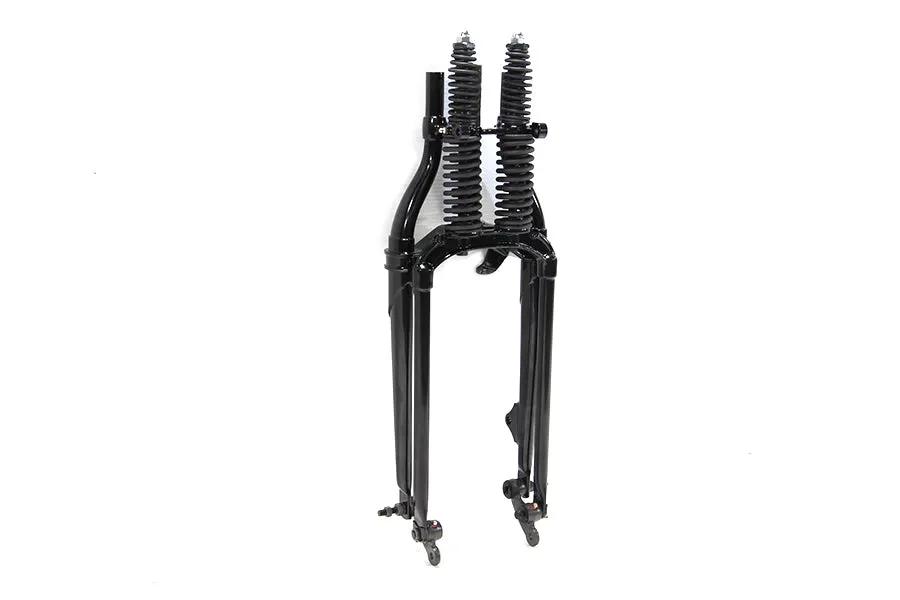

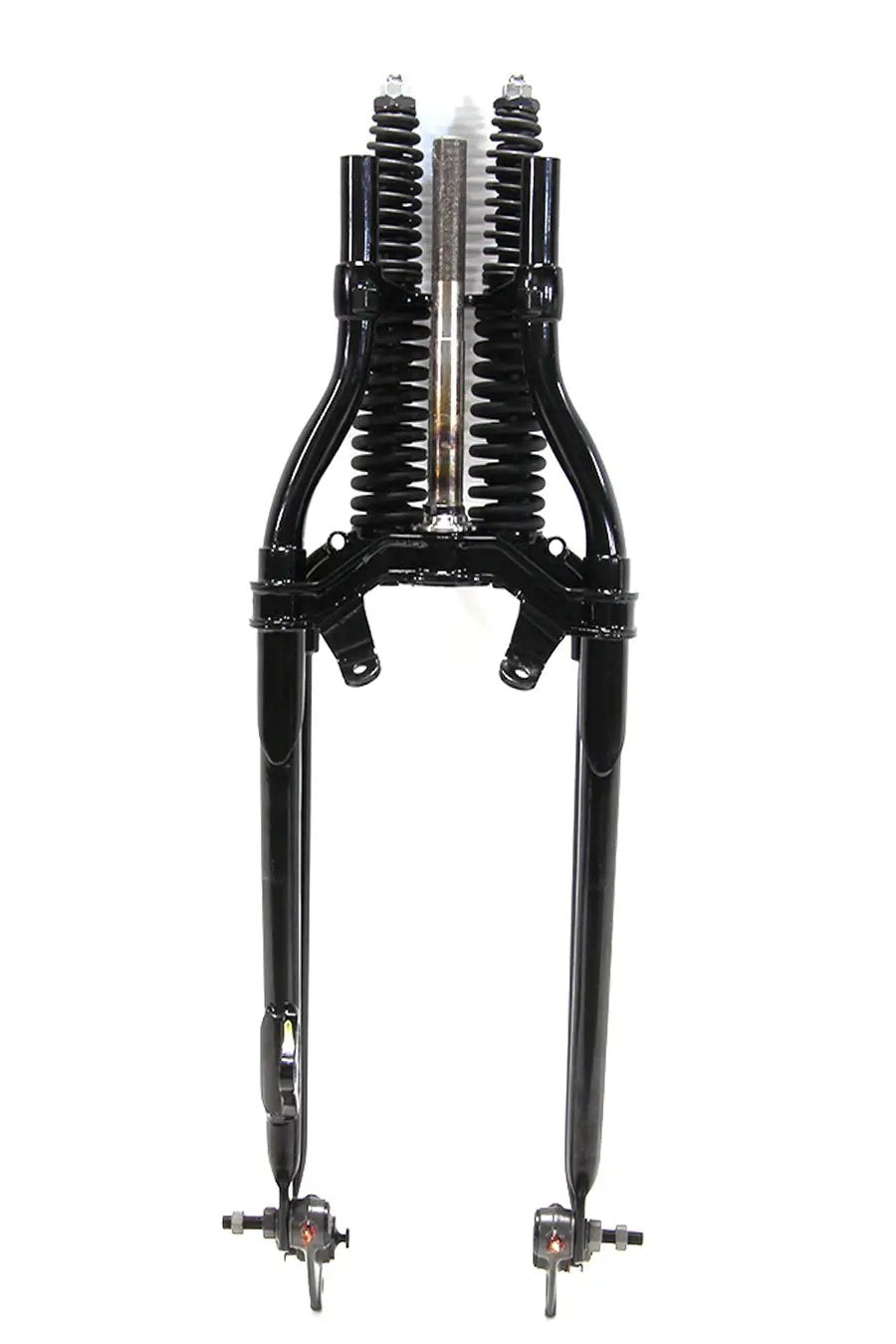

V-Twin 18 Inch Inline Spring Fork Assembly For Harley WL
Stock replica Spring Fork assembly accepts all original style components and accessories for a detailed restoration look. Part Number 49-2400 upgrades Harley Davidson WL models from 1936 to 1945 with a durable, chrome-finished front end designed for longevity in vintage builds.
- Length: approximately 18 inches; measurement from top of rear leg to center of front axle is about 18 inches
- Stem: 7/8 inch with tapered bearings
- Rockers: 6.5 inches apart
- Axle compatibility: accepts a 3/8 inch diameter axle (also compatible with a 3/4 inch axle for custom applications)
- Rear-leg tubing: tapped 3/4 inch-16 for threaded riser sets
- Includes: inner and outer springs, front and rear legs, inside rockers for 3/8 inch axle, spring rod with bushings, and an internal brake wheel with studs and bushings
- Not included: top clamp, neck races, and cone nut
- Manufacturing approach: hydraulic swaging, investment casting, forging, robotic welding, and chrome finishing
- Distance between rockers: 6.5 inches
- Overall length: approximately 18 inches
- Installation notes: some assembly may be required; for detailed instructions, visit the provided link
- Recommended front axle: #49-1963 WL Front Axle Black
- Origin: manufactured in Taiwan
- Compatibility: designed for Harley WL models from 1936 to 1945
Stock replica Spring Fork assembly accepts all original style components and accessories for a detailed restoration look. The 45 rockers are mounted in board of the fork legs and accepts a 3/8 inch diameter axle.
This V-Twin Spring Fork Assembly, Part Number 49-2400, is designed to provide a durable and reliable upgrade for Harley Davidson WL models from 1936 to 1945. Crafted with precision through a multi-step manufacturing process that includes hydraulic swaging, investment casting, forging, robotic welding, and chrome finishing, this assembly ensures strength and longevity. The package includes inner and outer springs, front and rear legs, inside rockers for a 3/8 inch axle, spring rod with bushings, and an internal brake wheel with all studs and bushings. Please note that top clamp, neck races, and cone nut are not included, and some assembly may be required. The assembly features a 7/8 inch stem and a 6.5 inch distance between the rockers, designed to fit seamlessly with existing components and provide a smooth ride. The tubing on the rear legs is tapped 3/4 inch-16 to accept threaded riser sets, allowing builders to customize the frame height or switch to a triple tree without ears, making this a versatile upgrade for vintage Harley restorations. The assembly measures approximately 18 inches in length and is compatible with a 3/4 inch axle, suitable for custom applications. It is recommended to use with the #49-1963 WL Front Axle Black for optimal performance. The assembly's finely crafted components are suitable for both restoration and custom builds, ensuring a precise fit and durable performance. This product is manufactured in Taiwan and is part of V-Twin's extensive line of high-quality motorcycle parts and accessories. For detailed installation instructions, please visit the provided link. Accessories and suggested items, such as wheel assemblies and rocker kits, are available to complement this fork assembly, allowing for a comprehensive upgrade to your Harley Davidson WL motorcycle.
Features:
- Assembly includes inner and outer springs, front and rear legs, and inside rockers for a 3/8 inch axle
- Spring rod with bushings and internal brake wheel with studs and bushings included
- Tube on rear legs is tapped 3/4 inch-16 for threaded riser set installation
- Designed for Harley Davidson WL models from 1936 to 1945
- Made with high-quality manufacturing processes, including robotic welding and chrome finishing
- Accepts a 3/4 inch axle for custom applications
- Utilizes a 7/8 inch stem with tapered bearings for easy installation
- Measurement from top of rear leg to center of front axle is approximately 18 inches
- Compatible with various accessories such as wheel assemblies and rocker kits
Fitment:
Harley Davidson WL 1936
Harley Davidson WL 1937
Harley Davidson WL 1938
Harley Davidson WL 1939
Harley Davidson WL 1940
Harley Davidson WL 1941
Harley Davidson WL 1942
Harley Davidson WL 1943
Harley Davidson WL 1944
Harley Davidson WL 1945
Harley Davidson WL 1946
Harley Davidson WL 1947
Harley Davidson WL 1948
Harley Davidson WL 1949
Harley Davidson WL 1950
Harley Davidson WL 1951
Harley Davidson WL 1952
