V-Twin 22 Inch Tedd Narrow Front Fork WT002B-22 Black

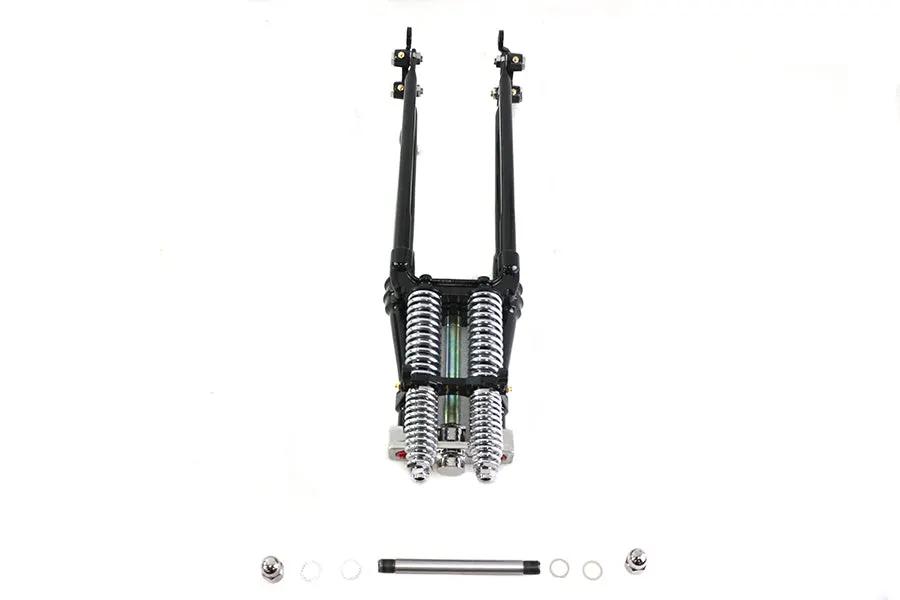

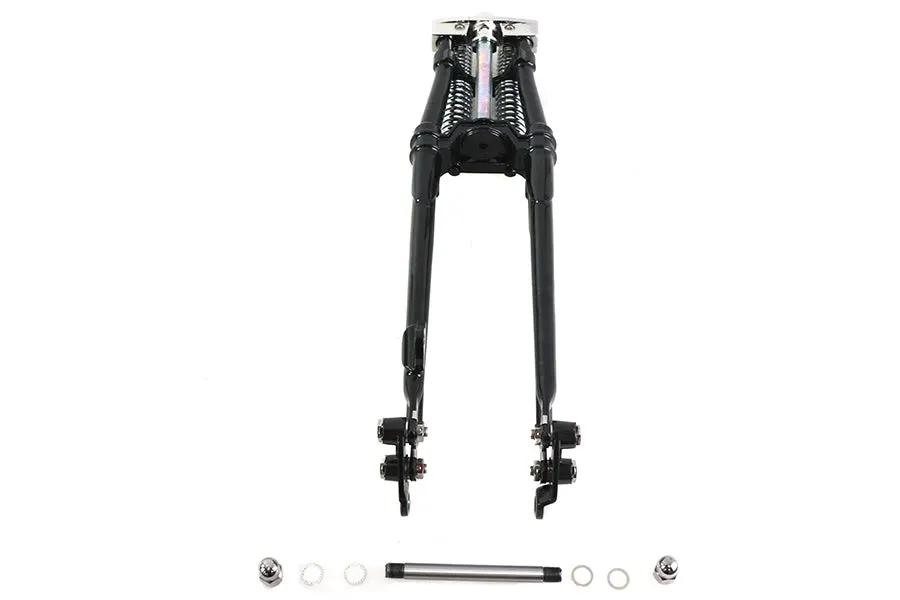

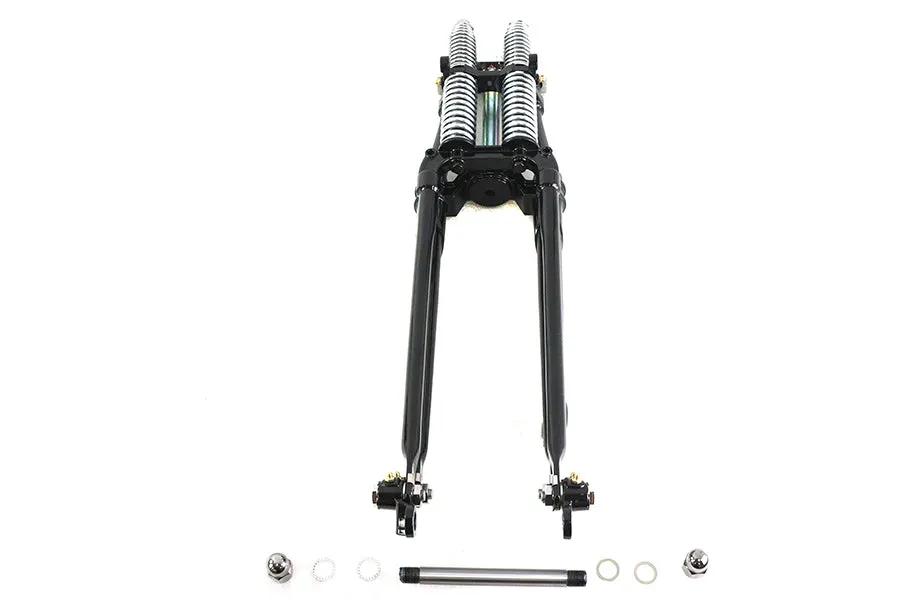

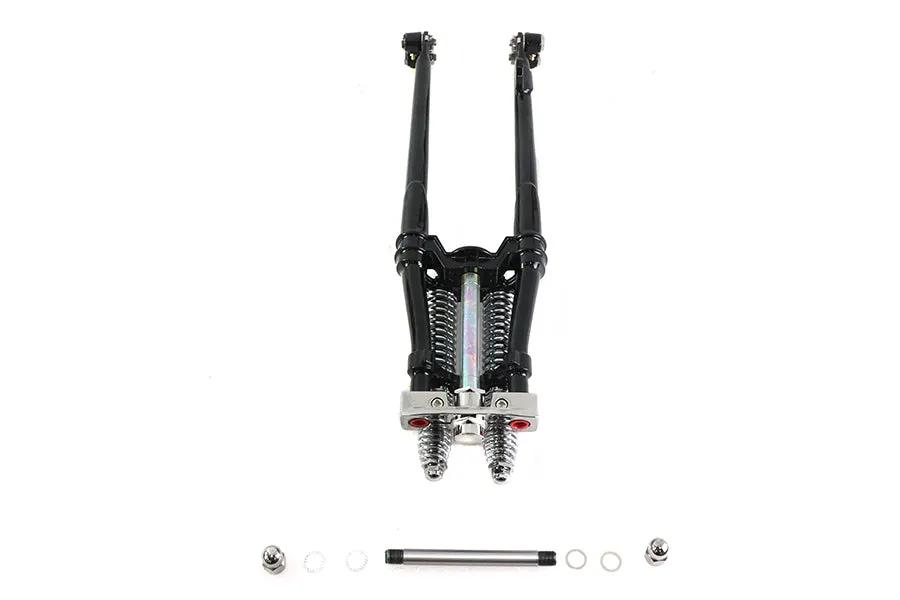

22 inch Tedd narrow Spring Fork assembly unit features a black finish with chrome springs. The V-Twin WT002B-22 delivers an authentic look with a narrow profile, developed over two years to mirror factory detailing for custom builds.

The assembly includes the triple tree, a 1 inch stem, brake boss, and a 3/4 inch axle, providing a comprehensive upgrade for compatible bikes. The top triple tree features standard stem and tube locations and is aligned to accept dog bone or stock Spring Fork handlebars, offering versatile compatibility.

• Rockers spaced 6 inches apart; legs drilled and tapped for 3/4 inch-18 riser mounting
• Left side rocker offset to accommodate brake-system installations
• Accepts original Spring Fork components such as headlamp brackets and shock assemblies
• Narrow 22-inch overall length with authentic detailing
• Constructed in China

The fork is designed for compatibility with original components and is ideal for restoring or customizing vintage or modern chopper and cruiser motorcycles. Pair it with accessory items such as shock assemblies, front fenders, headlamp brackets, and mounting clamps to complete installation and achieve a cohesive look.

22 inch Tedd narrow Spring Fork assembly unit features a black finish with chrome springs.

The V-Twin WT002B-22 22 inch Tedd Narrow Spring Fork Assembly offers a precise blend of classic style and detailed craftsmanship, developed over two years to ensure an authentic look with a narrow profile. This spring fork features intricate construction that replicates factory details, providing an original appearance while maintaining a sleek, narrower design ideal for custom motorcycle builds. The assembly includes the triple tree, a 1 inch stem, brake boss, and a 3/4 inch axle, making it a comprehensive upgrade for compatible bikes. The top triple tree is designed with standard stem and tube locations and is aligned to accept dog bone or stock Spring Fork handlebars, ensuring versatile compatibility. The rocker width measures 6 inches between the rockers, and the legs are drilled and tapped with 3/4 inch-18 threads for mounting risers, facilitating easy customization and installation. The left side rocker is offset to accommodate applications where a brake system is installed, offering added flexibility for brake configurations. This spring fork is compatible with original Spring Fork components, including headlamp brackets, shock assemblies, or ride control systems, thanks to its inclusion of original fittings. Crafted in China, this assembly is built to meet precise specifications and is ideal for restoring or customizing vintage or modern chopper and cruiser motorcycles. Whether upgrading your front suspension or enhancing the aesthetic appeal of your bike, this narrow spring fork assembly provides durability, authentic style, and functional versatility. Pair it with accessory items such as shock assemblies, front fenders, headlamp brackets, and mounting clamps to complete your installation and achieve a cohesive look. Crafted with attention to detail, the V-Twin WT002B-22 spring fork assembly is a reliable choice for motorcycle enthusiasts seeking quality and authenticity in their suspension upgrades.

Features:

• Developed over two years with detailed factory-inspired construction

• Includes triple tree, 1 inch stem, brake boss, and 3/4 inch axle

• Top triple tree with standard stem and tube locations, compatible with dog bone or stock handlebars

• Rockers spaced 6 inches apart with drilled and tapped legs for riser mounting

• Left rocker offset to accommodate brake systems

• Accepts original Spring Fork components such as headlamp brackets and shock assemblies

• Narrow 22-inch overall length with authentic detailing

• Constructed in China for quality and durability
