SKU:49-2417

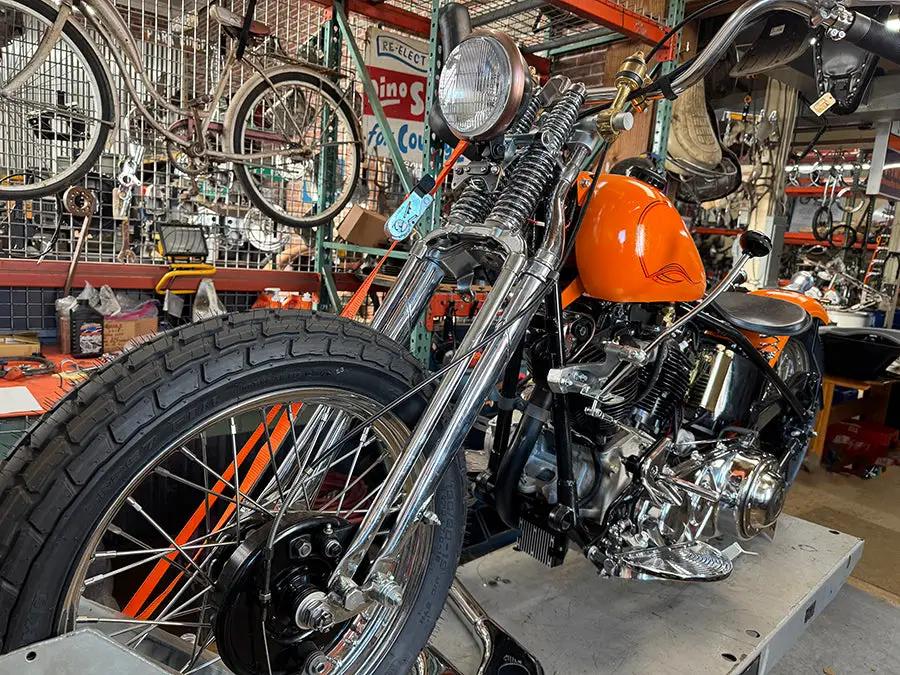

Replace your vintage Harley’s front end with the V-Twin 49-2417 22 Inch Inline Front Fork Assembly, a faithful stock‑style replica designed to fit Harley models from 1936 to 1945. The assembly measures approximately 22 inches from the triple tree to the axle centerline, matching classic frame geometry for authentic restoration or period‑correct customization.
Notes: Some assembly may be required. Top clamp, neck races, and cone nut are not included. For optimal performance, order shock ride control, axle assembly, top tree, and bearing kits separately.
Unit features chrome front legs chrome outer springs chrome rockers and chrome rear leg.Enhance your Harley Davidson motorcycle with the V-Twin 49-2417 22 Inch Inline Spring Fork Assembly, designed to provide a reliable and authentic replacement for your stock forks. Crafted with precision, these forks feature integrated inner and outer springs for superior suspension performance, offering a smooth ride over various terrains. The assembly includes front and rear legs, a 1-inch inline stem, and offset outside mount rockers to facilitate the use of interchangeable wheels with lug bolt-type drums and mechanical front brake drums, studs, and bushings. Some assembly may be required, and these forks are replicas of original units, constructed with welded and brazed techniques to ensure durability and compatibility with all original style components and accessories for an authentic look.
Constructed in Taiwan, these spring forks are built to meet high-quality standards, with unpolished areas at the rear fork stem cross plate and front spring fork rod forging, allowing for customization or polishing as needed. The forks measure approximately 22 inches in length from the triple tree to the axle centerline, providing an effective length for tailoring to your specific frame height. They utilize tapered bearings for ease of installation and accept a 3/4-inch axle for custom applications. Compatibility spans various Harley Davidson models from the 1930s to the 1940s, including FL and EL series, making these forks a versatile option for vintage motorcycle restoration or customization.
Please note, the top clamp, neck races, and cone nut are not included. For optimal performance, additional components such as shock ride control, axle assembly, top tree, and bearing kits should be ordered separately. The assembly is shipped unpolished at certain points for ease of finishing or customization. Refer to the provided instructions for detailed installation guidance. These forks are designed to provide a detailed, stock-like appearance while delivering dependable performance for vintage Harley Davidson bikes.
Features:
