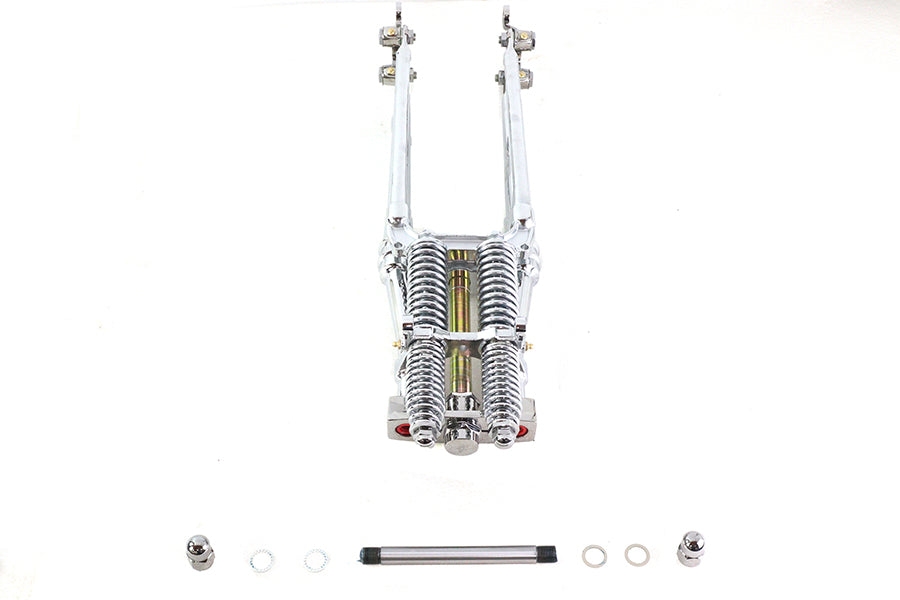

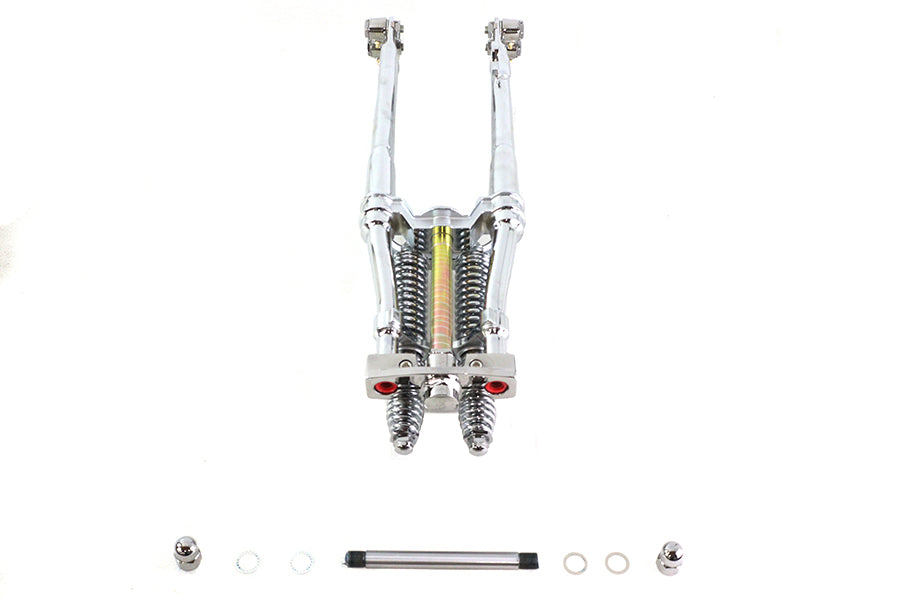

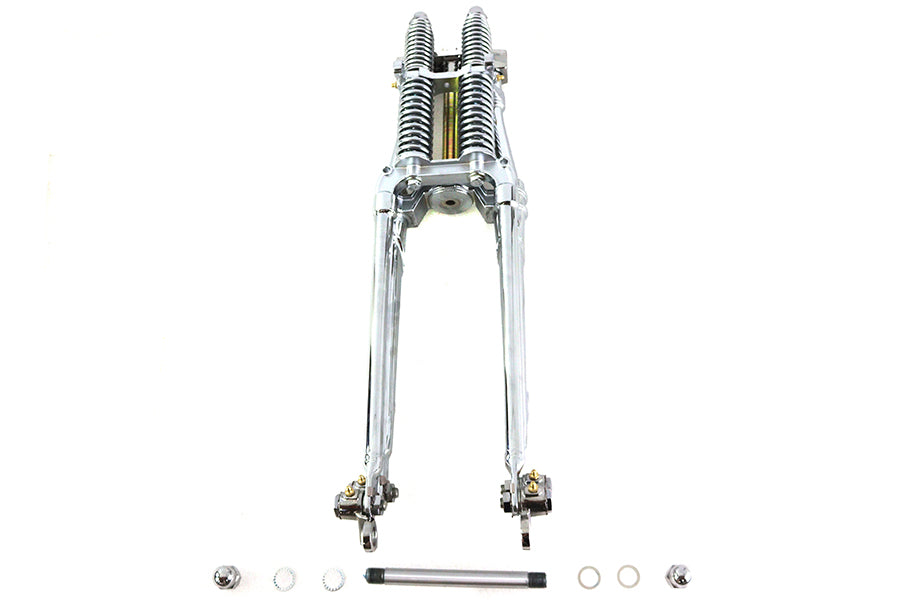

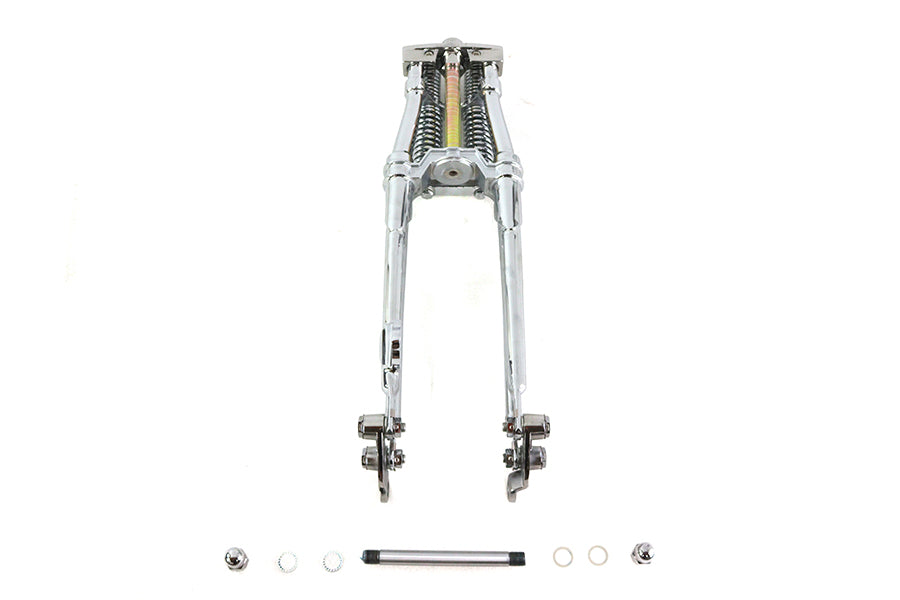

V-Twin 49-3132 24-Inch Tedd Narrow Spring Fork Assembly Chrome

24 inch Tedd narrow Spring Fork assembly unit features a chrome finish.

The V-Twin 49-3132 24-Inch Tedd Narrow Spring Fork Assembly combines a classic springer fork appearance with a narrower profile for custom motorcycle applications. Developed over a two-year period, this assembly features detailed construction modeled after original factory components while providing the fittings and mounting points needed for select restoration and custom projects. The chrome finish delivers a clean, durable appearance that complements a wide range of motorcycle styles.

The assembly includes the triple tree, 1-inch stem, brake boss, and 3/4-inch axle. The top triple tree uses standard stem and tube locations and is positioned inline to accept dog-bone or stock spring fork handlebars. The rockers provide a 6-inch spacing, while the axle uses a 3/4-inch outer diameter. The fork legs are drilled and tapped 3/4-inch-18 for riser mounting, supporting straightforward handlebar installation with compatible components.

Designed to accept original spring fork components, the V-Twin 49-3132 includes original-style fittings for a headlamp bracket, shock assembly, or ride control. The left-side rocker is offset to provide additional clearance for applications equipped with a brake system. Verify frame, wheel, brake, handlebar, and spring fork component compatibility before installation. Professional installation is recommended to ensure proper alignment, torque, and safe operation.

Features:

• Finish: Chrome
• Application: Custom and replacement spring fork installations
• Fork Style: Narrow springer fork design with classic factory-inspired detailing
• Included Components: Triple tree, 1-inch stem, brake boss, and 3/4-inch axle
• Handlebar Compatibility: Inline top triple tree accepts dog-bone or stock spring fork handlebars
• Rocker Spacing: 6 inches between rockers
• Axle Specification: 3/4-inch outer diameter
• Riser Mounting: Fork legs drilled and tapped 3/4-inch-18
• Component Compatibility: Accepts select original spring fork headlamp brackets, shock assemblies, and ride controls
• Brake Clearance: Left rocker offset for applications using a brake system
• Accessory Items: 49-3126 - 24-Inch Tedd Narrow Spring Fork Assembly Black, 49-3129 - 18-Inch Tedd Narrow Spring Fork Assembly Chrome, 49-3130 - 20-Inch Tedd Narrow Spring Fork Assembly Chrome
