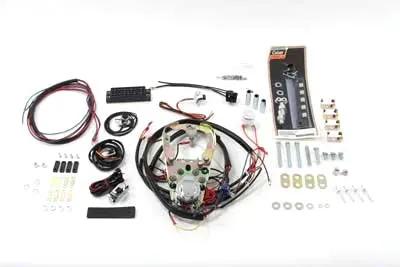

V-Twin 70-71 DSH Assy Five-Light Dash Base Wiring Harness

The V-Twin 70-71 DSH ASSY Five-Light Dash Base Wiring Harness is a pre-wired dash-base wiring kit for electric-start Harley-Davidson FL models from 1970 and 1971. It includes a six-post key switch terminal box, horn button, dimmer switch, headlamp connection, speedometer lamp socket, and the front terminal board, delivering a ready-to-install wiring core for your vintage bike.

• Pre-wired to dash base with six-post key switch terminal box
• Includes horn button, dimmer switch, headlamp connection, speedometer lamp socket, and front terminal board
• Designed for electric-start Harley-Davidson FL models from 1970 and 1971
• Tested after final assembly for switch and wiring functionality
• Complete kit with all necessary components for installation
• Made in the USA
• For best results, use the factory service manual to guide wiring setup and dash integration

Compatibility: Harley Davidson FL 1970 and 1971. Ideal for restoration or repair projects where authentic dash wiring and reliable electrical performance are priorities, ensuring secure connections between the dash and lighting, ignition, and instrument components.

Assembly includes harness pre-wired to dash base a six post key switch terminal box horn button dimmer switch headlamp connection speedometer lamp socket and front terminal board. Assembly is for electric start models.

The V-Twin 70-71 DSH ASSY Five Light Dash Base Wiring Harness Assembly is designed specifically for Harley Davidson FL models from 1970 and 1971. This comprehensive wiring harness kit has undergone rigorous testing, including switch and wiring functionality verification after final assembly, ensuring reliable performance. The assembly facilitates straightforward installation of the dash wiring, providing a clean and secure connection for your motorcycle's electrical components. For optimal installation, it is recommended to order the factory service manual, which will guide you through the wiring harness setup and integration process with precision. Crafted in the USA, this kit offers high-quality construction and durability, making it a dependable choice for restoration or repair projects. The kit includes essential components required to complete the dash wiring, ensuring compatibility and ease of use during installation. Whether you're restoring a vintage Harley or maintaining an existing one, this harness assembly is an ideal solution for maintaining the integrity and functionality of your motorcycle’s electrical system.

Features:

• Tested: Switch and wiring are verified for proper function after assembly

• Complete Kit: Includes all necessary components for installation

• Country of Origin: Made in the USA for quality assurance

• Compatibility: Fits 1970 and 1971 Harley Davidson FL models

• Suggested Items: 39-0960 - Cast Five Light Dash Base, 32-0449 - Fat Bob Ignition Switch with 5 Terminals Chrome, 32-0714 - Wiring Harness Kit, 32-9246 - Quick Connect Wiring Terminal Block

• Accessory Items: 39-0383 - Chrome Dash Panel, 16-0529 - Mini Motorcycle Lift Tool, 31-0201 - Inspection Tag Holder 1/2 inch Mount Stainless Steel

Fitment:
Harley Davidson FL 1970
Harley Davidson FL 1971
