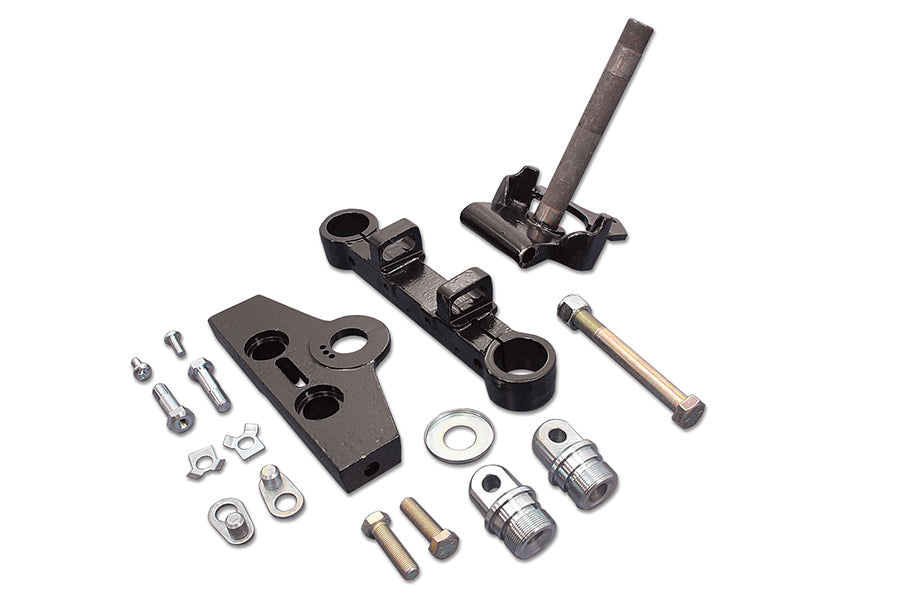

Black 41mm adjustable triple tree kit includes fork plugs lower adjustable tree and top tree with pivot bolts. Kit features 2 adjustable positions with a 12 inch rake in the raked position.
The V-Twin Black 41mm Adjustable Lower Triple Tree Set is designed for select Harley-Davidson FL and FXST applications from 1977 through 1984. This lower triple tree features two rake positions, located by tabs with pins, allowing either 1/2-inch rake or 0-inch rake adjustment.
The fork spacing measures 10 inches center to center. This lower triple tree does not include tabs for holding upper fork covers, making it suitable for configurations that do not require those mounting tabs. The set is supplied as a lower triple tree assembly.
For installation planning, the manufacturer suggests using this lower triple tree with the V-Twin part 24-9910 top tree cover and part 28-0221 Handlebar Damper Kit. Rubber handlebar bushings and the top tree cover are ordered separately. Additional suggested items include an adjustable cross bar, adjustable rake upper triple tree, zinc fork tube plug set and lower triple tree zinc dust shield.
Compatible applications include 1977-1984 Harley-Davidson FL models and 1980-1981 Harley-Davidson FXST models, as specified by the product data. Verify the motorcycle application and required complementary components before ordering.
Features:
- Black 41mm adjustable lower triple tree set
- Provides two rake positions using tabs with pins
- Allows 1/2-inch rake or 0-inch rake adjustment
- Fork spacing measures 10 inches center to center
- Does not include tabs for holding upper fork covers
- Suggested for use with V-Twin part 24-9910 top tree cover
- Suggested for use with V-Twin part 28-0221 Handlebar Damper Kit
- Fits specified 1977-1984 Harley-Davidson FL and 1980-1981 FXST applications
Fitment
Harley Davidson FL 1977
Harley Davidson FL 1978
Harley Davidson FL 1979
Harley Davidson FL 1980
Harley Davidson FL 1981
Harley Davidson FL 1982
Harley Davidson FL 1983
Harley Davidson FL 1984
Harley Davidson FLST 1980
Harley Davidson FLST 1981
Harley Davidson FLST 1982
Harley Davidson FLST 1983
Harley Davidson FLST 1984
Harley Davidson FLST 1985
Harley Davidson FLST 1986
Harley Davidson FLST 1987
Harley Davidson FLST 1988
Harley Davidson FLST 1989
Harley Davidson FLST 1990
Harley Davidson FLST 1991
Harley Davidson FLST 1992
Harley Davidson FLST 1993
Harley Davidson FLST 1994
Harley Davidson FLST 1995
Harley Davidson FLST 1996
Harley Davidson FLST 1997
Harley Davidson FLST 1998
Harley Davidson FLST 1999
Harley Davidson FXST 1980
Harley Davidson FXST 1981
Harley Davidson FXST 1982
Harley Davidson FXST 1983
Harley Davidson FXST 1984
Harley Davidson FXST 1985
Harley Davidson FXST 1986
Harley Davidson FXST 1987
Harley Davidson FXST 1988
Harley Davidson FXST 1989
Harley Davidson FXST 1990
Harley Davidson FXST 1991
Harley Davidson FXST 1992
Harley Davidson FXST 1993
Harley Davidson FXST 1994
Harley Davidson FXST 1995
Harley Davidson FXST 1996
Harley Davidson FXST 1997
Harley Davidson FXST 1998
Harley Davidson FXST 1999
