SKU:55-0001

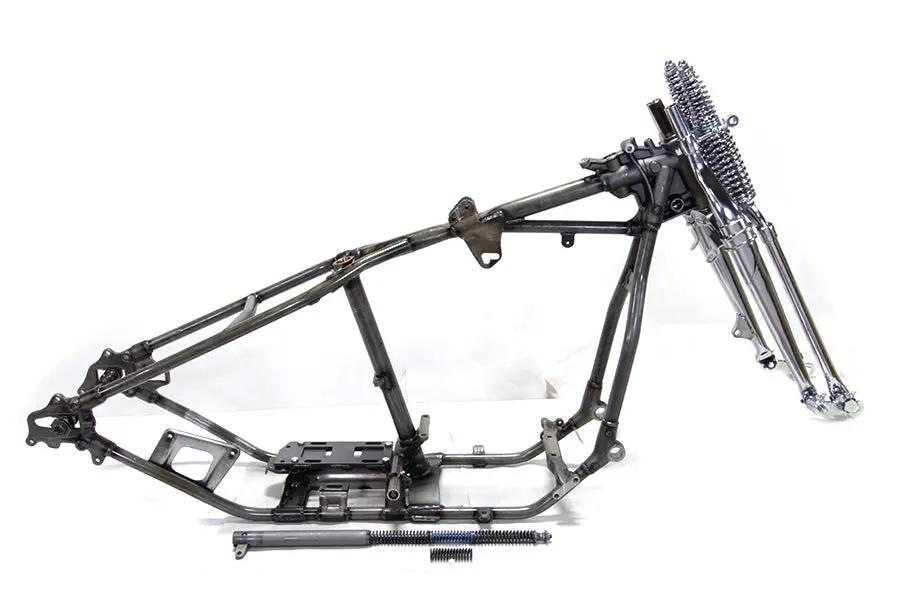

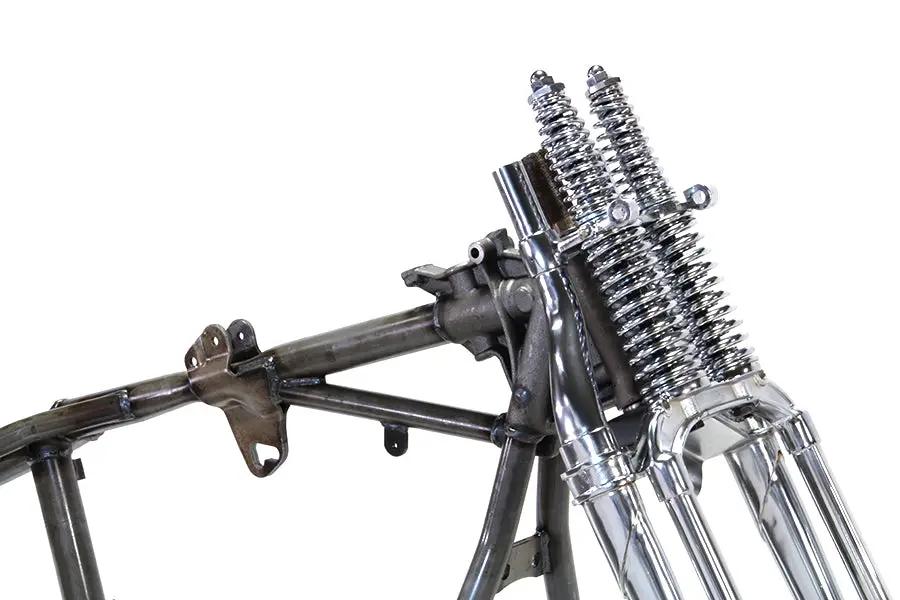

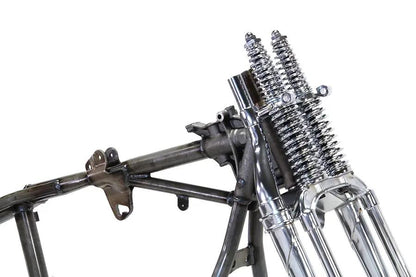

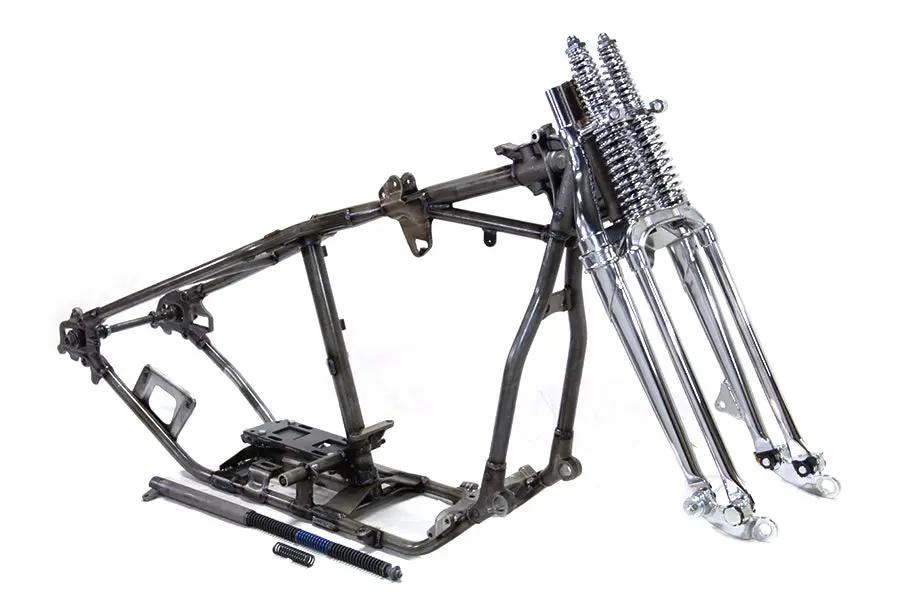

Chrome-finished 28-inch offset spring fork and replica wishbone frame kit built to restore 1946–1948 Harley FL and UL motorcycles. It accepts Panhead, Shovelhead, Knuckle, and Flathead engines with the appropriate spacers, making it suitable for classic restorations or period-correct builds.

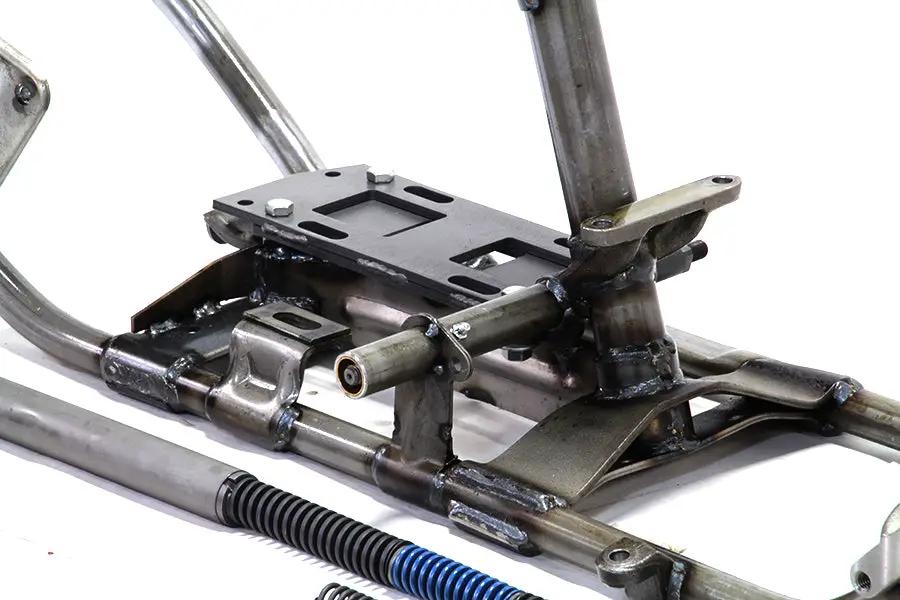

Key mounting features are already installed: built-in mounts for the seat post, axle, transmission plate, toolbox, and grease fittings. The cross bar includes a cable mount tab beneath the gas tank to cleanly route wiring, reducing cable clutter during installation.
Durable, forged construction guards reliability: the neck, front and rear engine mounts, sidecar mounts, top seat post yoke, footboard tabs, and rear axle plates are forged for strength. The neck accepts a key lock for added security. A separate lower tank frame mount is required for installation, and the seat post and cross shaft bushings may require reaming for proper fit. These bushings are non-returnable once fitted.
Originating in Taiwan, this chassis kit is designed for Harley Davidson FL 1946 and UL 1946–1948 models. Shipping can be oversized via UPS based on weight. The package includes a bill of sale referencing the part number, with no serial numbers stamped on the frame.
Suggested accessories include an 18-inch chrome offset spring fork assembly, replica black chain guard, mini motorcycle lift tool, and spring fork nut tool. For optimal performance, pair this kit with the V-Twin Lower Tank Frame Mount with Cross Plate.
Frame and fork kit includes replica wishbone frame kit and 28 inch offset spring fork assembly that features a chrome finish.This V-Twin Manufacturing Frame and Fork Kit is designed to fit classic Harley Davidson models from 1946 to 1948, including the FL and UL series. Crafted in Taiwan, this comprehensive kit provides a durable base for restoration or custom builds, accommodating a variety of engine types such as Panhead, Shovelhead, Knuckle, and Flathead with ease. The frame features built-in mounts for the seat post, axle, transmission plate, mechanical brake cross shaft bushings, toolbox, and grease fittings, all installed for convenience. Its cross bar includes a cable mount tab located beneath the gas tank, facilitating clean wiring routing. Forged components like the neck, front and rear engine mounts, sidecar mounts, top seat post yoke, footboard tabs, and rear axle plates ensure strength and reliability. The neck accepts a key lock for added security, and the kit is compatible with a separate lower tank frame mount, which must be ordered separately. Note that seat post and cross shaft bushings may require reaming for a proper fit, and these parts are non-returnable once fitted. The product includes a bill of sale referencing the part number, as no serial numbers are stamped on the frame. Shipping may be considered oversized by UPS, potentially increasing shipping costs based on actual weight. This kit is ideal for enthusiasts looking to restore or customize vintage Harley Davidson motorcycles with quality forged components and comprehensive mounting features. Suggested accessories include an 18-inch chrome offset spring fork assembly, replica black chain guard, mini motorcycle lift tool, and spring fork nut tool, providing everything needed for a complete installation. For optimal performance, it is recommended to use this kit with the V-Twin Lower Tank Frame Mount with Cross Plate.
Features:
