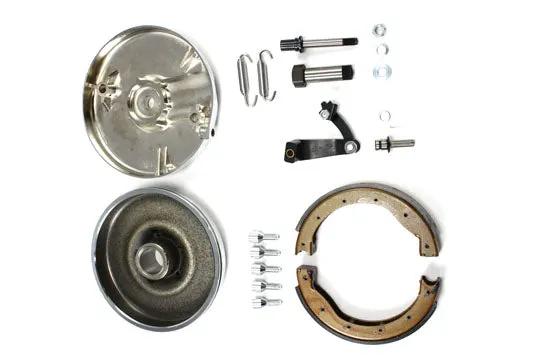

V-Twin Front Brake Backing Plate Kit Right Side Chrome for Harley Davidson FL (1969–1971)

Restore or upgrade the front brake on your Harley Davidson FL with the chrome-front backing plate kit for the right side. Built for 1969, 1970, and 1971 FL models, it bundles all required parts to rebuild or upgrade the front brake assembly: backing plate, chrome drum, axle sleeve, nuts, brake shoes, springs, cam with lever and mount stud for the right‑side brake.

• Material: Chrome finish for corrosion resistance and durability.
• Oversized pivot stud hole: Allows for a 7/16 inch stud with locking washer to be set in position.
• Adjustable brake shoes: Designed to be inchset when adjusting for optimal braking performance.
• Compatibility: Fits Harley Davidson FL models from 1969 to 1971; designed to work with chrome front brake backing plate right side and related components.
• Includes: Complete right-side backing plate kit with mounting hardware.
• Manufactured in Taiwan.
• Installation guidance: Recommended with #48-0835 Factory Service Manual for 1958-1969 FL models and with #24-0127 Backing Plate Pivot Stud with Washer and #24-0128 Backing Plate Locating Washer for correct setup.
• Use case: Part of a comprehensive brake system upgrade or repair; pairs with other parts for a complete braking upgrade (e.g., rear disc brake master cylinder, chrome fork damper kit).

Proper installation yields smooth operation, effective brake shoe adjustment, and long-lasting performance for your Harley FL.

Kit includes brake shoes springs chrome backing plate chrome drum axle sleeve nuts cam with leverm and mount stud for right side brake.

Enhance your Harley Davidson FL motorcycle with the V-Twin Front Brake Backing Plate Kit for the right side, featuring a durable chrome finish. Designed specifically for models from 1969 through 1971, this kit provides all necessary components to restore or upgrade your front brake assembly. The backing plate is constructed to ensure a precise fit and reliable performance, making it an essential part for maintenance or restoration projects.

This kit includes a backing plate with an oversize pivot stud hole, accommodating a 7/16 inch stud with a locking washer for secure attachment. The pivot stud hole is designed to allow for proper adjustment of brake shoes, ensuring optimal braking performance. It is recommended to use this kit in conjunction with the #48-0835 Factory Service Manual for 1958-1969 FL models, along with compatible components such as the #24-0127 Backing Plate Pivot Stud with Washer and #24-0128 Backing Plate Locating Washer. These recommendations help ensure correct installation and maximum functionality.

Manufactured in Taiwan, this kit is part of a comprehensive brake system upgrade or repair. It is compatible with other essential brake components, including the chrome front brake backing plate right side, front brake drum chrome, front axle sleeve, and front brake operating lever right side. For a complete braking upgrade, consider pairing this kit with accessory items like the rear disc brake master cylinder or the chrome fork damper kit, which are also available from V-Twin. Proper installation of this backing plate ensures smooth operation, effective brake shoe adjustment, and long-lasting performance for your Harley Davidson FL motorcycle.

Features:

• Material: Chrome finish for corrosion resistance and durability

• Oversized pivot stud hole: Allows for a 7/16 inch stud with locking washer to be set in position

• Adjustable brake shoes: Designed to be inchset when adjusting for optimal braking performance

• Compatibility: Fits Harley Davidson FL models from 1969 to 1971

• Includes: Complete right side backing plate kit with necessary mounting hardware

Fitment
Harley Davidson FL 1969
Harley Davidson FL 1970
Harley Davidson FL 1971
