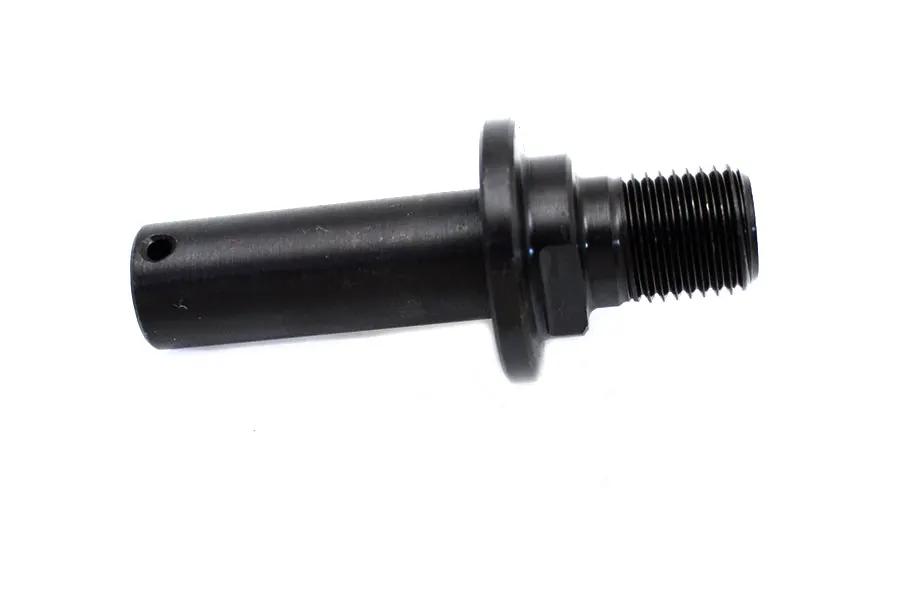

V-Twin Black Rear Backing Plate Pivot Stud 23-3009 for Harley 1936–1945

Precisely sized 2-3/8 inch black rear backing plate pivot stud for Harley-Davidson models from 1936 to 1945, part number 23-3009. This rear mechanical brake pivot is designed to deliver accurate fitment and reliable performance in vintage brake assemblies. The threaded end to the collar measures 7/8 inch, while the cotter pin hole end to the collar measures 1-9/16 inches, with an overall length of 2-3/8 inches. Made in the USA, this OEM cross-referenced part (41875-38, 4058-38) ensures compatibility with numerous Harley-Davidson models from the specified years.

• Part number: 23-3009
• Finish: Black
• Function: Rear backing plate pivot stud for rear mechanical brake
• Threaded end to collar: 7/8 inch
• Cotter pin hole end to collar: 1-9/16 inch
• Overall length: 2-3/8 inches
• Made in the USA
• OEM cross-referenced: 41875-38, 4058-38

Fitment highlights include Harley-Davidson EL and FL series within the specified years. Specifically, EL models: 1936, 1937, 1938, 1939, 1940; FL models: 1941, 1942, 1943, 1944, 1945, 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957; UL models: 1937, 1938, 1939, 1940, 1941, 1942, 1943, 1944, 1945, 1946, 1947, 1948.

Black pivot stud is for rear mechanical brake backing plate.

Enhance your Harley Davidson vintage motorcycle restoration with the V-Twin Rear Backing Plate Black Pivot Stud, part number 23-3009. Designed specifically for models from 1936 to 1945, this high-quality component ensures precise fitment and reliable performance. The threaded end to the collar measures 7/8 inch, while the cotter pin hole end to the collar measures 1-9/16 inches, providing accurate dimensions for seamless installation. Overall, the pivot stud has an effective length of 2-3/8 inches, making it ideal for maintaining the integrity of your motorcycle's rear backing plate assembly. Crafted in the USA, this OEM cross-referenced part (41875-38, 4058-38) guarantees compatibility with numerous Harley Davidson models from the specified years. Whether you're restoring or maintaining your vintage bike, this pivot stud offers durability and precise engineering that meet OEM standards. Incorporate this component to ensure your motorcycle's rear brake assembly functions smoothly and reliably, supporting safe riding experiences. The product is compatible with various Harley Davidson models, including the 1936-1945 EL and FL series, offering a trusted solution for vintage motorcycle enthusiasts and restorers alike.

Features:

• Threaded end to collar: 7/8 inch

• Cotter pin hole end to collar: 1-9/16 inch

• Overall length: 2-3/8 inches

• Made in the USA

• OEM cross-referenced: 41875-38, 4058-38

• Fits Harley Davidson EL and FL models from 1936 to 1945

Fitment:
Harley Davidson EL 1936
Harley Davidson EL 1937
Harley Davidson EL 1938
Harley Davidson EL 1939
Harley Davidson EL 1940
Harley Davidson FL 1941
Harley Davidson FL 1942
Harley Davidson FL 1943
Harley Davidson FL 1944
Harley Davidson FL 1945
Harley Davidson FL 1946
Harley Davidson FL 1947
Harley Davidson FL 1948
Harley Davidson FL 1949
Harley Davidson FL 1950
Harley Davidson FL 1951
Harley Davidson FL 1952
Harley Davidson FL 1953
Harley Davidson FL 1954
Harley Davidson FL 1955
Harley Davidson FL 1956
Harley Davidson FL 1957
Harley Davidson UL 1937
Harley Davidson UL 1938
Harley Davidson UL 1939
Harley Davidson UL 1940
Harley Davidson UL 1941
Harley Davidson UL 1942
Harley Davidson UL 1943
Harley Davidson UL 1944
Harley Davidson UL 1945
Harley Davidson UL 1946
Harley Davidson UL 1947
Harley Davidson UL 1948
