Knucklehead frame is an authentic reproduction of the factory style bull neck frames with numbered forgings seat post junction rear motor mount front motor mount and rear axle plates.

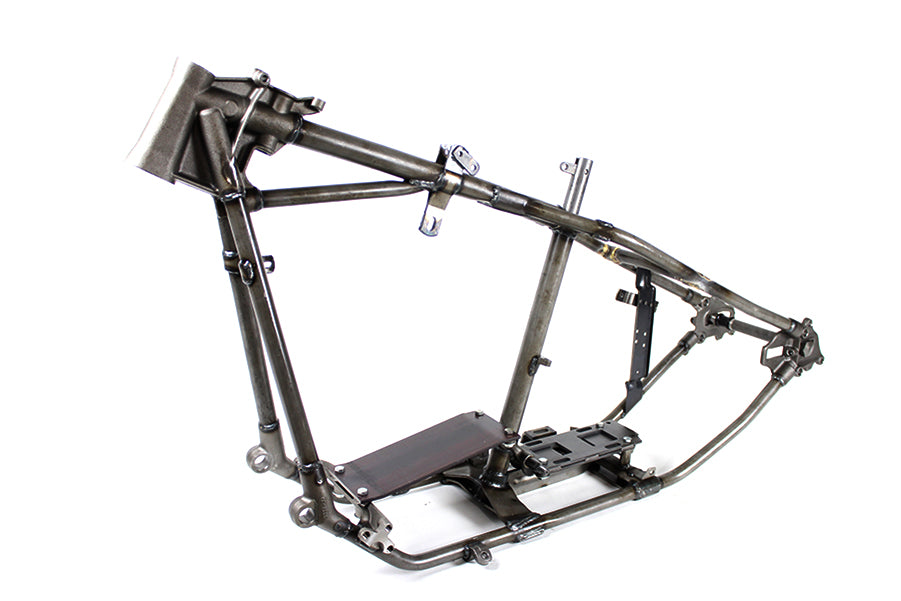

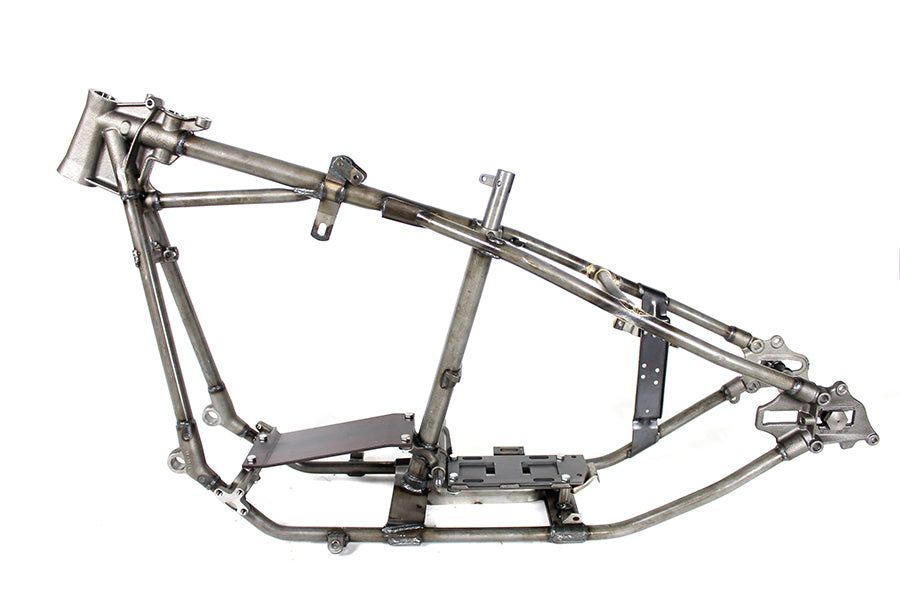

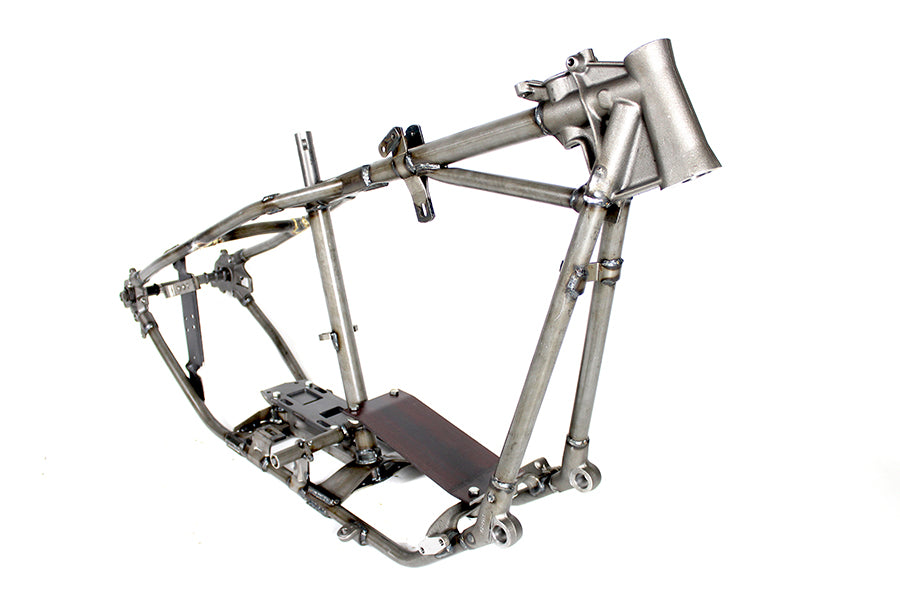

The V-Twin Replica Knucklehead 30° Rake Frame is designed for specified 1946–1947 Harley-Davidson FL, U, and EL applications. Its forged components include the neck, front and rear motor mounts, sidecar loops, and rear axle plates. The 30° neck angle accepts offset spring forks, while the top cross member across the rear legs is brazed in the style of original frames.
This frame includes the seat post, with seat post bushings, mechanical brake cross-shaft bushings, a correct toolbox mount, and grease fittings installed. The replica frame features forging hallmarks on many components, including the seat yoke, front motor mount, sidecar loops, rear axle plates, and transmission front and rear mounts. No serial numbers are stamped on the replica frame; V-Twin supplies a bill of sale referencing part number 51-1946.
For installation, mount the seat to the frame before installing the gas tanks, and place the 6320 washer between the tank and frame tab before mounting. Seat post and cross-shaft bushings may require further reaming for proper fit. V-Twin suggests using this frame with the #31-0406 Tool Box Two Hole Cross Bracket or #31-0412 Replica Tool Box Cross Bracket.
Features:
Application: Fits 1946–1947 Harley-Davidson FL, U, and EL models.
Rake: 30° neck angle accepts offset spring forks.
Forged Components: Includes the neck, front and rear motor mounts, sidecar loops, and rear axle plates.
Construction: Top cross member across the rear legs is brazed in the style of original frames.
Included Components: Seat post is included.
Installed Details: Seat post bushings, mechanical brake cross-shaft bushings, a correct toolbox mount, and grease fittings are installed.

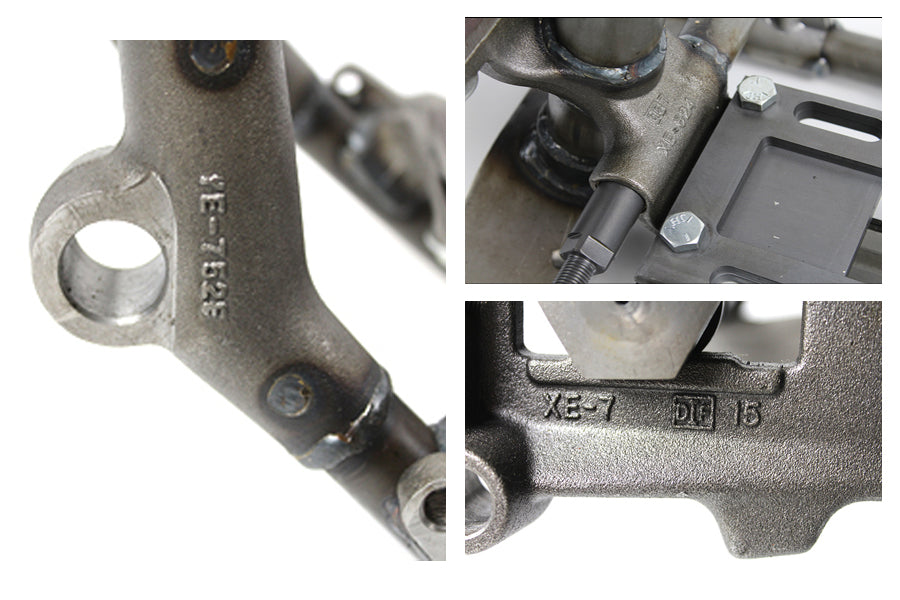

Forging Hallmarks: Hallmarks and marks are present on the seat yoke, front motor mount, sidecar loops, rear axle plates, and transmission front and rear mounts.
Documentation: V-Twin supplies a bill of sale referencing part number 51-1946.
Installation Note: Seat post and cross-shaft bushings may require further reaming for proper fit.
Recommended Accessories: Suggested for use with the #31-0406 Tool Box Two Hole Cross Bracket or #31-0412 Replica Tool Box Cross Bracket.
Fitment
Harley Davidson EL 1946
Harley Davidson EL 1947
Harley Davidson FL 1946
Harley Davidson FL 1947
Harley Davidson U 1946
Harley Davidson U 1947
