SKU:32-1770

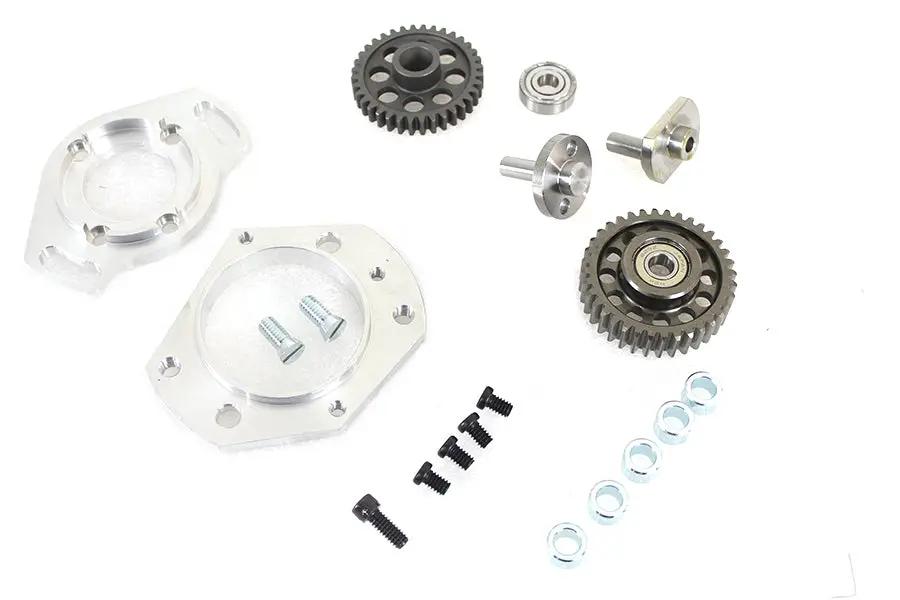

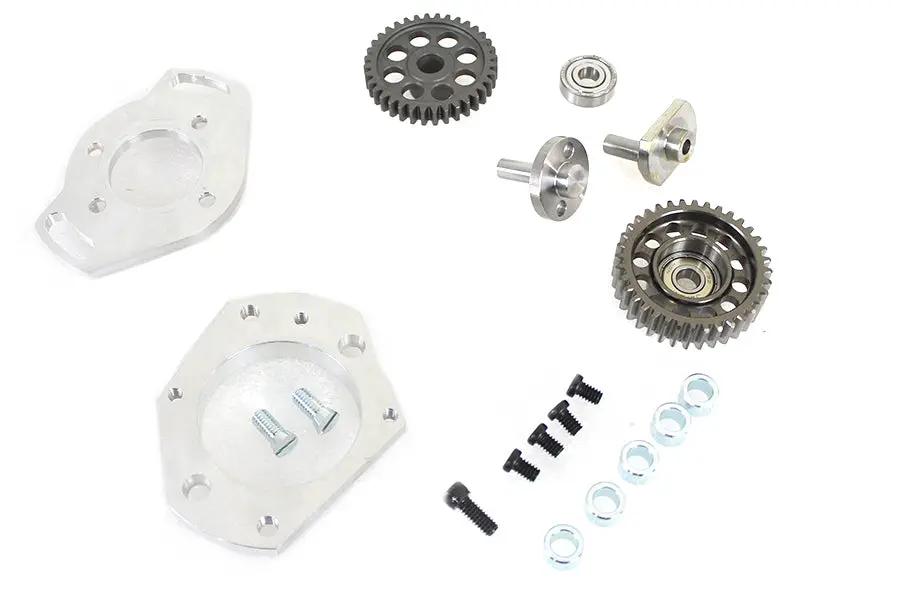

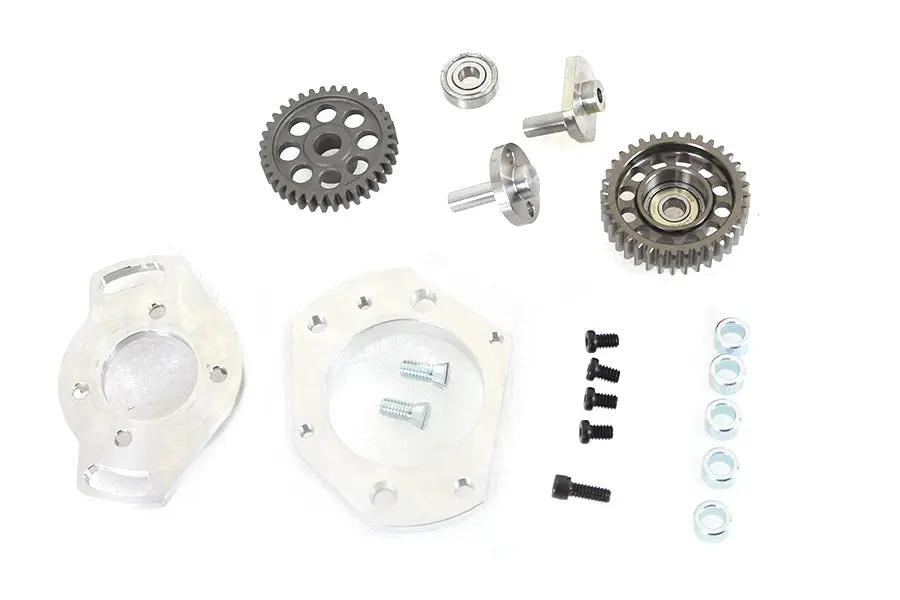

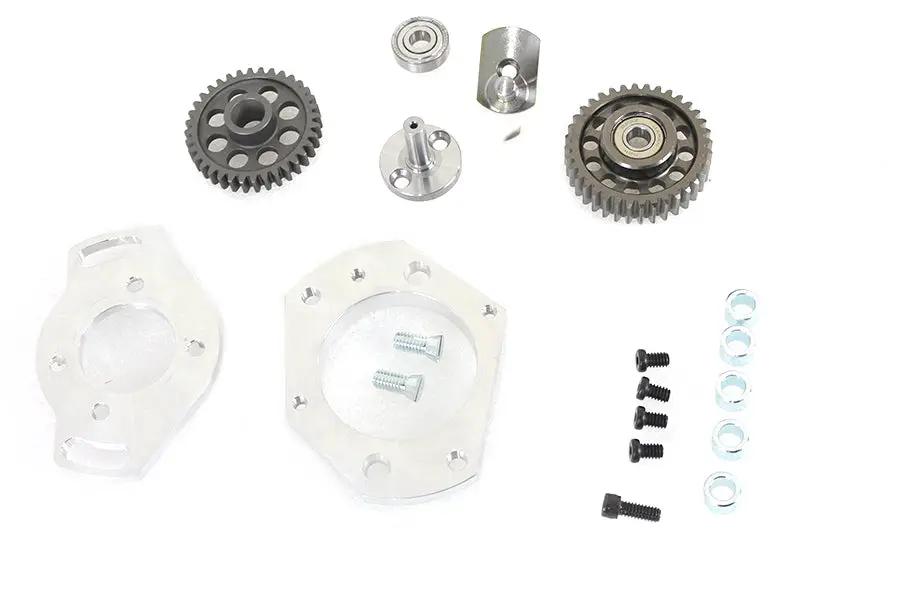

The V-Twin XR/XL/WR Magneto Drive Assembly is a complete kit that replaces the generator with a front-mount magneto on 45-inch Harley W engines, including gears and mount plates. Part Number 32-1770. Designed for Harley Davidson W models from 1936 to 1945, it provides a robust foundation for magneto-based ignition when restoring vintage powerplants.
Includes two idler gear spindles for XR and WR magneto systems and is designed for 45-inch W installations with the proper relocation of the idler stud within the engine case and cam cover. Crafted in Taiwan from durable materials, it is built for long-lasting performance in classic Harley restorations. The kit is compatible with a range of magneto components, including plates and spacers, and is intended to integrate with existing magneto mounting hardware. Note that the magneto itself is not included and must be sourced separately. Suggested accessory items to complement this kit include a fat bob ignition switch cover and a magneto mount kit.
Fitment highlights include Harley Davidson G, W, WR, and XR models across specific years, reflecting broad compatibility with classic engines while maintaining authentic mounting geometry for a front-mount magneto setup.
The V-Twin XR/XL/WR Magneto Drive Assembly (Part Number: 32-1770) is a comprehensive kit designed to fit Harley Davidson W models from 1936 to 1945. This assembly includes two idler gear spindles, with the standard XR magneto idler gear stud raw providing a robust foundation for your magneto system. The 45-inch WR idler gear stud spindle is suitable for 45-inch W installations, requiring relocation of the idler stud within the engine case and cam cover for proper fitment. Crafted in Taiwan, this kit ensures durability and reliable performance essential for vintage Harley Davidson restoration and maintenance.
Constructed to meet the specifications of classic Harley engines, this drive assembly offers compatibility with a range of magneto components, including the WR and XR models. The kit's design facilitates seamless integration with existing magneto mounting plates and spacer components. It's an ideal choice for enthusiasts seeking to restore or upgrade their vintage Harley W engines, ensuring smooth operation and longevity. Please note that the magneto itself is not included and must be sourced separately. The assembly's robust construction and precise fitment make it a reliable part of your engine rebuild or maintenance project.
Suggested accessory items to complement this kit include a fat bob ignition switch cover and a magneto mount kit, which can enhance the overall functionality and aesthetic of your vintage Harley Davidson engine. Whether you're performing a full restoration or a maintenance upgrade, the V-Twin XR/XL/WR Magneto Drive Assembly provides the quality and compatibility needed for authentic Harley Davidson restoration projects.
Features:
