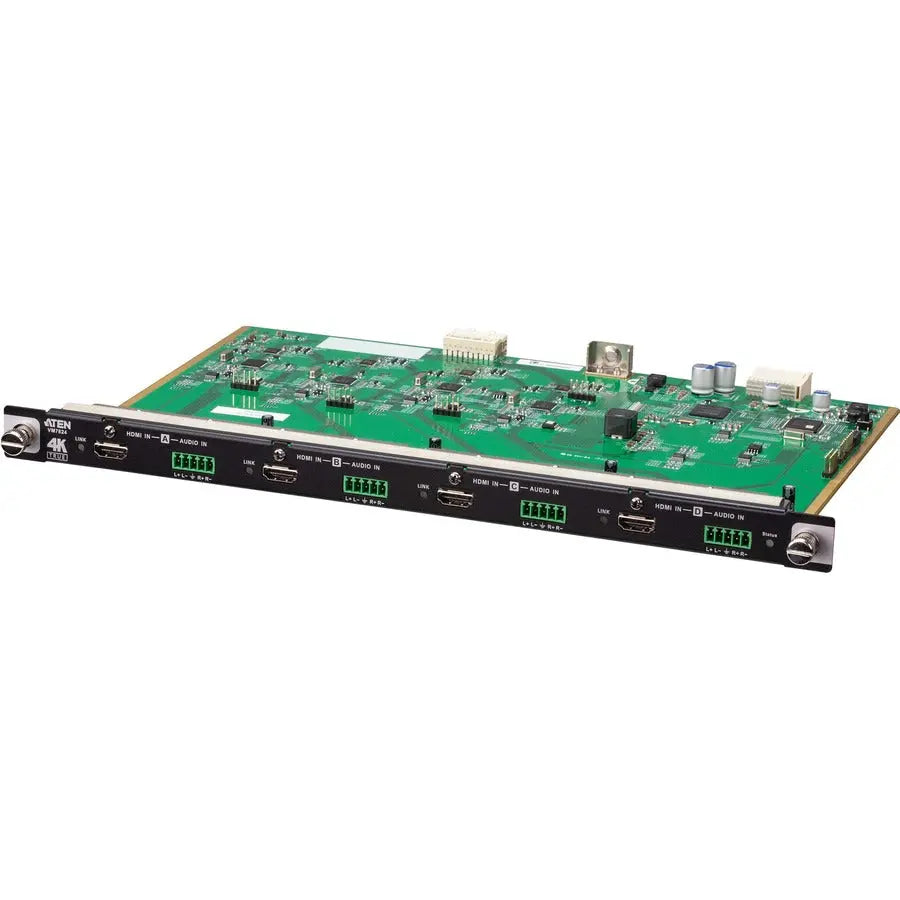

VanCryst VM7824 4-Port True 4K HDMI Input Board for ATEN Matrix Switches

The VanCryst VM7824 is a professional-grade, wall-mountable HDMI input module designed for seamless integration with ATEN modular matrix switch systems. Supporting four 4K HDMI inputs, this board delivers uncompressed video resolutions up to 3840 x 2160 / 4096 x 2160 at 60Hz (4:4:4), ensuring crystal-clear high-definition images for demanding video wall applications and professional AV installations. Its robust metal construction guarantees durability and reliable performance in various environments. The VM7824 features consumer electronics control (CEC) support, enabling integrated device control for a streamlined user experience. The HDMI interface supports 3D, Deep Color, and HDCP 2.2 compliance, ensuring compatibility with modern digital content and protected media streams. It also provides audio embedding and extraction capabilities, allowing HDMI audio to be embedded into the video signal or extracted for separate processing, enhancing audio-visual synchronization and flexibility. The module includes a cable quality tester to verify HDMI cable performance, helping maintain signal integrity across installations. Additionally, the VM7824 supports hot-swappable installation, offering system integrators quick and easy maintenance without downtime. Designed for versatile video wall configurations, it features a web GUI for creating custom layouts, and its built-in 4K scaler ensures seamless resolution adaptation across various displays. The inclusion of the FrameSync feature prevents image tearing by synchronizing the scaler output frame rate to the input signal, resulting in stable and continuous video streams. With support for the ATEN VM series and advanced technologies like Seamless Switch™, the VM7824 provides near-instantaneous switching, ensuring smooth transitions critical for live presentations and multi-display environments. Whether used in control rooms, conference centers, or digital signage setups, this input board offers the performance, flexibility, and reliability necessary for professional AV systems.

Features:

• Consumer Electronics Control (CEC) support for integrated device management

• Cable Quality Tester examines HDMI cable performance to ensure signal integrity

• Supports HDMI 3D, Deep Color, and HDCP 2.2 for modern high-definition content

• Audio-enabled interface allows HDMI audio extraction and stereo audio embedding

• FrameSync feature synchronizes scaler output frame rate with input to prevent image tearing

• True 4K EDID Expert dynamically selects optimal EDID settings for high-quality display output

• Video wall layout creation via intuitive web GUI for customized display configurations

• Seamless Switch™ technology provides near-zero second switching for continuous video streams

• Built-in 4K scaler adapts various output resolutions for seamless video wall integration

• Supports uncompressed video resolutions up to 3840 x 2160 / 4096 x 2160 at 60Hz (4:4:4)

• Compatible with ATEN VM Modular Matrix Switches for flexible AV system expansion
