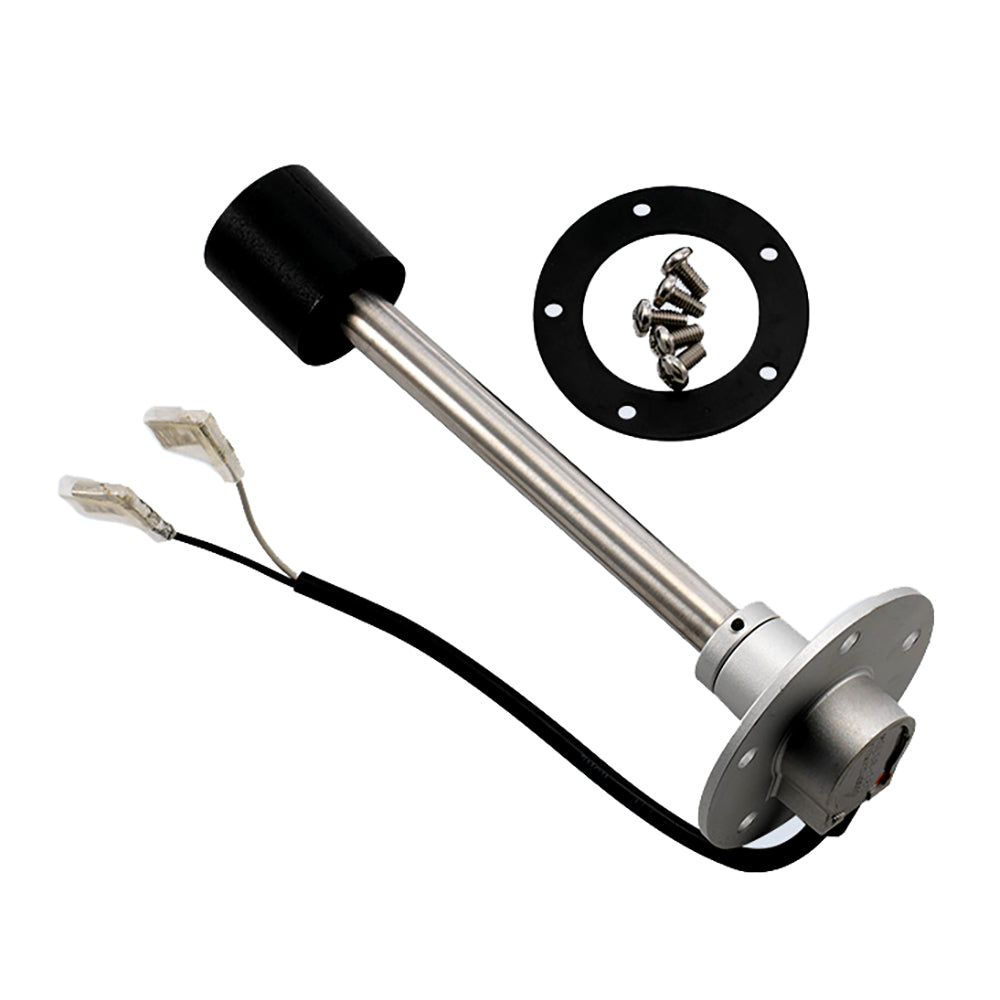

VDO Reed Switch Fuel Sender - 150 mm for Marine and Automotive Tanks

Reed Switch Fuel Sender - 150 MM

Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.

The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.

Features:

• Stainless steel construction
• Ethanol resistant Viton gasket
• 240-33 Ohm range
• Fits tanks with a depth of 6" (150mm)
• Insulated 1/4"" spade connectors
• Standard 5 hole mounting flange
• Works with most standard marine fuel gauges
• Ground - Floating
• Connection - Insulated .25" Spade

*Sold as an Individual

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The VDO Reed Switch Fuel Sender (Part Number 226-615) offers a reliable and innovative solution for measuring fuel levels in tanks up to 6 inches deep. Unlike traditional fuel senders that rely on rotating float arms and resistance cards, this floatless design eliminates moving parts, reducing wear and providing more consistent readings. Its tubular structure acts as a dampener, minimizing the effects of fuel slosh and ensuring stable pointer movement on your gauge. This makes it ideal for applications where space constraints prevent the use of conventional swing-arm sensors.

Features:

• Stainless steel construction ensures durability and resistance to corrosion

• Ethanol resistant Viton gasket provides a secure seal and chemical resistance

• Operates within a 240-33 Ohm range for compatibility with most gauges

• Designed for tanks with a depth of approximately 6 inches (150mm)

• Equipped with insulated 1/4 inch spade connectors for reliable electrical connections

• Standard SAE 5 hole mounting flange for easy installation

• Compatible with most standard marine fuel gauges

• Ground floating connection for improved stability

• Includes neoprene gasket and mounting hardware for a complete installation kit
