SKU:61645
The VDO Reed Switch Fuel Sender is a floatless, top-mounted sensor designed for tanks up to 9.2 inches deep (230 mm), delivering steady fuel level readings with a dampened tubular construction that reduces gauge jitter from fuel slosh.
Built to endure marine and automotive environments, it features stainless steel construction and an ethanol-resistant Viton gasket for reliable sealing. The sensor uses a 240-33 ohm resistance range, compatible with most standard marine fuel gauges, and employs insulated 1/4 inch spade connectors for a secure electrical connection. It adheres to a standard SAE 5-hole mounting flange and includes a neoprene gasket and mounting hardware for straightforward installation.
Key compatibility and installation notes: fits tanks up to 9.2 inches deep; ground-floating connection design helps ensure stable operation; sold as an individual unit.
Safety notice: California Prop 65 warning: This product can expose you to chemicals including lead which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

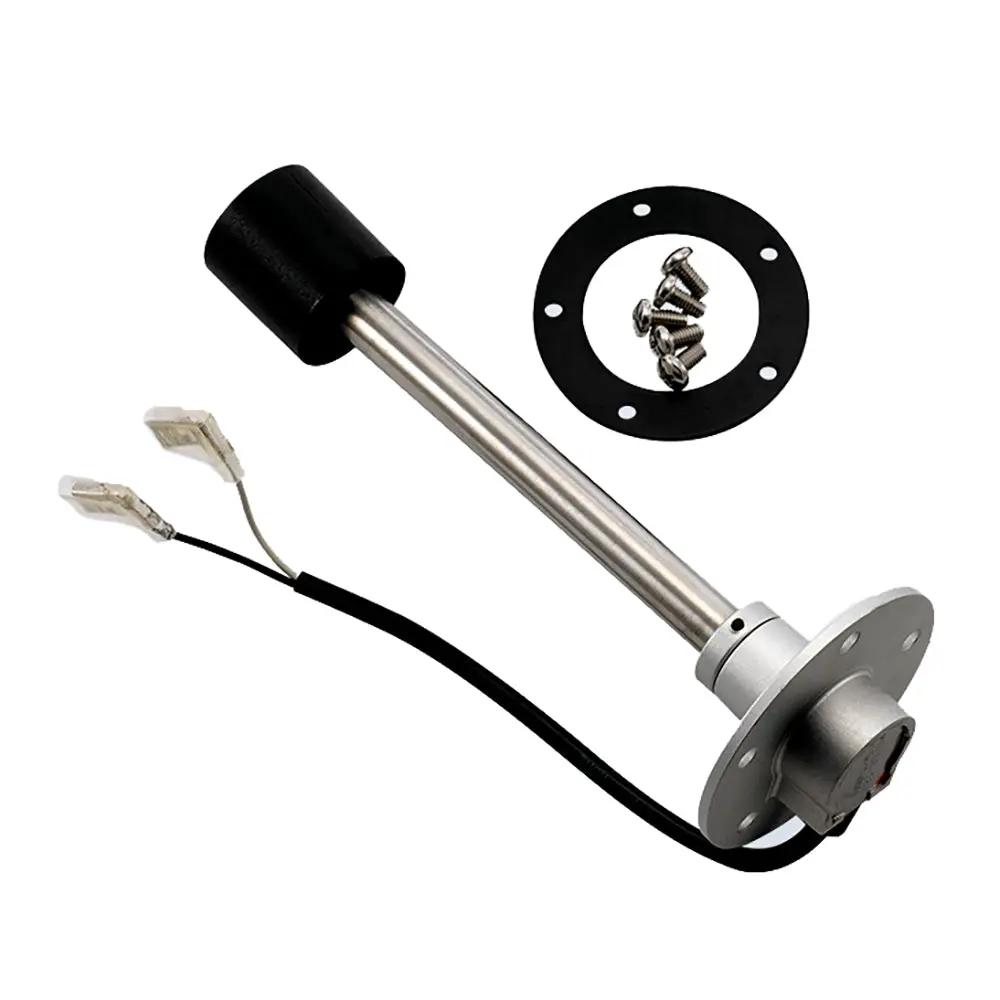

Reed Switch Fuel Sender - 230 MM
Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.
The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.
Features:
*Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The VDO Reed Switch Fuel Sender (Part Number 226-623) offers a reliable and maintenance-free solution for measuring fuel levels in tanks up to 9.2 inches deep. Unlike traditional float arm models, this floatless design eliminates side-to-side motion and wear points, thanks to its tubular construction and top-mounted configuration. This innovative approach reduces erratic gauge readings caused by fuel slosh and ensures consistent fuel level monitoring. Crafted from stainless steel, the sender is built for durability and corrosion resistance in demanding marine and automotive environments.
The unit features an ethanol-resistant Viton gasket, which provides a secure seal and prevents leaks when exposed to ethanol-blended fuels. The resistance range of 240-33 Ohms makes it compatible with most standard marine fuel gauges, facilitating easy installation. The sender utilizes insulated 1/4-inch spade connectors for a secure electrical connection and conforms to the standard SAE 5-hole mounting flange, simplifying the mounting process. Its ground-floating connection design helps prevent electrical issues and ensures stable operation. This product is sold individually and comes complete with mounting hardware and neoprene gasket for a straightforward installation process.
Whether used in marine or automotive applications, the VDO Reed Switch Fuel Sender provides accurate fuel level readings with minimal maintenance. Its stainless steel construction and ethanol-resistant gasket make it suitable for various fuel types and environmental conditions. This sender is ideal for tanks where clearance issues or wear concerns make traditional swing-arm senders impractical. Installing this sensor ensures more precise fuel monitoring, reducing the risk of running out of fuel unexpectedly and improving overall vehicle or vessel safety and performance.
Features:
