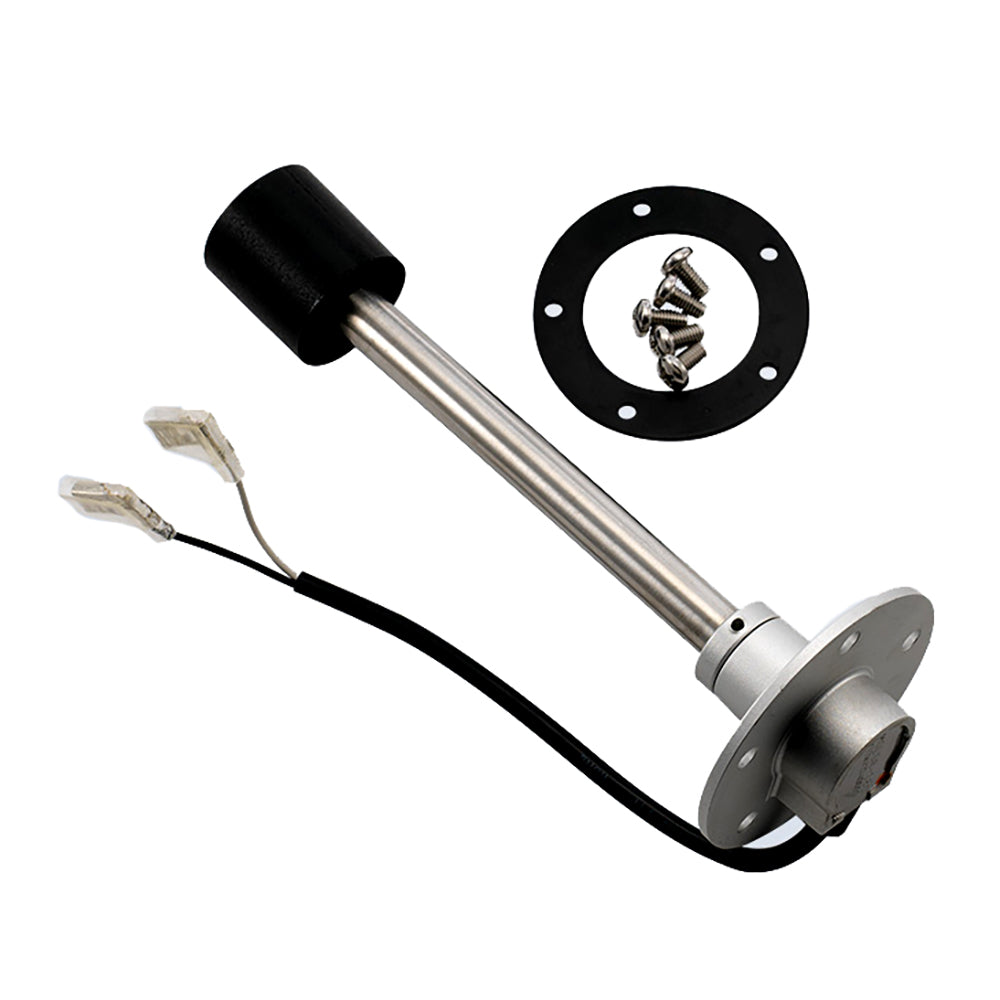

VDO Reed Switch Fuel Sender - 250mm for Marine and Automotive Use

Reed Switch Fuel Sender - 250mm

Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.

The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.

Features:

• Stainless steel construction
• Ethanol resistant Viton gasket
• 240-33 Ohm range
• Fits tanks with a depth of 10" (250mm)
• Insulated 1/4"" spade connectors
• Standard 5 hole mounting flange
• Works with most standard marine fuel gauges
• Ground - Floating
• Connection - Insulated .25" Spade

*Sold as an Individual

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The VDO Reed Switch Fuel Sender (Part Number: 226-625) offers a reliable and maintenance-free solution for measuring fuel levels in tanks up to 10 inches deep. Unlike traditional float-based sensors that utilize rotating arms and resistance cards, this innovative design employs a tubular, floatless sensor that provides precise readings without the risk of erratic pointer movements caused by fuel slosh. Its dampening tubular construction ensures stable gauge operation, making it ideal for applications with limited clearance where conventional swing-arm sensors cannot fit. The top-mounted design features a standard SAE 5-hole mounting flange, simplifying installation and replacement processes. Complete with a neoprene gasket and mounting hardware, this fuel sender guarantees a secure and leak-proof fit. Crafted from stainless steel and resistant to ethanol, the VDO fuel sender is built for durability in demanding marine and automotive environments. The unit's resistance range of 240-33 Ohms makes it compatible with most standard fuel gauges, ensuring seamless integration into existing systems. The insulated 1/4-inch spade connectors provide reliable electrical connections, with a ground-floating configuration that enhances safety and functionality. Designed for tanks with a depth of approximately 10 inches (250mm), this sensor is suitable for various fuel tank configurations, especially where space constraints are a concern. Please note, this product contains chemicals such as lead, which are recognized for potential health risks, and proper handling is advised. The VDO Reed Switch Fuel Sender combines advanced technology with robust construction to deliver accurate fuel level readings, reducing maintenance needs and enhancing system reliability.

Features:

• Stainless steel construction for durability and corrosion resistance

• Ethanol-resistant Viton gasket ensures longevity in fuel environments

• Resistance range of 240-33 Ohms for compatibility with most gauges

• Designed for tanks with a depth of approximately 10 inches (250mm)

• Insulated 1/4-inch spade connectors for secure electrical connections

• Standard 5-hole mounting flange for easy installation

• Compatible with most standard marine and automotive fuel gauges

• Ground-floating configuration for safe operation

• Floatless, tubular design prevents side-to-side motion and wear
