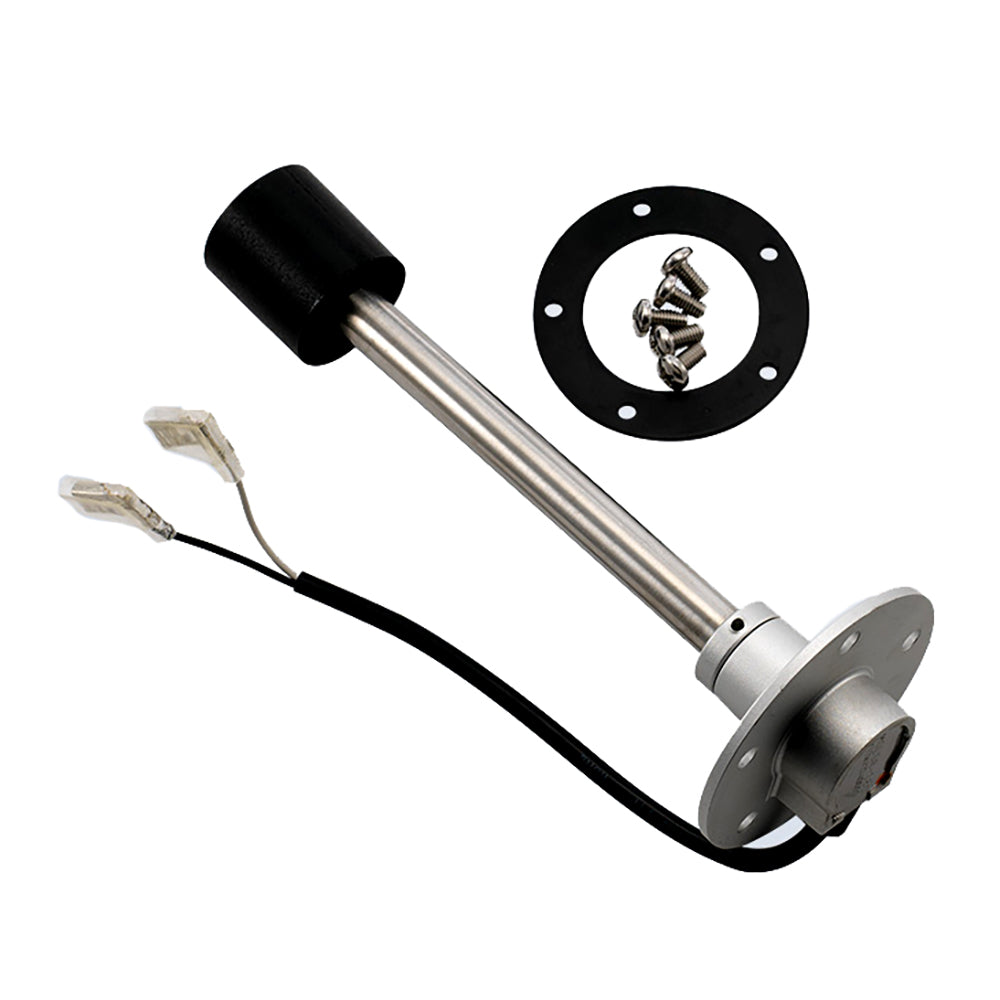

VDO Reed Switch Fuel Sender - 270 MM for Marine and Automotive Applications

Reed Switch Fuel Sender - 270 MM

Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.

The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.

Features:

• Stainless steel construction
• Ethanol resistant Viton gasket
• 240-33 Ohm range
• Fits tanks with a depth of 10.8" (270mm)
• Insulated 1/4"" spade connectors
• Standard 5 hole mounting flange
• Works with most standard marine fuel gauges
• Ground - Floating
• Connection - Insulated .25" Spade

*Sold as an Individual

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The VDO Reed Switch Fuel Sender, part number 226-627, is a reliable and innovative solution for measuring fuel levels in tanks with a depth of approximately 10.8 inches. Unlike traditional swing-arm fuel senders, this unit features a floatless tubular design that eliminates side-to-side motion, reducing wear and providing more accurate readings. Its dampening tubular structure helps prevent gauge pointer fluctuations caused by fuel slosh, ensuring consistent and precise fuel level measurements. The sender is top-mounted and compatible with standard SAE 5-hole mounting flanges, making installation straightforward with included neoprene gasket and hardware. Constructed from durable stainless steel, it offers excellent resistance to corrosion and harsh marine or automotive environments. The unit features ethanol-resistant Viton gasket seals and operates within a resistance range of 240-33 Ohms, making it compatible with most standard marine fuel gauges. Insulated 1/4-inch spade connectors facilitate secure electrical connections. This product is designed to be ground-floating and connection-insulated, ensuring safe and reliable operation across different applications. Suitable for both marine and automotive use, the VDO Reed Switch Fuel Sender provides a maintenance-free, long-lasting alternative to traditional fuel level sensors, enhancing the accuracy and reliability of your fuel monitoring system.

Features:

• Stainless steel construction for durability and corrosion resistance

• Ethanol resistant Viton gasket for reliable sealing in fuel environments

• Resistance range of 240-33 Ohms for compatibility with most fuel gauges

• Designed for tanks with a depth of approximately 10.8 inches (270 mm)

• Insulated 1/4-inch spade connectors for secure electrical connections

• Standard SAE 5-hole mounting flange for easy installation

• Compatible with most standard marine and automotive fuel gauges

• Ground-floating design for safe operation

• Includes neoprene gasket and mounting hardware for installation
